Is this a uni joint?



Page 1 of 1 [ 12 posts ]


 Post subject: Is this a uni joint?
Posted: Sun Mar 21, 2010 4:45 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

is the sound im getting a bad universal joint?
As i brake I get a thunk coming from around the diff area, usually happens when i am braking semi hard.
Same clunk when i go from Drive to reverse, or vise versa.
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 5:43 pm
Smokin em up
Offline

Posts: 266

Joined: 1st Sep 2007

Location: melbourne
VIC, Australia

[quote="jrloz"]is the sound im getting a bad universal joint?
As i brake I get a thunk coming from around the diff area, usually happens when i am braking semi hard.
Same clunk when i go from Drive to reverse, or vise versa

Mate
Depending on th K's the car has done it could be the backlash in the diff. To check raise the car and grab one hand on the diff flange and the other on the tail shaft hold the flange and turn the driveshaft if there is movement change the universal also check the front universal. if no movement the diff needs re shimming

gassa



_________________

When the clutch drops the bull s**t stops!!!!!

Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 5:49 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

Ahk cheers!.
Have only had the car for about 25-30 thousand but it has done 200.
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Also check brakes, and trailing arm bushes, too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 8:20 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

Breaks are all good, had them replaced since i bought the car. The sound was there when i bought it.

Trailing arm bushes? Im guessing they are the same as control arm bushes on other cars? Where the arm attaches to the car body?
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3448

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

I don't mean to be silly here but, are you SURE it is from the Rear? It might be from the front as Eseries are prone to work out strut rod bushes on the K frame.

And yes, the Trailing arms are the locaters of the Diff, there are 2 uppers and 2 lowers.
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 9:51 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

95% sure. If it helps i get a bit of a jolt to go along with the nasty sound lol.
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Sun Mar 21, 2010 10:13 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Papa Smurf wrote:
I don't mean to be silly here but, are you SURE it is from the Rear? It might be from the front as Eseries are prone to work out strut rod bushes on the K frame.

And yes, the Trailing arms are the locaters of the Diff, there are 2 uppers and 2 lowers.

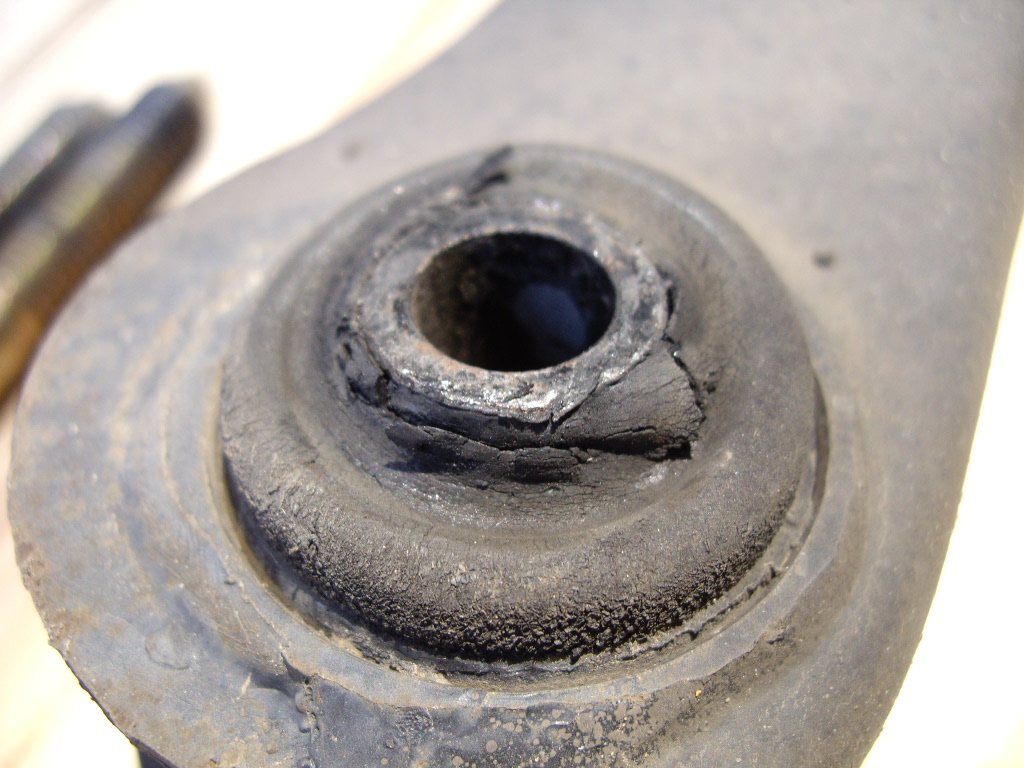

8 bushes in all........usually the ones that go 1st are the ones on the top trailing arms where they meet the body.
This is an example....from my ED.





Attachments:
IMGP3162.JPG [ 285.52 KiB | Viewed 41 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Mon Mar 22, 2010 10:13 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 863

Joined: 26th Nov 2007

Gallery: 20 images

Ride: XH Ute / AU3 V8 Wagon

Location: Bris-Vegas
QLD, Australia

jrloz wrote:
is the sound im getting a bad universal joint?
As i brake I get a thunk coming from around the diff area, usually happens when i am braking semi hard.
Same clunk when i go from Drive to reverse, or vise versa.


Check for loose bowling balls in the boot! :D



_________________

Yes, I own a Ute. No, I won't help you move!

EL Wagon Build Thread http://www.fordmods.com/the-garage-f53/sooty72-s-ef-futura-wagon-long-term-project-t90025.html
XH Ute Thread http://www.fordmods.com/post1138970.html#p1138970

Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Mon Mar 22, 2010 4:33 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

Na the bowling balls in my boot are all tied down :P
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Mon Mar 22, 2010 6:12 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

Any tips for checking the trailing arms?
As they are fairly hard to check.

GASSA wrote:
Depending on th K's the car has done it could be the backlash in the diff. To check raise the car and grab one hand on the diff flange and the other on the tail shaft hold the flange and turn the driveshaft if there is movement change the universal also check the front universal.


Checked the rear and there seems to be no play in the uni joint. Seems to be a bit in the diff though.
Front there is a little bit of play, maybe a mm im able to move it back and forth.
Top
 Profile


 Post subject: Re: Is this a uni joint?
Posted: Mon Mar 22, 2010 6:43 pm
Smokin em up
Offline

Posts: 299

Joined: 19th Aug 2007

Location: Port Augusta
SA, Australia

Sound seems to be coming from the Diff as far as my ear can pick up.
