Knock when taking off from lights and gearing down.



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 5:50 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Hey Guys,

I got a BA Falcon V8, when i give it a bit off the line i hear a knock like something is loose, it only knocks once at the exact same time it takes off. and it also does it when i chuck it in a lower gear. The gearbox has 40K on it, and the rear shocks have been replaced. Would it be the diff bush?

Anyone have this problem before or ideas what it might be? I don't trust Ford as far as i could throw them, theyll probably try sell me a flux capacitor or something.

Thanks in advance,



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 5:58 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

does sound like diff bushes. they clunk when the diff changes position if you know what i mean.



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 6:31 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Yeah im hoping its just a bush as they arent expensive. Where bouts are they anyway? at the back of the diff in the center?



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 6:32 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

afaik to do the diff bushes you have to drop the whole diff cage



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 6:52 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Typical Ford. I swear they design them so they can rob you for maximum labour when s**t breaks. And if you talking bout the part i think you are, you need a hoist to remove the whole IRS Cradle.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 7:13 pm
Smokin em up
Offline
User avatar

Age: 24

Posts: 228

Joined: 21st Jan 2009

Gallery: 3 images

Ride: 97 el falcon

Location: Melbourne
VIC, Australia

yeh whole irs has to come out, best to do all 3 at the same time while you've got the irs out
Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Tue Dec 07, 2010 7:37 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Yeah, i want to do the diff ratio and lsd but dont have the money so it looks like it will be collecting dust in the garage for the next six months while i save the money. No point doing the bushes then taking it all out again to do the ratio and LSD. This car has been the biggest POS lemon man. If i spent as much on mods as i did fixing it, it would be doing 10's by now.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 9:20 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1149

Joined: 15th Apr 2009

Gallery: 22 images

Ride: 2013 Ford Focus ST

Power: 175 rwkw

Location: North West Sydney
NSW, Australia

Mine does exactly the same mate, not every time from the lights but you definitley hear/feel a thud from the centre of the car at times, not so much when gearing down only on take off and only if taking off slowish, i got an auto



_________________

I hate arriving at my destination as then I have to get out of my car!

New Build Thread
the-garage-f53/the-beast-v2-0-phil-s-2013-ford-focus-st-t122703.html

Old Build Thread
the-garage-f53/phil-s-bf-sr-gt-build-thread-lots-of-pics-t98705.html

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 12:51 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

phil545 wrote:
Mine does exactly the same mate, not every time from the lights but you definitley hear/feel a thud from the centre of the car at times, not so much when gearing down only on take off and only if taking off slowish, i got an auto


Yeah could be the same thing aye, i reckon its my diff bush. Had a peek under the car just then and it "looks" flogged, just gotta get someone else to chuck it in and out of drive while im lookin at the diff to see if it moves heaps then ill know if its broken or not.

Found this on the net though. Would love to know how he got the camera to stay there haha.

http://www.vimeo.com/5447798



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 1:27 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1149

Joined: 15th Apr 2009

Gallery: 22 images

Ride: 2013 Ford Focus ST

Power: 175 rwkw

Location: North West Sydney
NSW, Australia

Sorry mate can you post a pic of where to look for the worn diff bush, damn work computer doesnt have flash so i can't watch the video.

Cheers

Phil



_________________

I hate arriving at my destination as then I have to get out of my car!

New Build Thread
the-garage-f53/the-beast-v2-0-phil-s-2013-ford-focus-st-t122703.html

Old Build Thread
the-garage-f53/phil-s-bf-sr-gt-build-thread-lots-of-pics-t98705.html

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 5:45 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Hey Mate,

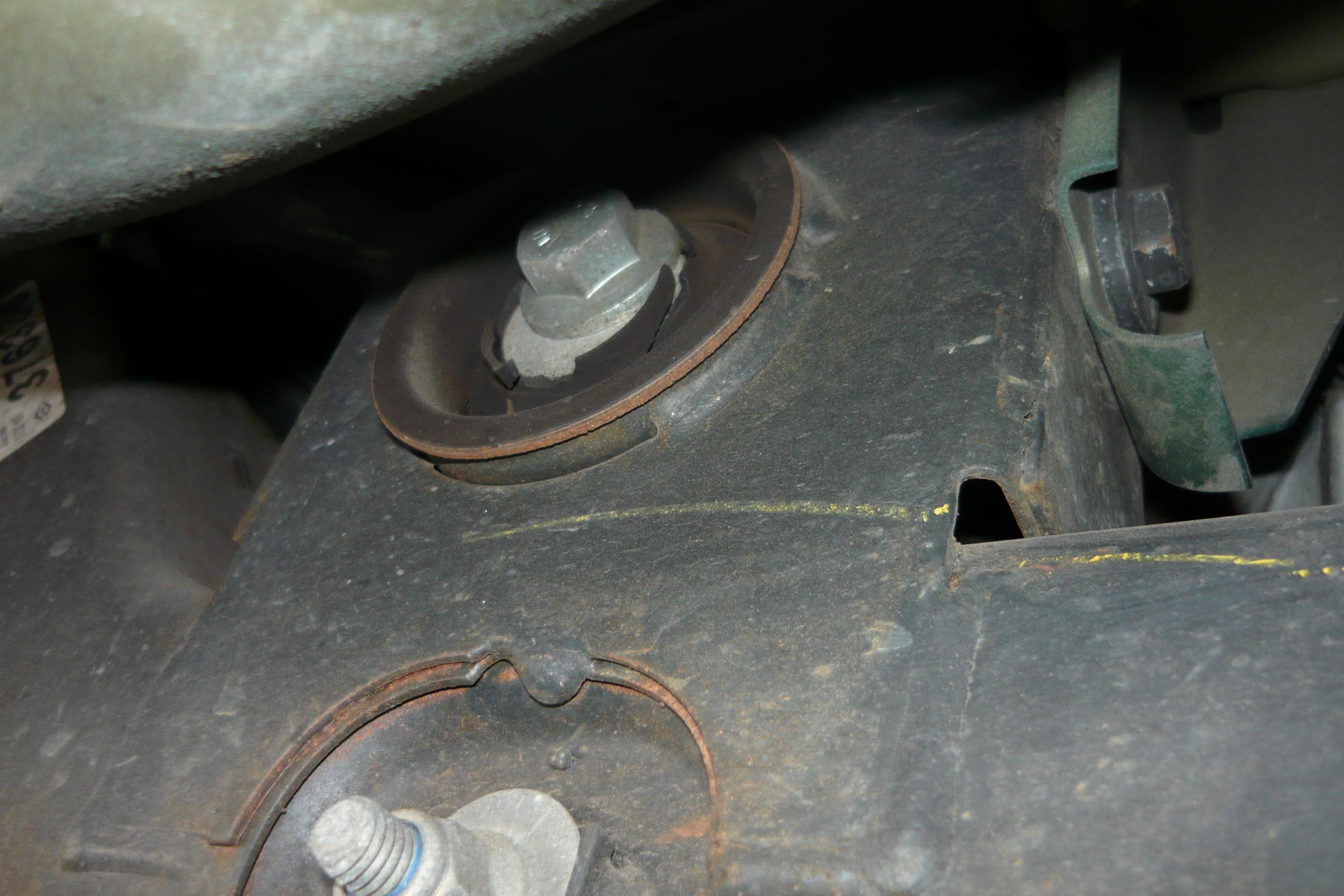

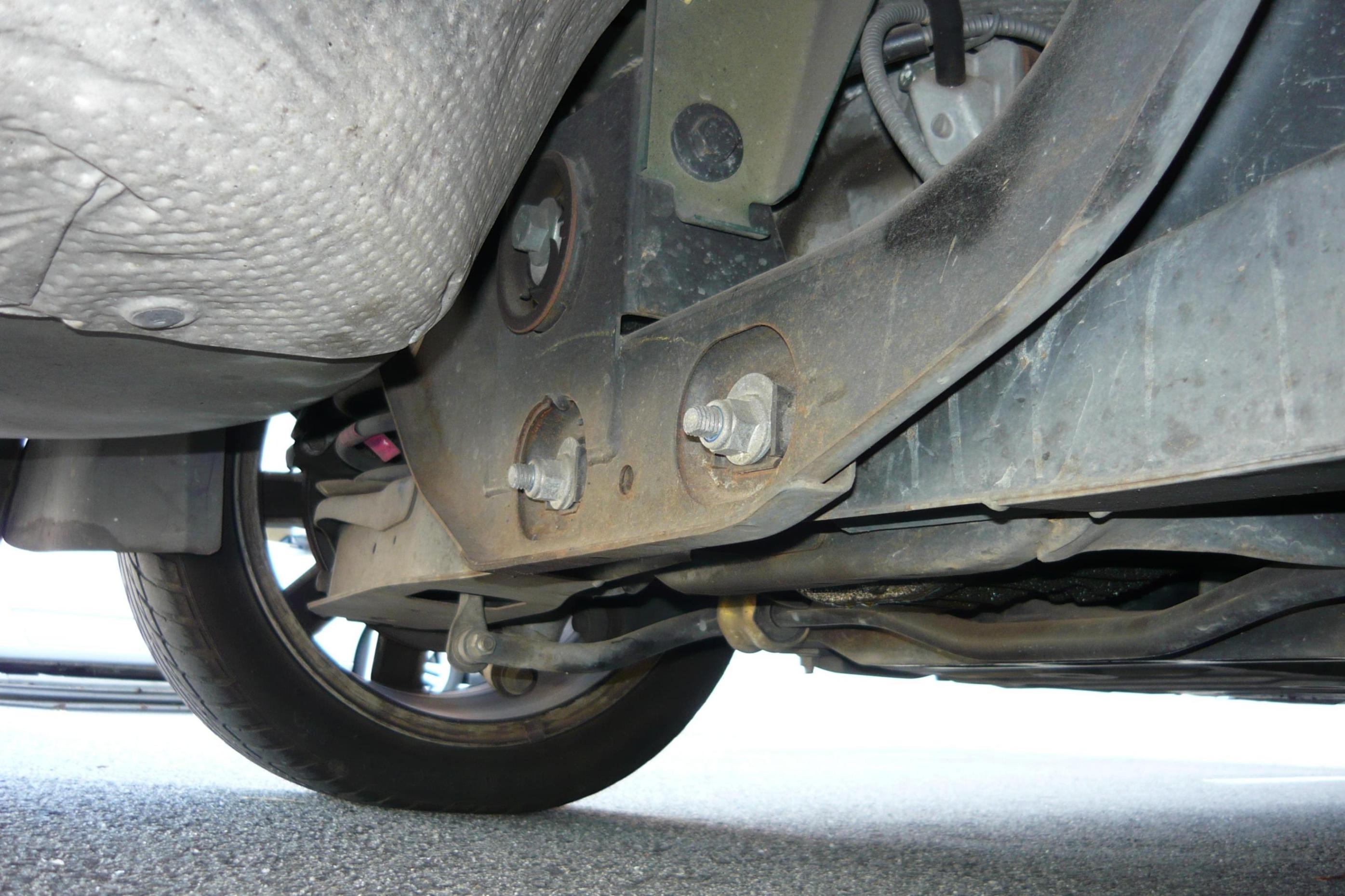

You see that centre nut at the top? That's where the diff bush is, it moves up and down alot if the diff bush is gone. But im not sure what would be considered "normal", so if in doubt take it to a diff specialist.





Attachments:
P1000583.JPG [ 481.72 KiB | Viewed 272 times ]
P1000586.JPG [ 431.59 KiB | Viewed 103 times ]



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 6:13 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1149

Joined: 15th Apr 2009

Gallery: 22 images

Ride: 2013 Ford Focus ST

Power: 175 rwkw

Location: North West Sydney
NSW, Australia

ahh ok thanks heaps for the pics, im gunna go check mine now :-)

edit - just watched video - so the bolt isnt meant to move at all? if it does then you got a worn diff bush?



_________________

I hate arriving at my destination as then I have to get out of my car!

New Build Thread
the-garage-f53/the-beast-v2-0-phil-s-2013-ford-focus-st-t122703.html

Old Build Thread
the-garage-f53/phil-s-bf-sr-gt-build-thread-lots-of-pics-t98705.html

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 6:57 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

phil545 wrote:
edit - just watched video - so the bolt isnt meant to move at all? if it does then you got a worn diff bush?


Yeah i spoke to the diff bloke, and according to him on the BA's its not supposed to move at all.

Have a good look through this thread aswell, they talk about control blade bushes, sway bar bushes and the side diff bushes. and are a couple of examples/symptoms of both.

http://www.fordforums.com.au/showthread ... ge=1&pp=30

Personally, im going to get every bush in the back end done while they have the IRS out, putting in an LSD and 3.9 gears at the same time too. Should set me back $3650 all up fitted. Then hopefully that dam IRS never has to come apart again. Getting ontop of this cars design flaws is sending me broke.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1149

Joined: 15th Apr 2009

Gallery: 22 images

Ride: 2013 Ford Focus ST

Power: 175 rwkw

Location: North West Sydney
NSW, Australia

ahhh thanks for the read mate, well i got under the rear and just had a look and what the hell, mine doesn't look like your pics or the video, there is this weird bell shaped cover so I can't see if the bolt is moving - this normal? mine is a BF but I doubt they would put this in between the BA and BF




_________________

I hate arriving at my destination as then I have to get out of my car!

New Build Thread
the-garage-f53/the-beast-v2-0-phil-s-2013-ford-focus-st-t122703.html

Old Build Thread
the-garage-f53/phil-s-bf-sr-gt-build-thread-lots-of-pics-t98705.html

Top
 Profile


 Post subject: Re: Knock when taking off from lights and gearing down.
Posted: Wed Dec 08, 2010 7:57 pm
Smokin em up
Offline
User avatar

Age: 24

Posts: 228

Joined: 21st Jan 2009

Gallery: 3 images

Ride: 97 el falcon

Location: Melbourne
VIC, Australia

yeh definately normal. the best way to check if i need to replace diff bushes is to get a pry bar, wedge it in towards the bottom of the diff and move it up and down. whilst doing this check to see if your diff bushes are split (rubber bushes) or have heaps of movement (metal bushes)
Top
