 Post subject: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 5:41 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Hi guys and gals,

My son just bought an AU3 Forte wagon (keeping the family all Falcon). It was already lowered with lowering blocks when he bought it. Now something attached to his leaf spring plate is touching the inside of his wheel. My EF wagon has nothing like it, and I'm struggling to identify it. Could the lowering blocks be causing the problem? Does he need to go to smaller lowering blocks?

Thanks for your help.

Attachment:

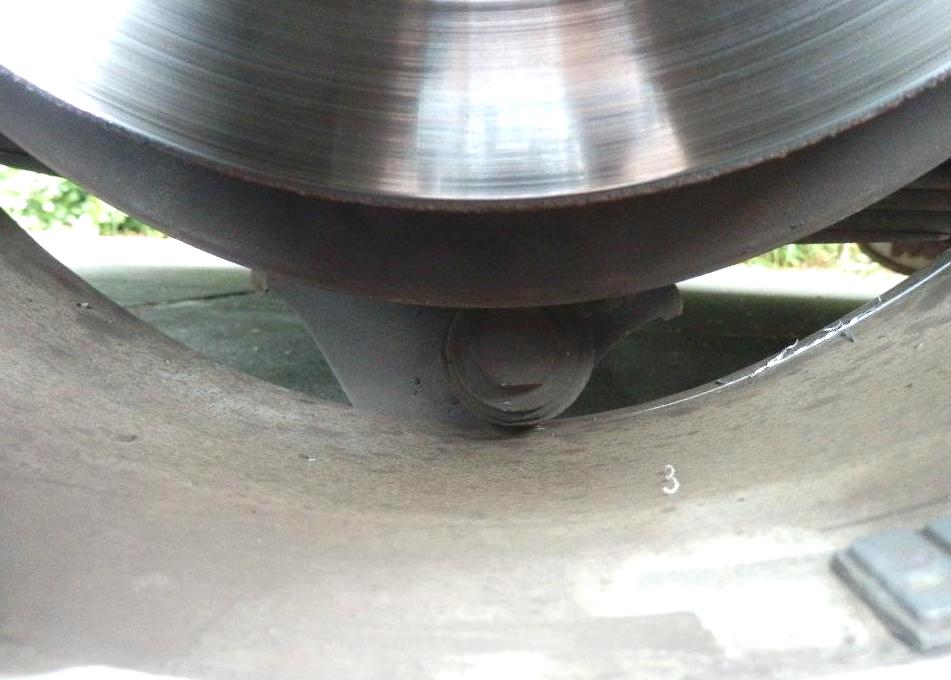

chris wheel 1.JPG
chris wheel 1.JPG [ 66.68 KiB | Viewed 17 times ]


Attachment:

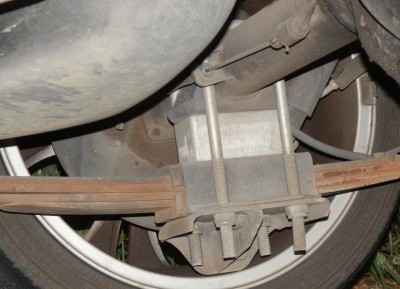

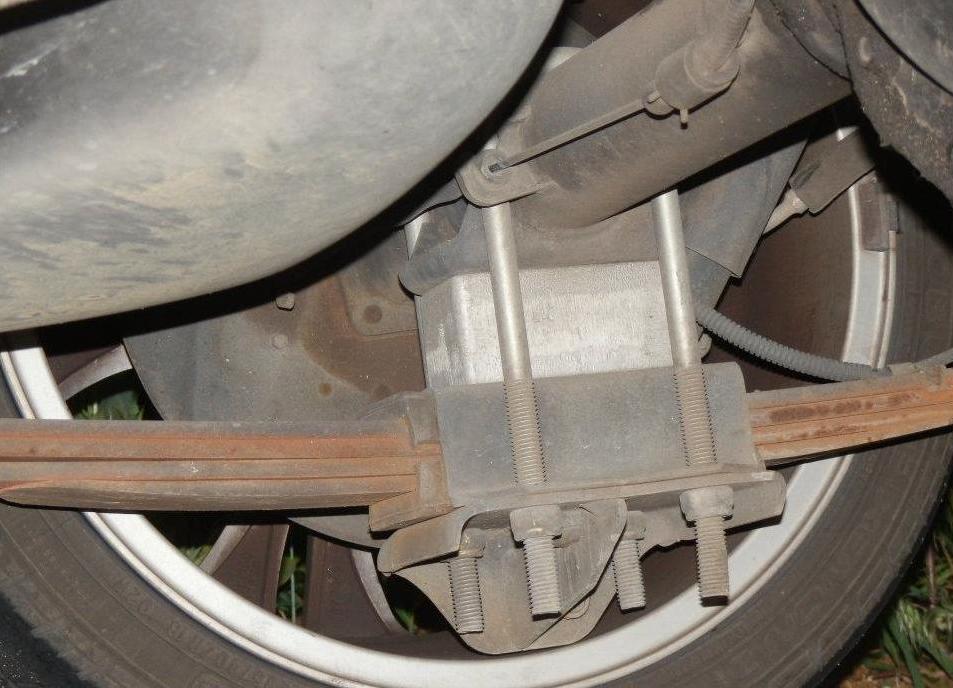

chris wheel 2.JPG
chris wheel 2.JPG [ 87.19 KiB | Viewed 34 times ]



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 5:53 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

smaller lowering blocks. the block is causing the hub to scrub out. only ½ an inch raised would stop this.



_________________


I have a car.

Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 7:21 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

no bigger than a 1" block in the back of an AU onwards wagon/ute unless you want big wheels.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 7:25 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Thanks for that. What is that bolt attached to? Is that the lower shock mount? Unfortunately, he's in Perth and I'm in Auckland, so I can't take a look at it myself.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 7:28 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

thats the lower shock mount ...
Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Tue Oct 25, 2011 7:59 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Thanks for all the help. Looks like it's slightly smaller lowering blocks, then. He'll probably need the clearance anyway when he fills the back with all his gear.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Leaf spring plate interfering with wheel - AU3 wagon
Posted: Wed Oct 26, 2011 1:52 pm
Fordmods Newbie
Offline

Posts: 1

Joined: 10th Sep 2011

Ride: Mazda MX5

Location: Armadale
WA, Australia

Thanks everybody, this is my new wagon mentioned above.

I'm trying to replace the supplied aftermarket 18"s with AUII XR8 17"s, to improve the ride quality. I could see it was the shock mount interfering with the 17"s but neglected to tell Dad that.

Looking around for shorter lowering blocks...
