ok ! i have gotten a price on this unit ! and i now have some more questions !
has someone got a picture of a spider gear as mentioned earlier in this thread !apparently it gets stripped out on installation of the lokka!
and if this lokka is to be fitted with a standard diff centre " do they make non lsd centres that are around the 3.45 or 3.71 ratio and are they strong .

is it rite that i dont need a lsd now ! or is it that this product wont mechanicaly fit on a lsd.
if i have missed anything please bring it to my attention. thanks peety. :D
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 6:26 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

peetys here wrote:
ok ! i have gotten a price on this unit ! and i now have some more questions !
has someone got a picture of a spider gear as mentioned earlier in this thread !apparently it gets stripped out on installation of the lokka!
and if this lokka is to be fitted with a standard diff centre " do they make non lsd centres that are around the 3.45 or 3.71 ratio and are they strong .

is it rite that i dont need a lsd now ! or is it that this product wont mechanicaly fit on a lsd.
if i have missed anything please bring it to my attention. thanks peety. :D

I have my Lokka in the factory 3.45 gears, my car came with a LSD factory fitted. You don't need a LSD, this replaces everything inside the standard open centre carrier.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 6:33 pm
Stock as a Rock
Offline

Age: 107

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

i know i sound dumb ! but what do you meen by replaces "everything inside the open diff centre "
surely i still keep the s**t 3.08 centre thats in it at the moment. :shock:
as pauline hanson once said ! PLEASE EXPLAIN !!
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 7:13 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

You can run whatever gears on it you wish , that will fit into the AU housing.
You dont need a LSD centre as the lokka replaces the internals in a standard single spinner housing.
You can fit the locker with your standard gears and chnage the ratio later on but you are paying two lots of labour for the same thing.
To have it all fitted try Bears Gearbox and Differential Reconditioning in Dunheved. Not exactly cheap , but quality service.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 7:13 pm
Stock as a Rock
Offline

Age: 107

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

if i am to purchase the lokka diff ! what is the easiest way to work out the 1 i need.
i own the base model 4ltr 1999 au auto ( stock ) ! what would be the axle spline's 25 ! or 28 !
2 pinion or 4 !
or should i go to my mechanic and get him to make sure of everything before i order. :(
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 7:14 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

The AU will be a 28 spline 4 pinion diff.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 7:16 pm
Stock as a Rock
Offline

Age: 107

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

thanks evil.
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Tue Mar 16, 2010 7:18 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Ok...

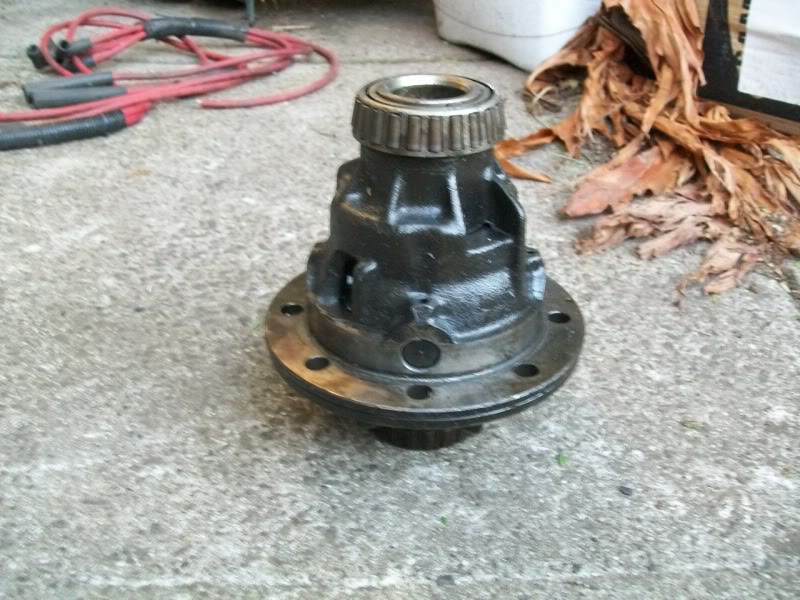

Under the hat on the back of the diff... There is a carrier inside... Thanks to a for sale thread here is a carrier out of a non LSD:
