Posted: Sun Jul 08, 2007 9:16 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

my front shockies n springs came pre loaded on a big arm thing with bold holes on the bottom and the round pad at the top with 3 bolts and the thing in the middle. for the back springs, do they just slide out or they guna be a pain in the a** and pop out? cheers



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 6:03 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

the front spings already have the arm thing attached, will the job still be a mission? how long should this take roughly?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 6:08 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

XFWAGON wrote:
the front spings already have the arm thing attached, will the job still be a mission? how long should this take roughly?


what arm thing? my mate and i got a NA fairlane done in under 2 hours but we knew what to do



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Mon Jul 09, 2007 6:31 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

umm the thing which the shockie and spring are attached to, it has 2 bolt holes at the bottom end and 3 at the top on a round pad.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 6:56 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

so you have the complete strut setup?



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Mon Jul 09, 2007 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

yep, thts the word i was looking for. front strut setup



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

yep, thts the word i was looking for. front strut setup



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 7:00 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

well then it does make it easier. you unbolt the one thats in there and swap them over. but there is a bolt you have to undo to allow the rest of the gear under there to drop enough to get it out. ill find you a pic and highlight the bits that need doing



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Mon Jul 09, 2007 7:02 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

wicked, cheers for ya help :)



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


Posted: Mon Jul 09, 2007 7:12 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

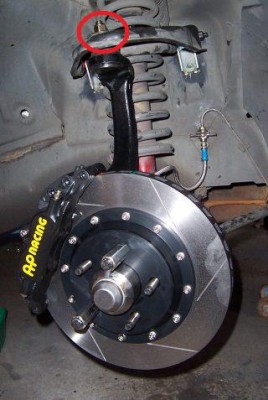

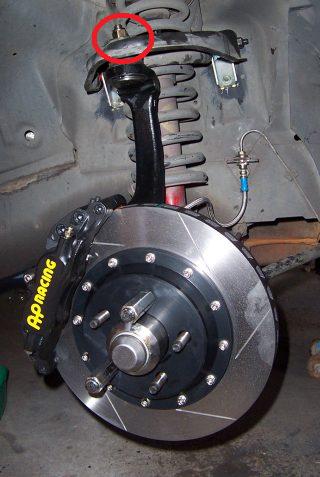

ok obviously you know the 3 bolts at the top. the 1 bolt on the bottom and the other one you have to undo is in the pic i posted with this reply.

obviously not a stock brake setup but its off an E series. you have to undo the clip then the bolt and use a ball joint breaker to remove the items apart. then the whole brake setup will drop and with a little moving and thinking you can just remove the strut setup and bolt in your new setup and rebolt it up :)





Attachments:
File comment: this bolt
bigbrakes11.jpg [ 36.16 KiB | Viewed 19 times ]



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Mon Jul 09, 2007 11:55 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

Why pop the ball joint? I hope your fitting camber kits?
Undo the 2 bolts on the brake caliper and remove from the disk rotor.
Undo the top pivots via the 4 nuts inside the engine bay and the whole lot will swing out of the way.
This also means that you olnly have 2 more nuts and bolts to undo to fit the kits.



_________________

Member Number 8804

Top
 Profile


Posted: Mon Jul 09, 2007 11:58 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

ball joint had tension... id hate to be sitting there when the last bolt comes off... it would go straight for your head... id prefere my way. alot safer and its only 1 bolt and very easy



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue Jul 10, 2007 12:00 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

There is no load at all.



_________________

Member Number 8804

Top
 Profile


Posted: Tue Jul 10, 2007 12:04 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

The 4 Nuts for the top pivots are on the upper control arm.



_________________

Member Number 8804

Top
 Profile


Posted: Tue Jul 10, 2007 7:39 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

no im not fitting a camber kit, dont need to as they are only lows, not superlows.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile
