hey guys

making a diff with a ebs1 diff 28 spline and i have a fairlane lsd center and i have put it ogether and i cant get the short axel in by 20mm just wont go in any one know why this could happen.



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 3:10 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

The axle need to pass both the cone and the spider on each side before it seats. You need to spin the axle to align the splines.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Jan 17, 2007 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

one side goes in fully and the other sticks out 20mm ate axels different from abs and non lsd and lsd



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 4:02 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

The axles are different lengths from side to side but not from E series to E series (ABS or not) I would think. As I said you need to turn the axle in the housing against the force of the LSD while pushing it in.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Jan 17, 2007 4:29 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

this is what it looks like now but im guessing i have to put it in 5th then twist and push till it goes in

hope the pics help as they say 1000words





Attachments:

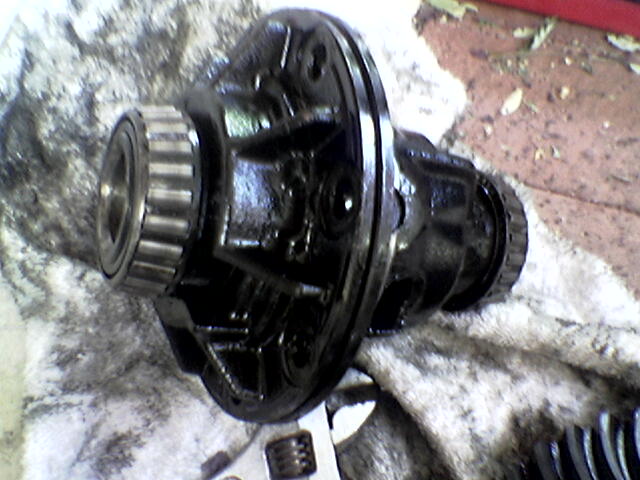

File comment: old center
1149.jpg [ 54.32 KiB | Viewed 23 times ]

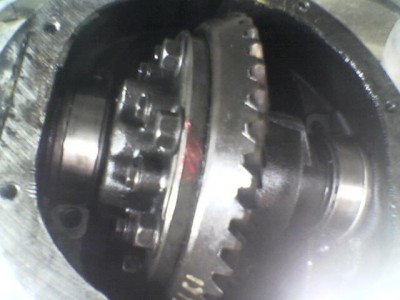

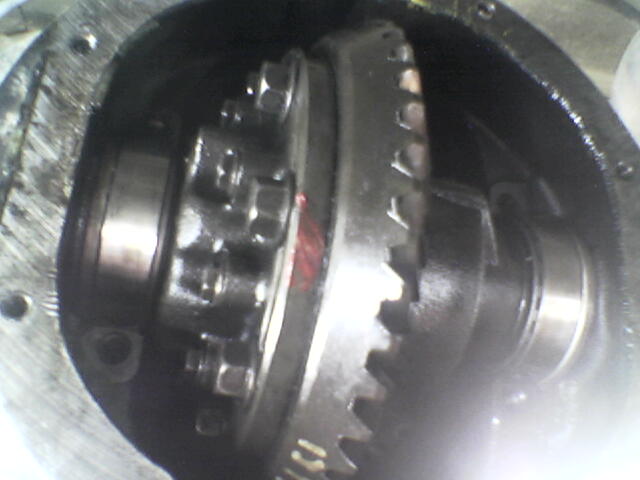

File comment: the new center
1148.jpg [ 32.77 KiB | Viewed 20 times ]

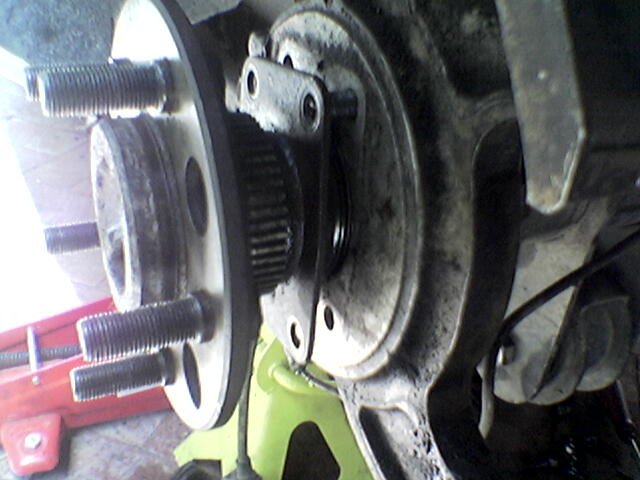

File comment: the RL wont go in
1146.jpg [ 45.84 KiB | Viewed 17 times ]

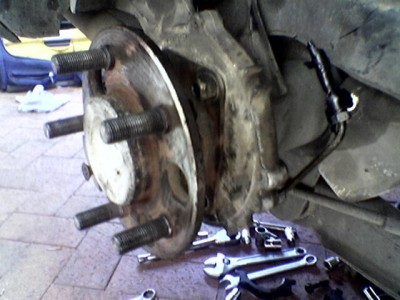

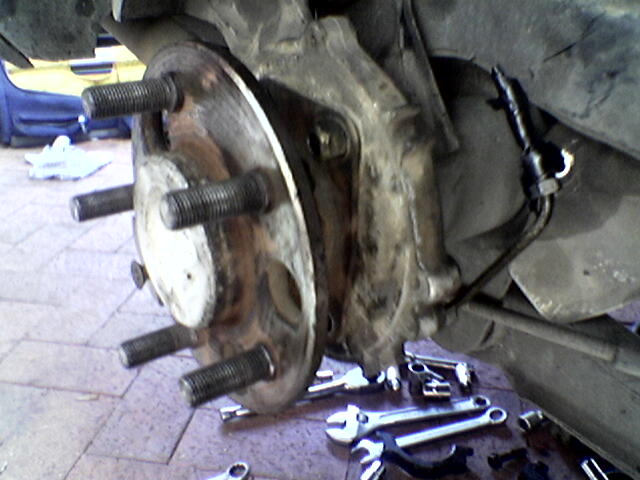

File comment: RR's in
1145.jpg [ 48.82 KiB | Viewed 17 times ]



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 4:35 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Might need to put some bearing caps on the center if you havent already. Yes stick in reverse and rotate the axle while pushing in.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Jan 17, 2007 4:58 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

yer took the picks before berring caps are on already but will give twisting it a go now and see how i go



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 5:04 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

ok tryed turning and pushing and it wont budge, could there be any reason for this



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 5:12 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Well if it is not going then perhaps one of the following:

The spider gear or cone is broken.
The spider gear or cone is the wrong spline.
The axle is wrong.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Jan 17, 2007 5:16 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

where would i find the gear cone got any pics

and it is a ABS axel but it it was in the diff it must go back in

does that mean the center could be stuffed if it dosnt go back in or could be somthing i have don while changing the crown wheels, is it a easy fix if throw it in the bin fix



_________________

1976 XC falcon
182 Clio Sport

Last edited by EB91XR6 on Wed Jan 17, 2007 5:22 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Jan 17, 2007 5:22 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

yep as Above, looks to me like the LSD cone isn't alligned with the spider gear.

'forcefully tap rotate' the axle a bit and push it in



_________________

Carefree, we may not be number one, but we're up there.

Last edited by Krytox on Wed Jan 17, 2007 5:43 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Jan 17, 2007 5:28 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

ok the hammer trick worked thanks alot guys now i can start putting it together with my new lsd



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 5:37 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

thanks guys you have all been a great help



_________________

1976 XC falcon
182 Clio Sport

Top
 Profile


Posted: Wed Jan 17, 2007 6:11 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

No worries, did you check backlash and preloads?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu Jan 18, 2007 2:49 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 561

Joined: 23rd Dec 2005

Ride: XC V8

Location: Easten
SA, Australia

how do i put diff oil in as i cant seem to get anything in there that i can pour it into
