NOVICE GUY - 1 ton Leafs in EF wagon, XR6 lows, Super Charge



Page 3 of 6 [ 76 posts ] Go to page Previous  1, 2, 3, 4, 5, 6  Next


Posted: Fri Jul 25, 2008 10:41 pm
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

I will have to post some pics of all the parts in the sardine tin (garage).
Stripping the WHOLE car at the moment .. slowly when I find an hour or so here and there.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Fri Jul 25, 2008 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

I know how you feel about stripping the whole lot. I am down to the firewall in the white Fairmont and have most of the engine bay open, other than having snapped the head off an allen key when attempting to take out the air inlet manifold bit. I really want to get my hands on the coil packs and will clean up and polish the alloy air system from the Fairmont to go into the Futurlane.

Am still a little ill at ease with tearing the Futura apart totally... I am not 100% about putting all the bits I have back in yet!..

I have arranged to pull the gearbox out of the Fairmont this coming week... Am giving the mechanic who does my warrant of fitness checks the DIFF, and he's going to take out the gearbox and everything else of value from the engine bay for me. He actually uses the same EF motor in two of his stock cars and drives an EL wagon to tow the stockcars. Funny how these things happen when all you do is take the car for a "quick warrant" in your lunch break.


I must say that the one tonne springs I got were rusted together as well as yours. So well that the pin was hacksawed through (by me). I made a new pin using D8 stainless and the original spacers from the wagon (about 15-20mm long "nuts" with no thread).

I was a little confused about the way the wagon spring terminates at front end by being OBLONG, where as the other springs are all ROUND. The oblong rubber must do something, so all things considered (and a headache or two along the way) I think keeping the top leaf from the wagon was the way to go. Just hope the warrant guy doesn't look too closely at it before I have a chance to get the lowered system in place... It looks slightly dodgy with the two original plates being about 25mm shy of meeting each other.


All good. And, that, is me for the night. Thanks for the feedback...
Top
 Profile


Posted: Sun Jul 27, 2008 8:48 pm
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

I did have trouble as the u-bolts from the wagon were a larger diameter than the ute so I was like you with a hybrid set up. I didn't have a 16mm drill bit to help it all fit. This reminds me I must take the brackets into the workshop at my work to drill them out for the fairmont conversion.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Sun Jul 27, 2008 11:53 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

fiend wrote:
I was a little confused about the way the wagon spring terminates at front end by being OBLONG, where as the other springs are all ROUND. The oblong rubber must do something, so all things considered (and a headache or two along the way) I think keeping the top leaf from the wagon was the way to go. Just hope the warrant guy doesn't look too closely at it before I have a chance to get the lowered system in place... It looks slightly dodgy with the two original plates being about 25mm shy of meeting each other.
I've been chasing blue poly bushes (similar to nolathane except softer), and it seems from part numbers, the oval front spring eye seems to have been around since XD or even earlier, while the equivalent commercial vehicle has round bushes. The EA-EL wagons have the same wheelbase as the XH. The spring stretch is taken up by the rear shackles. I have no idea what the oval bush is supposed to do.
The upper two leafs should have separater discs between them also - to help movement and to cut wear.
The wagons are around 120kg heavier than the utes and panelvans - I would suspect the 1 tonne springs would help to cancel some of this, whilst the equivalent ride would be better than an unladen ute or van I would think.
The XH rear springs have 2 front eyelet diameters, 51mm or 54mm - I'm suspecting they are 750kg and 1 tonne respectively, if you guys get a chance to measure yours, please let me know what the measurement is.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Jul 28, 2008 7:54 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

WOW. SNAP, ya da man. As I did not use the top leaf (as mentioned, I was put off by the OBLONG bit - thought it may provide a bit of dampening against aggressive knocks or something..!) I have the original upper leaf from the UTE sitting under my mates car port - Am due there tommorow as he is SPEWING that I have left the Fairmont sedan (with no front end) in his garage! <ahem!>

I will have a quick measure of the 51 or 54mm thing for you... And yes, I put all the seperator disks back in. The ute had them from the top leaf down to about the fourth. The stationwagon only had them on top two.

You stationwagon sounds like what I want mine to be.,... Especially the """F/Lane Dome Lt, Climate Ctrl, T5 Conversion""" bits...! hehehe... Am still working on the Climate Control - Finally painted the dash black and have prices for new heater hoses. I am seriously thinking that I will remove all the air conditioning system tho - Which may play havoc with the climate control sensors. Still - If it blows hot when I ask it to, I'll be happy.
Top
 Profile


Posted: Mon Jul 28, 2008 9:11 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah Dude, if you could measure the one tonne eyelets, that'd be much appreciated.
A 30mm front swaybar will make a big difference - you may not need a 20mm rear due to the stiffer rear springs. Both my cars have this setup.
See http://www.fordmods.com/forums/viewtopic.php?t=54891 for info and another link.
Unfortunately, a manual option wasn't available on the EF/EL futura/fairmont wagons - so you need to improvise.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Jul 30, 2008 6:20 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

I think a rear swaybar is called for actually old mate! Although the rear end body roll is miles better than what it was standard (remember I *always* have about 300kg in boot...)....

What do these cars weigh as standard? Last time I went to the tip without a trailor I weighed 2215kg on the way in and 1964 on the way out.

Any hoooo....

http://www.fordmods.com/forums/post739569.html
I liked this thread the best (becuase of the pictures, of course...) I had trouble thinking how a rear swar bar would work. I still have a bit of an odd question -- Wouldn't linking the axle up like this mean that each wheel would try and go up and down with the other? If, for instance, the sway bar was 100% rigid (impossible, but let's just say it was) then both wheels would move up and down even if there was only a bump on one side...?!

I am now keeping my eyes open for a similar thing...

Still have not got the front XR6 (EL) springs in... Am getting a little confused as to why my Fairmont dash loom has had some wires chopped, but seems to function perfectly and thus have been wasting huge amounts of brain power on other stuff.

Am towing the old white Fairmont carcass tomorow. Not really "towing"... There's NOTHING left of brakes other than a brake peddle. No ABS computer - No brake lines intact - No disks, rotors - No pads - No nothing! Oh - There is still disks on the front, purely to put some wheels on to get the tow guy to lift the arsse end up and drag its sorry butt to the Ford heaven known as chineese scrap metal purchaser.
Top
 Profile


 Post subject: Whiteline bits
Posted: Wed Jul 30, 2008 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

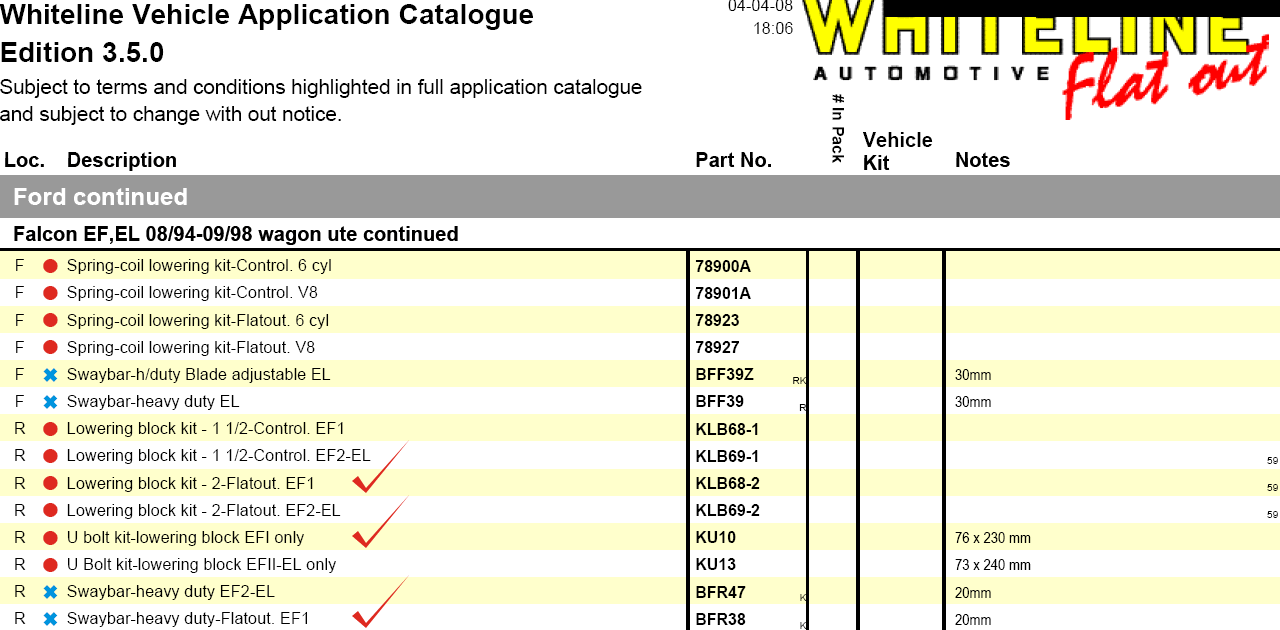

Okay then - this looks interesting. Now, if only I could find an online price (and even better - a wreck with one on!)
