 Post subject: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 1:08 am
Parts Gopher
Offline

Posts: 86

Joined: 20th Apr 2008

Location: perth
WA, Australia

Hey guys,
I have an el xr6 turbo

just had a new clutch put in and its a fair bit heavier then before so i thought i better strengthen the pedal box before it bends. had a look and i think it has already been done???

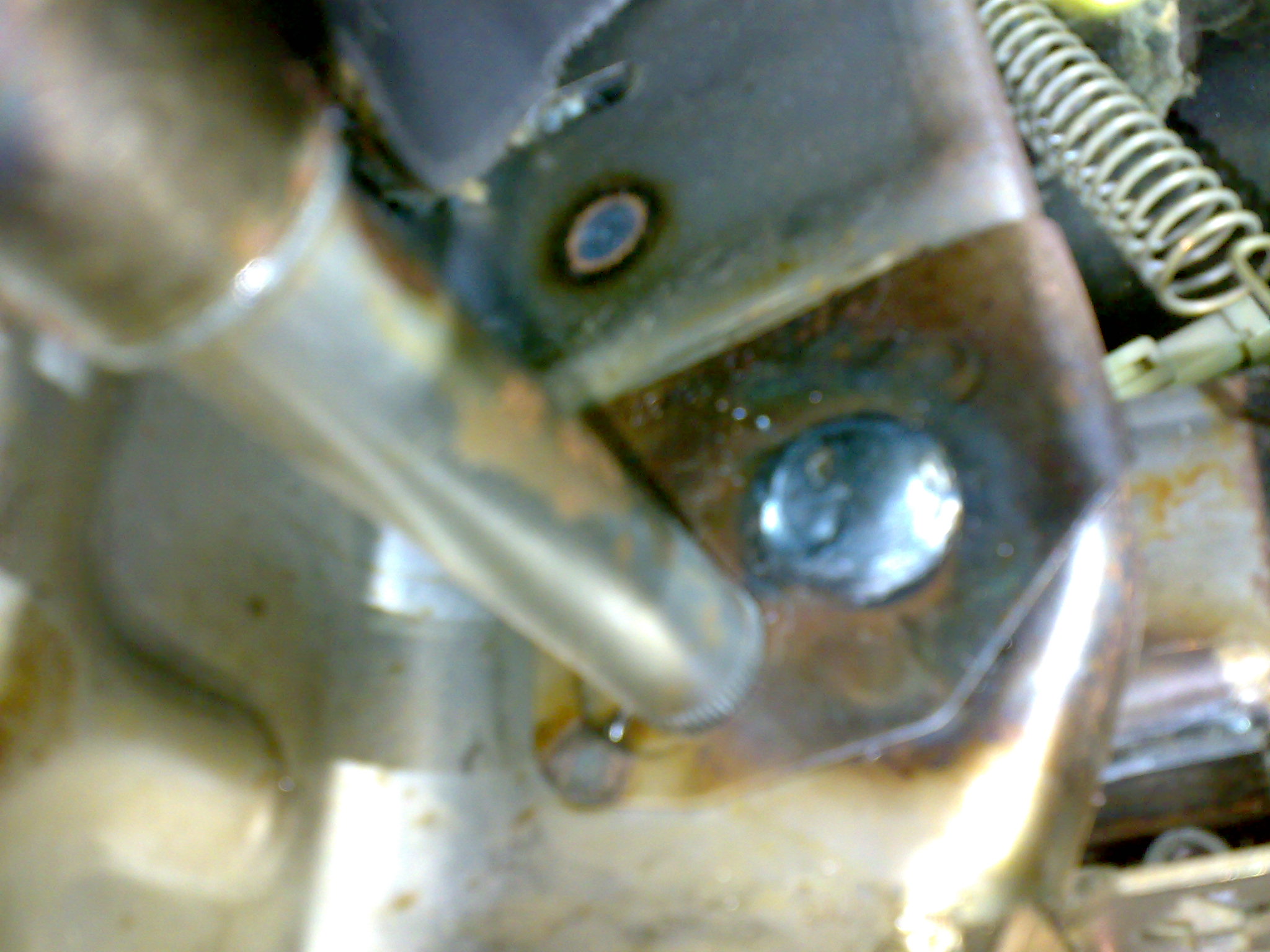

can anyone tell from these pics? do they have an extra plate from factory like this?

the picture is really blurry im sorry but any help would be awesome!





Attachments:
15092009210.jpg [ 417.92 KiB | Viewed 56 times ]



_________________

El xr6
14.268 @ 96.77mph--- motorplex 4/3/08

549 crow cam
chiptorque chip
pacemakers
hiflo cat
cai w/ k&n panel filter
3.89:1 diff gears

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 1:58 am
Getting Side Ways
Offline
User avatar

Posts: 771

Joined: 2nd Oct 2008

Gallery: 6 images

Ride: 94 ED falcon

Location: Brisbane, 4173
QLD, Australia

It's not factory, as the car is manual and turbo putting it the "performance" category, there is a good chance the previous owner was aware of the pedal box problems and has done this.
Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 2:50 am
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

That looks like a piece of sheet metal has been tack welded in, hardly enough to make any scrap of difference imo. can you get a look on the other side? this may have been a repair job. check for cracking around the pin itself and take a pic if you can mate. Also have a look around where the clutch cable goes through the firewall and see if there is damage around there.



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 10:22 am
Parts Gopher
Offline

Posts: 86

Joined: 20th Apr 2008

Location: perth
WA, Australia

i did get a look at the other side and it looked like a few tacs (hard to get photos) had been put in but pretty hard to see as its a tight spot. The firewall is fine, no plate as yet but will be making one up for it shortly

thanks for your help!

also can anyone confirm if a ef diff will go straight into my el?



_________________

El xr6
14.268 @ 96.77mph--- motorplex 4/3/08

549 crow cam
chiptorque chip
pacemakers
hiflo cat
cai w/ k&n panel filter
3.89:1 diff gears

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 12:15 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

I dont think you will have any problems with fitting a EF diff in your EL. Its a problem if you want to use a boxcar one I think. As you dont have the brackets for the hand brake cable on the boxcar one. and the brakes are not the same aswell.



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Wed Sep 16, 2009 12:21 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

top control arms are different, either shorter or longer in the ef.
will work if u use the matching upper control arms
Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Thu Sep 17, 2009 12:34 am
Parts Gopher
Offline

Posts: 86

Joined: 20th Apr 2008

Location: perth
WA, Australia

sweet thanks for the info dudes!



_________________

El xr6
14.268 @ 96.77mph--- motorplex 4/3/08

549 crow cam
chiptorque chip
pacemakers
hiflo cat
cai w/ k&n panel filter
3.89:1 diff gears

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:24 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

That pedal box is the factory revised one. Definitely NOT a strong unit, though it is better then fords original effort.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:28 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

tickford_6 wrote:
That pedal box is the factory revised one. Definitely NOT a strong unit, though it is better then fords original effort.


Pretty lame effort really is'nt it :wink:



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:33 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

XR-Lane wrote:
tickford_6 wrote:
That pedal box is the factory revised one. Definitely NOT a strong unit, though it is better then fords original effort.


Pretty lame effort really is'nt it :wink:



the only difference between that and the original is 3 spot welds and on the revised one the plate wraps around the box as can be seen in the pic. On the original the plate was flat and half the size



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:36 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

tickford_6 wrote:
XR-Lane wrote:
tickford_6 wrote:
That pedal box is the factory revised one. Definitely NOT a strong unit, though it is better then fords original effort.


Pretty lame effort really is'nt it :wink:



the only difference between that and the original is 3 spot welds and on the revised one the plate wraps around the box as can be seen in the pic. On the original the plate was flat and half the size



I bet a few of these revised ones have been broken before, maybe not as many as the older ones.



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:48 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

XR-Lane wrote:
tickford_6 wrote:
XR-Lane wrote:
tickford_6 wrote:
That pedal box is the factory revised one. Definitely NOT a strong unit, though it is better then fords original effort.


Pretty lame effort really is'nt it :wink:



the only difference between that and the original is 3 spot welds and on the revised one the plate wraps around the box as can be seen in the pic. On the original the plate was flat and half the size



I bet a few of these revised ones have been broken before, maybe not as many as the older ones.


i've broken both. then bought a new one and strengthed it my self before it went.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Fri Sep 18, 2009 10:53 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

thats f**k up mate.

Twindogs I would suggest ya do something with it, you dont want to be standard because your pedal box has broken.



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Sat Sep 19, 2009 9:08 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

looks like someone has made a lazy half assed attempt to strengthen it.

This is my old one compared to the new one i bought to replace it


this is how its been stregthened



as you can see a big thick plate has been welded to the side of the pedal box and a hole drilled into that plate directly behind the clutch pedal pin. This hole was filled with weld making it one with the solid steel plate. I dont think its going to break anytime soon :D



_________________


Top
 Profile


 Post subject: Re: pedal box- is it strengthened??
Posted: Sat Sep 19, 2009 9:13 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

elf100capri wrote:
top control arms are different, either shorter or longer in the ef.
will work if u use the matching upper control arms



IIRC the ef upper arms are 20mm longer
