Posted: Sat Nov 04, 2006 5:18 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

I have been assured by many people that there is no such part. It sounds like something that a dealership was making themselves but was never an 'official' part.

(btw - turn your swear word filter off ya skirt)



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sat Nov 04, 2006 5:26 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

No part number, does anyone have a picture.
BTW My 10 YO reads.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Nov 05, 2006 1:58 pm
Fordmods Newbie
Offline
User avatar

Posts: 15

Joined: 29th Jan 2006

Ride: ED XR6

Location: Adelaide
SA, Australia

Like everyone else here I've had lots of dramas with pedal boxes bending/breaking, so far no issues with the firewall, but after the clutch cable tore thru the fire wall on my mates EB, I've welded a strenghtening plate around the cable hole and dropped a big washer on the cable. These two mods are mandatory in my opinion and once done the whole thing will be rock solid, take the time to strenghten and get it right first time and save time and hassles down the track.
Top
 Profile


Posted: Sun Nov 05, 2006 4:06 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

got some pics of the strengthened parts?



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun Nov 05, 2006 4:50 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi

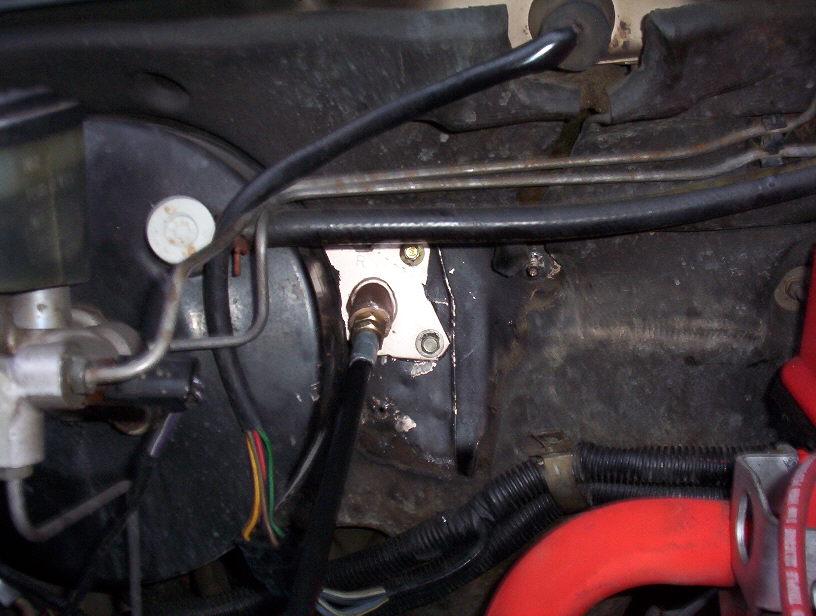

here is what i did to my firewall..
i havent had problems with the pedal box yet...





Attachments:
File comment: firewall repair
fixed.jpg [ 82.56 KiB | Viewed 191 times ]
Top
 Profile


Posted: Sun Nov 05, 2006 4:53 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

i have 2 wrecks here, would it be worth cutting that section out and welding in on to give it double thickness? or just make up a small plate like in that pic?

i have plenty of roof metal ;) lol



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


 Post subject: Re: Pedal Box strengthening
Posted: Sun Nov 05, 2006 10:48 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

twason wrote:
I have just got my pedal box from an EF and had been planning to strengthen it, but to my surprise it looks to be already done from factory. Should I add additional strengthening to it or will it never break?
That looks like a pre EF/EL pedalbox - brake switch in foreground, clutch switch in the background. I take it that it actually has come out of an EF (it's already been modified to suit)?? I also assume that you'll use the earlier type brake switch ??
I've had a look at my XH pedalbox (it's never been modified) - the strengthening plate is there as per yours, except it continues around the 90 deg bend (you can see that part in Nicks pics). All it has is a date stamped on it.
I would also fit a brand new clutch cable over a second hand one.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Nov 06, 2006 6:48 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Thanks Snap it is out of an EF and yes I will be installing a new clutch cable. Can you explain the earlier type Brake switch. I had noticed the brackets for the switch and there is a switch that screws into the brake bracket already as seen in the first picture of this thread. I could not work out what is was used for, is this the one you are referring to? If so can I use that as the brake switch directly or does iy require a relay?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Nov 06, 2006 1:08 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

twason wrote:
Thanks Snap it is out of an EF and yes I will be installing a new clutch cable.
Yeah good call.

twason wrote:
Can you explain the earlier type Brake switch. I had noticed the brackets for the switch and there is a switch that screws into the brake bracket already as seen in the first picture of this thread. I could not work out what is was used for, is this the one you are referring to? If so can I use that as the brake switch directly or does iy require a relay?
Yeah, that's the one. You can use it as your brake light switch in lieu of the EF/EL item which tends to fail often - I haven't heard of too many of the EA-ED ones failing. It looks like all the mounting hardware (clips, etc)is already on the brake pedal, so it should connect up to the brake booster rod okay. The switch will need a linking loom, e.g. couple of wires spliced with spade terminals to plug into the existing EF/EL brake switch plug - just in case you decide to go back to the EF/EL switch at a later stage.
No need for a relay, just adjust the switch to suit.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Nov 06, 2006 1:18 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

So is the one I have an EA one do you think or is it perhaps a Ute version of the EF? If so am I going to have trouble fitting it as there are supposed to be differences between the EA and EF pedal boxes? I might go buy the clutch pivot shaft any way just incase I need to use my Auto pedal box, its only $9.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Nov 06, 2006 1:34 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

twason wrote:
So is the one I have an EA one do you think or is it perhaps a Ute version of the EF?
It certainly looks like an EA-ED one - that's why I asked whether it was already modified as you said it was fitted to an EF.

twason wrote:
If so am I going to have trouble fitting it as there are supposed to be differences between the EA and EF pedal boxes?
IIRC the threads I've seen have said the holes around the steering column don't match up, so some need elongating and/or redrilling. Someone will no doubt clarify this.

twason wrote:
I might go buy the clutch pivot shaft any way just incase I need to use my Auto pedal box, its only $9.
That's handy info, I'll get one myself.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Nov 06, 2006 1:39 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Part number FOEF2478A - Shaft BRK/CLTCH PDL $9.12 +gst.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Nov 06, 2006 2:56 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Many thanks.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Tue Nov 07, 2006 12:48 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

twason wrote:
I might go buy the clutch pivot shaft any way just incase I need to use my Auto pedal box, its only $9.
Yeah, mine's on it's way.
Modding an auto pedal box wouldn't be too difficult, add the clutch pivot pin, weld it in, strengthen behind it with some decent strap welded on, and add a bracket for the clutch switch.
The bump stop is absent, but the way the clutch pedal adjustment is set up, you'll find it isn't needed.
Don't know if you can mod the auto brake pedal by reducing the pad support - perhaps the bend in the arm may need to be lessened too.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Tue Nov 07, 2006 6:45 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Mal Wood pin mod information says just remove one side of the pedal face on the Auto brake pedal to make it a manual or just swap over the pedal you already have.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile
