Posted: Sat Dec 02, 2006 2:10 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, thanks for that.
I've seen pics of the Mal Wood pin on another forum - I'm still of the belief that to have a manual pedal box and have it done properly, it needs to be removed, 'fixed' and reinstalled.
There is a trade off with my method, you won't be able to remove the brake pedal in future - shouldn't be an issue I would think. You need to install the brake pedal without the plastic bushes (even with wet rags and bushes installed, I doubt they won't melt whilst welding) - allow for at least 17mm (plastic bush length) LH movement for both shafts, do your welding, cut the collar off one of the plastic bushes, lube and slide it on and through the brake pedal shaft hole, then lube and install the other bush. Fit the brake pedal shaft through the RH pedalbox hole and clip it.
The 'clutch pedal pin' needs to sit 46mm proud of the sheet metal - the factory pin has a 5mm collar, so you need to find something to suit - maybe drill out and fit one of those green EF/EL brake switch spacers with a washer.
If you have everything laid out in front of you, you should be able to understand what's been said here.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Dec 03, 2006 9:09 am
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

Yep, that all makes sense - very much appreciated!



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


Posted: Thu Apr 19, 2007 12:29 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

One question about the Mal Wood option, where are people getting ya clutch pedals from? I would have thaught wreckers would be reluctant to seperate them from the rest of the pedal box..



_________________

EL XR6 5spd

Top
 Profile


Posted: Thu Apr 19, 2007 2:07 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

wreckers will seperate most things. alot of places around me just keep the box's and scrap the rest.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Thu Apr 19, 2007 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Im a bit at a loss as to why not just use a manual pedal box, if in the end an auto one needs to be ripped out and welded anyway..

I assume install/remove of both is the same deal, or is it the case that manual pedal boxes need reinforcement aswell, which begs the question did ford ever release a manual falcon that wasnt factory f**k?



_________________

EL XR6 5spd

Top
 Profile


Posted: Thu Apr 19, 2007 7:07 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

you will find almost all pedal boxes that have been removed or used in a conversion have been welded aswell. they are well known for cracking.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


 Post subject: EL pedel box.
Posted: Sun Oct 21, 2007 11:40 pm
Fordmods Newbie
Offline

Age: 40

Posts: 3

Joined: 20th Oct 2007

Ride: falcon

Location: perth
WA, Australia

I no what you mean by the pedel box does bend, as i had Man EL Gli and it got fixed once replaced with new one then several months later bent again. I replaced clutch cables often in my EL the traffic driving has hard toll on the very hard pusher. My standard new clutch was just a PBR one that was still just as truck like in pushin it into the floor. I was going to look at getting it converted to hydrolic set up usin system from xd man v8.



_________________

4.0L Factory six
4Sp Semi Auto
Lowered Pedders Suspension
17inch BA XR8 Rims
Rear Spoiler, Gennie Extractors and Gennie 2 1/2 inch sports Exaust system
Big Mouth Washable Panel Air Filter.
Standard Sound System, needs sub a Amp and speaker upgrade.

Top
 Profile


Posted: Wed Oct 24, 2007 6:26 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

Bug wrote:
Im a bit at a loss as to why not just use a manual pedal box, if in the end an auto one needs to be ripped out and welded anyway..

I assume install/remove of both is the same deal, or is it the case that manual pedal boxes need reinforcement aswell, which begs the question did ford ever release a manual falcon that wasnt factory f**k?


The manual pedal box is STRUCTURALLY virtually IDENTICAL to the auto one - maybe the manual one might have an extra bit where a switch mounts or something - it's easily enough converted - the MAIN DIFFERENCE is that the manual one has the post for the pedal welded on whereas the auto one just has a hole there - thats where the Mal Wood pedal pin is fitted - it just fits into that hole.

There are TWO issues related to manual vs auto pedal boxes:

1. The manual pedal box is absolutely NO STRONGER than the auto one in that pedal pin area - so the manual box just bends and distorts as badly as an UNMODIFIED auto one - in both cases that area needs strengthening.

2. This is the biggie - an off the shelf manual pedal box will cost somthing like $200+ (!!!!) but the auto one costs only $120 - that's brand new from Ford. So even if you have a factory manual Falcon and your pedal box is collapsed - a GOOD OPTION is to buy a factory AUTO pedal box, change over the extra brackets for switches etc. (tiny bit of cut & welding - real cheap to have done - very easy for self to do if you have ANY welding knowledge - or a mate), beef up the side where that pin goes or modify it to have a cross-shaft and / or get a Mal Wood pin (about $80).

The real winning option is to buy a secondhand auto pedal box from a wrecker for something like $50 - it will have never had a manual pedal pin in it so structurally you're looking at the same item as a newy....

I'm very soon going to get a new/goodsecondhand auto box, transplant all the pedal gear over, double up the wall on that pin side, and make up an extension shaft that screws onto the back (nut) end of the Mal Wood pin and extends across to the other side where I'll drill ahole to put a bolt thru that screws into the end of that extension - using spacers so the extension can be screwed onto the end of the Mal Wood pin after it is in place - this will alleviate the twisting force around the base of the pedal pin - which is what KILLS all of them.

ps - the extra switch I'm talking about is I think an neutral drive switch - maybe makes idle speed drop slightly wih clutch IN?? - ie. so if you don't mind a slightly high idle with clutch IN then don';t even worry about that f**k...



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


Posted: Thu Nov 08, 2007 11:00 pm
Fordmods Newbie
Offline

Posts: 1

Joined: 7th Nov 2007

Location: Melbourne
VIC, Australia

Hi

Can someone out there give me a run down on how the easiest way to to take out a pedalbox on an el xr6 i to have repair mine because of a crack that is appearing on the side of the clutch pedal pin. I have already had the firewall cave in and ive made up a plate for that now its time for a pedalbox repair

Thanks Ren59
Top
 Profile


Posted: Thu Nov 08, 2007 11:01 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

basically you will have to remove the whole dash to get it out due to the locations of the bolts.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Thu Nov 08, 2007 11:21 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 613

Joined: 5th Aug 2007

Location: Ararat
VIC, Australia

kezz wrote:
nar pedal boxes do bend too....


yup certainly do and crack as well.........I just replaced mine in wagon, FORD SHOULDA BEEN HYDRUALIC!!!



_________________

EF Ghia 5L V8
BAMk2 XR8 Velocity/Cobra 19's

Top
 Profile


 Post subject: Re: Pedal Box strengthening
Posted: Thu Jul 28, 2011 12:41 am
Smokin em up
Offline
User avatar

Age: 36

Posts: 258

Joined: 7th Nov 2004

Gallery: 6 images

Ride: '98 EL XR8

Location: Katherine
NT, Australia

Hi fellas

My EL XR8 is my 6th Falcon Ive owned, but its my first Manual and Ive only had the car for a month. The clutch pedal force is quite high in comparison to say any other manual vehicle Ive driven. It is quite fatiguing as to change gear I have to stomp to the floor.

Ive managed to wind the clutch cable out some, which has helped a little, but still having difficulty.

The footrest on the clutch pedal looks like its bent to the left and its quite creaky when I use the pedal. Both myself and my misses are quite short people and having the seat all the way forward, I struggle with the clutch - my misses is even shorter and Id hate to drive the EL if I was her.

How do I know if theres anything wrong with the device. What things can I look for with the clutch cable/pedal box? Ive had no experiance with maintenance on pedals.

Help anyone?



_________________

"...we can rebuild him, we have the technology... we just dont want to spend a lot of money."
SIX MILLION PESO FALCON

Top
 Profile


 Post subject: Re: Pedal Box strengthening
Posted: Thu Jul 28, 2011 1:11 am
Smokin em up
Offline
User avatar

Age: 36

Posts: 258

Joined: 7th Nov 2004

Gallery: 6 images

Ride: '98 EL XR8

Location: Katherine
NT, Australia

Sorry for wasting time, I should have inspected the clutch assembly first before posting.

On inspection, the clutch cable is down to about 2 threads from the adjusting nut, and the whole pedal is off at an angle. This is caused by a crack which has developed on the clutch pedal pivot shaft mount. This looks like a stupid setup, designed to fail, why would anyone mount a high load pivot point from one end of the shaft. FFS

Time to start pulling her apart... again...



_________________

"...we can rebuild him, we have the technology... we just dont want to spend a lot of money."
SIX MILLION PESO FALCON

Top
 Profile


 Post subject: Re: Pedal Box strengthening
Posted: Thu Jul 28, 2011 1:30 am
Smokin em up
Offline
User avatar

Age: 36

Posts: 258

Joined: 7th Nov 2004

Gallery: 6 images

Ride: '98 EL XR8

Location: Katherine
NT, Australia

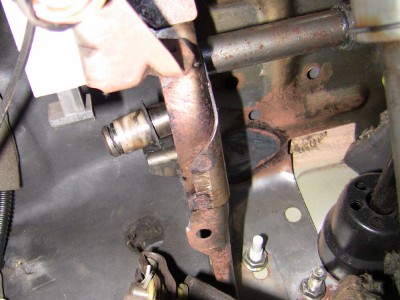

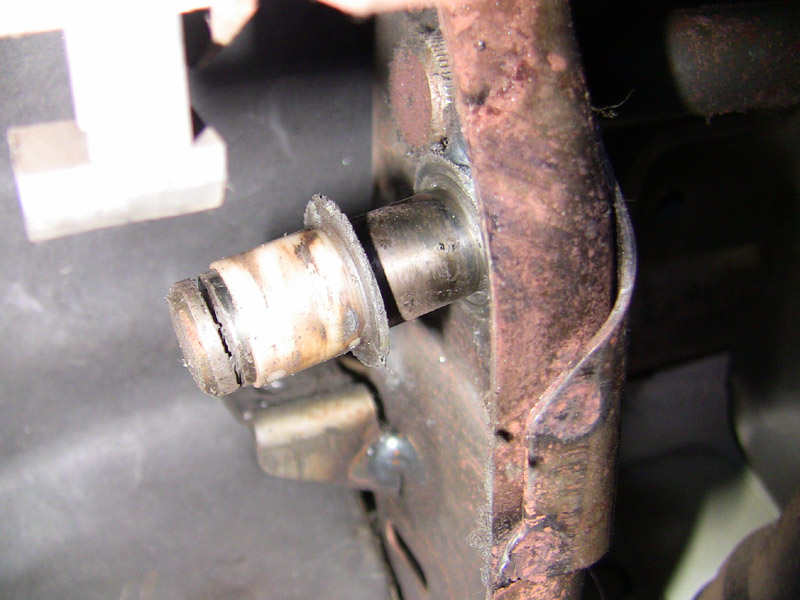

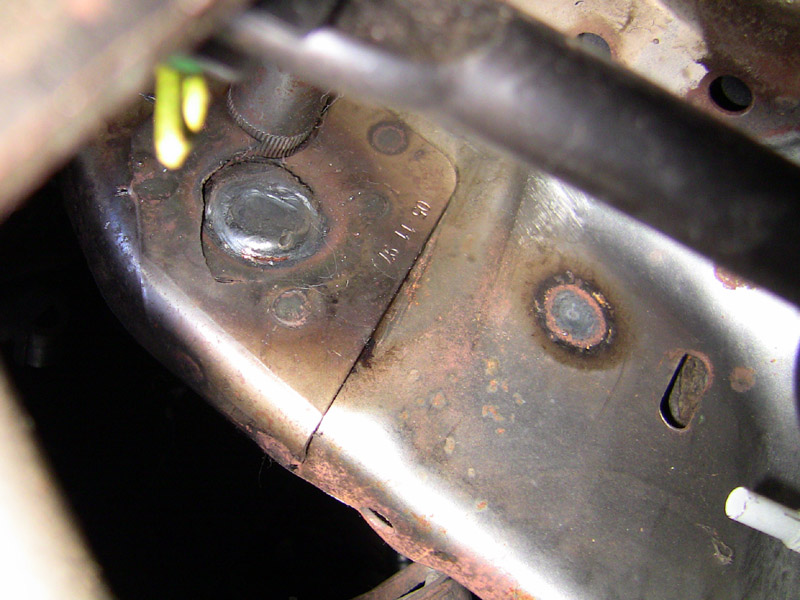

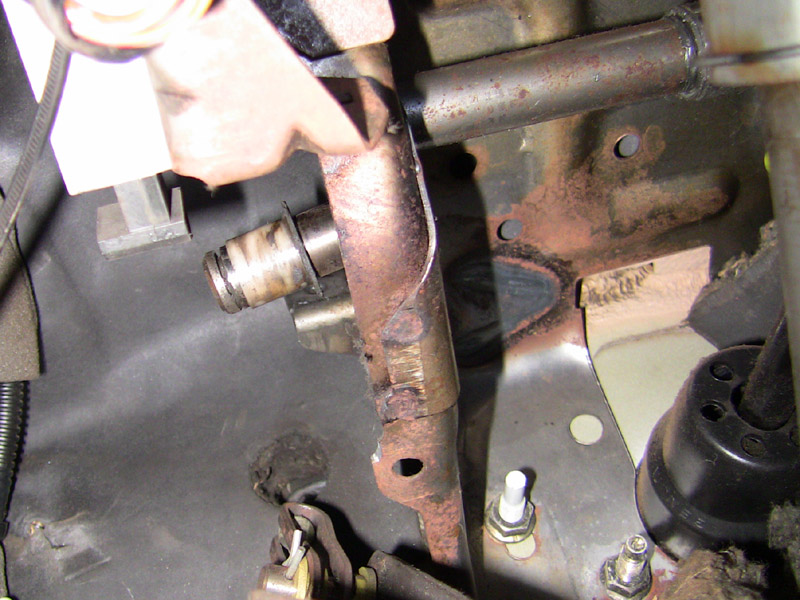

Some pics if anyone is interested. Not sure how Im going to tackle this, thinking about lathing a longer shaft and having it supported at both ends.
