Rear Calipers on EA-ED



Page 1 of 1 [ 4 posts ]


 Post subject: Rear Calipers on EA-ED
Posted: Sat Jun 27, 2009 3:31 pm
Parts Gopher
Offline

Age: 39

Posts: 97

Joined: 29th Jan 2006

Gallery: 6 images

Ride: EBII

Location: Brisbane
QLD, Australia

I am doing my rear brakes and when I pulled the pin from the rear pistons I dropped the whole damn thing and I want to put it back together right. There is the piston, two thick washers with notches in them, a bolt for the worm drive and a metal shim, like a washer just very thin. Which order do they go into the piston?



_________________

EB II
Genie Headers, Redback 2,1/2 exhaust. BA XR8 Intake.

Top
 Profile


 Post subject: Re: Rear Calipers on EA-ED
Posted: Sat Jun 27, 2009 9:34 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

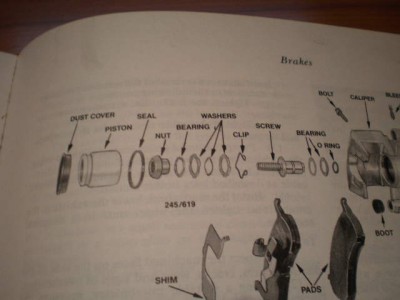

Here's a diagram which might be helpful.





Attachments:
Brake diagram.jpg
Brake diagram.jpg [ 39.9 KiB | Viewed 34 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Rear Calipers on EA-ED
Posted: Sat Jun 27, 2009 9:40 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

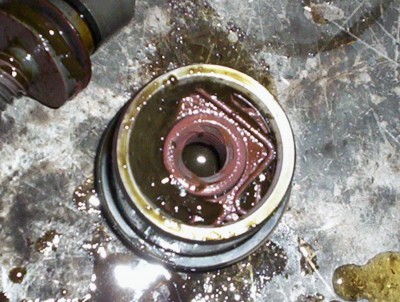

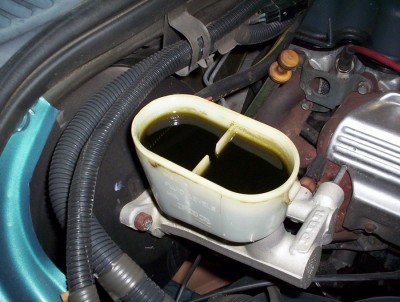

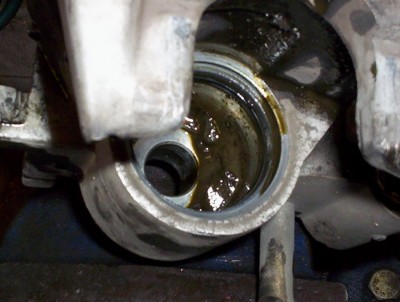

If its come apart that far, whats it look like inside???? That crud is all the way inside too.





Attachments:
ED Falcon brakes, dirty fluid etc. 001_resize.jpg
ED Falcon brakes, dirty fluid etc. 001_resize.jpg [ 202.7 KiB | Viewed 28 times ]
ED Falcon brakes, dirty fluid etc. 006_resize.jpg
ED Falcon brakes, dirty fluid etc. 006_resize.jpg [ 220.32 KiB | Viewed 30 times ]
ED Falcon brakes, dirty fluid etc. 005_resize.jpg
ED Falcon brakes, dirty fluid etc. 005_resize.jpg [ 166.41 KiB | Viewed 41 times ]
ED Falcon brakes, dirty fluid etc. 004_resize.jpg
ED Falcon brakes, dirty fluid etc. 004_resize.jpg [ 184.5 KiB | Viewed 32 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Rear Calipers on EA-ED
Posted: Sat Jun 27, 2009 9:44 pm
Getting Side Ways
Offline

Age: 34

Posts: 756

Joined: 21st Nov 2005

Gallery: 25 images

Ride: 1999 AU futura

Location: griffith
NSW, Australia

If you are intending to refit it all back together.I suggest getting 2 rear caliper seal kits.I would also make sure you clean the caliper and the piston thoroughly.You can use alittle bit of steel wool to clean the outside of the piston and the inside of the caliper where the piston is housed.

When reassembling use either rubber grease or some new brake fluid as the lubricant for the seals.



_________________

COMING SOON,XD WITH A TURBO...CLEVO STYLE

Top
