Rear Suspension Knock - Any Idea's??



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Rear Suspension Knock - Any Idea's??
Posted: Tue Mar 11, 2008 9:36 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

As some of you may have noticed, I lowered the lane on the weekend and all was good at first, but today I took it for a spin down to the supermarket and there was a constant knocking noise coming from the drivers side rear suspension over even the slightest bumps. I took it straight home and jacked her up again but could not find any thing loose? :x I finally traced the knocking noise down to the top of the shock tower. It even knocks when I grab hold of the rear wheel arch and lift the car up and down?? It is frustrating the s**t out of me. Does anybody have any idea's?? I am going to pull the shock out tomorrow and check the top mounts and insulators but the top spindle of the shock does not move at all when the knock occurs as you would expect? Any help would be greatly appreciated. :D
Cheers, Mick



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


Posted: Tue Mar 11, 2008 9:44 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

shock tower rubbers!
lower shocker bolts!
upper control arms!

also tailshaft could be hitting the body!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Tue Mar 11, 2008 9:45 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

could be the bottom shockie bolt needs tightening.

Doesnt matter if its already tight, mine needed just to be turned a fraction tighter, and all the dreadful noises disappeared. Sounded like the diff was in 20 pieces rattling around.......
Top
 Profile


Posted: Tue Mar 11, 2008 9:48 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

sounds like the bush has gone, when you lowered it did you put new shocks in or just springs? 2 options.. you could replace the bush, oddson if that was the original one, the passenger side one is not far behind, or you could bodge it up and try and cut a bush to suit, have previously had the same issue and had to temp it, piece of old car tyre worked ok, but what ever you do you will need to replace teh bush eventually.



_________________


I have a car.

Top
 Profile


Posted: Tue Mar 11, 2008 9:55 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

The rear suspension was originally pedders standard height (only installed brand new late december). I have just put in a set of kingspring lows, but used the new pedders shocks. Could I have damaged the shocks by not installing short shaft units? I have only lowered the rear height by approx 1 1/2 inches. The springs were actually the same height when sat next to each other?? But to answer your questions, bumpstops, bushes, shocks etc are all brand new?



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


Posted: Tue Mar 11, 2008 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

FordFairmont wrote:
could be the bottom shockie bolt needs tightening.

Doesnt matter if its already tight, mine needed just to be turned a fraction tighter, and all the dreadful noises disappeared. Sounded like the diff was in 20 pieces rattling around.......
I will give it another go at tightening the lower mounts. As I have explained it seems to be gradually getting worse, so if not tight enough could be working it's way loose. Cheers for the ideas fella's. :)



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


Posted: Tue Mar 11, 2008 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I would say tighten the bolts also. I had a knock after I put my supers in, went back (after advice from here), and tightened everything as much as possible - then got a hammer and tightened em up more.
Result - problem solved.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue Mar 11, 2008 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

krisisdog wrote:
I would say tighten the bolts also. I had a knock after I put my supers in, went back (after advice from here), and tightened everything as much as possible - then got a hammer and tightened em up more.
Result - problem solved.
Yeah! I'm convinced that's it. I remember nearly having a double hernia just trying to undo the lower shock mounts. Even had the missus run outside because she thought I dropped the car on me. I recon I must have torn nearly every stomach muscle loosening the f**k. :lol:



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


Posted: Wed Mar 12, 2008 5:02 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

And don't forget that you should tighten the lower shock bolts with the weight of the car on them i.e. don't have the diff hanging.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Wed Mar 12, 2008 5:38 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

If you have ramps back up on them so the weight is on the shocks and so on. Loosen the lower shock bolts and retighten. Also loosen the upper and lower rear control arm bolts then retighten as the bushes would have twisted as the car has lowered whick could cause a knock.
Top
 Profile


Posted: Wed Mar 12, 2008 6:39 pm
Getting Side Ways
Offline

Posts: 436

Joined: 20th Jun 2005

Gallery: 1 images

Ride: Gli

Location: melbourne
VIC, Australia

having the same problem with mine at the moment to would love to know what it is.
Top
 Profile


Posted: Wed Mar 12, 2008 7:45 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 2688

Joined: 21st Oct 2007

Gallery: 28 images

Ride: NCII Fairlane + G220

Power: 143 rwkw

Location: Lake Macquarie
NSW, Australia

You guys are f**k legends! All fixed. Not a single noise, not even the slightest squeek! :lol: I was so happy I even cleaned my MAF and did the ECU reset on the idle and WOT. Then, cause there was still light in the day, I gave her a wash and shamy. :D Thanks for the advice fella's. Always good to know I can count on my fellow fordmodders for a bit of friendly advice.





Attachments:

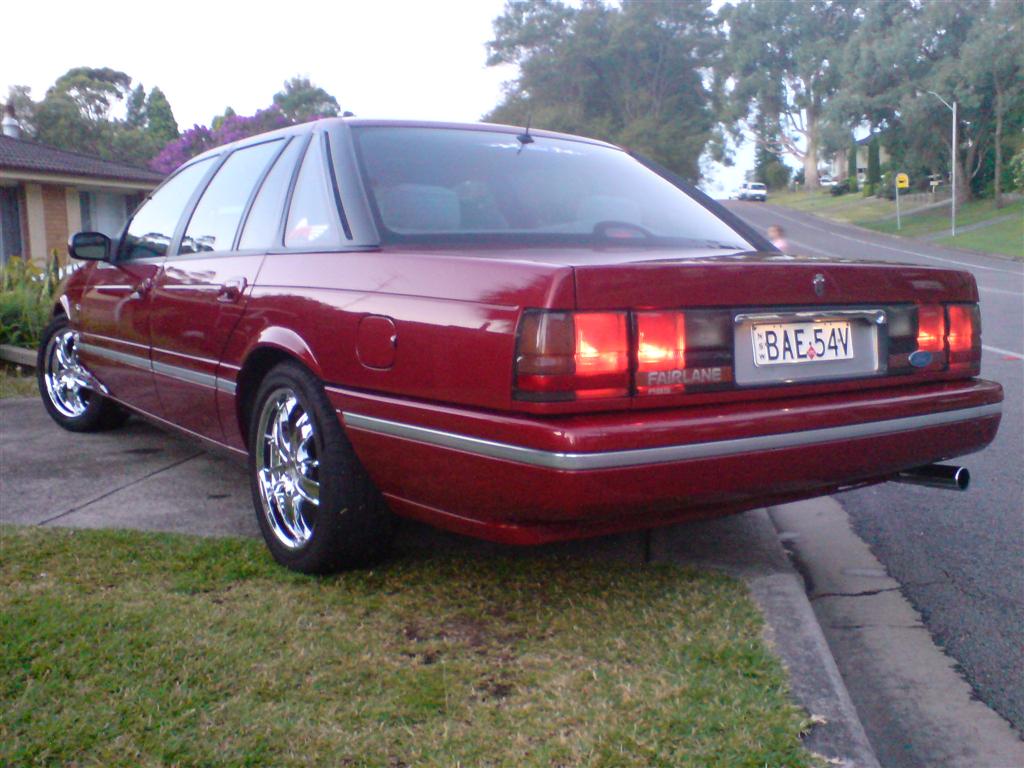

File comment: Clean, Low and No Knocks. LOL
DSC00642 (Large).JPG
DSC00642 (Large).JPG [ 119.01 KiB | Viewed 26 times ]



_________________

E-Series Fairlane/LTD? forums/post746329.html#746329
Mick's Garage forums/viewtopic.php?t=65504

Top
 Profile


Posted: Wed Mar 12, 2008 10:19 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Cheers mate, we love to help.

The lane is looking good mate. Nice and shiney.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Wed Mar 12, 2008 10:20 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

so could you single out what it was, or did you just tighten everything up and bingo noise gone?
Top
 Profile


Posted: Wed Mar 12, 2008 10:26 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

yea thats one nice fairlane you got there, i got my car lowered tuesday, makes a massive difference i should of done it earlier.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come
