Replacing Rear Extension Housing Trans Bush EL At Home?



Page 1 of 1 [ 6 posts ]


 Post subject: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Thu Jul 04, 2013 11:12 pm
Smokin em up
Offline
User avatar

Age: 23

Posts: 215

Joined: 30th Jul 2011

Ride: 1998 EL Ford Futura

Location: Melbourne
VIC, Australia

My EL Auto transmission extension housing bush needs replacing and i'm wondering if it's difficult to do at home? Do you need any special tools, or is it pretty straight forward. Previous experiences?

Cheers.



_________________

MY BUILD:
- Oxford Green 1998 EL Ford Futura. Hybrid EL Tickford Engine. 3.45 LSD Diff. DL LTD Interior. Cruise Climate Trip HERE
~~~~~~~~~~~~~~~~~~~~~~~~Image~~~~~~~~~~~~~~~~~~~~~~~~

Top
 Profile


 Post subject: Re: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Fri Jul 05, 2013 2:07 am
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

ryanpatrick42 wrote:
My EL Auto transmission extension housing bush needs replacing and i'm wondering if it's difficult to do at home? Do you need any special tools, or is it pretty straight forward. Previous experiences?

Cheers.


ford-4l-and-6-cylinder-f1/automatic-transmission-extension-housing-seal-t86044.html

which part are you meaning sorry
Top
 Profile


 Post subject: Re: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Fri Jul 05, 2013 2:52 am
Smokin em up
Offline
User avatar

Age: 23

Posts: 215

Joined: 30th Jul 2011

Ride: 1998 EL Ford Futura

Location: Melbourne
VIC, Australia

I think it may be called the slip yoke bush? It's not the seal shown in the link, it's a bush actually inside the rear of the transmission.



_________________

MY BUILD:
- Oxford Green 1998 EL Ford Futura. Hybrid EL Tickford Engine. 3.45 LSD Diff. DL LTD Interior. Cruise Climate Trip HERE
~~~~~~~~~~~~~~~~~~~~~~~~Image~~~~~~~~~~~~~~~~~~~~~~~~

Top
 Profile


 Post subject: Re: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Sun Jul 07, 2013 1:36 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1966

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

the brass bush, can be done but unless you have done it before get a transmission shop to do it



_________________


Top
 Profile


 Post subject: Re: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Sun Jul 07, 2013 6:16 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

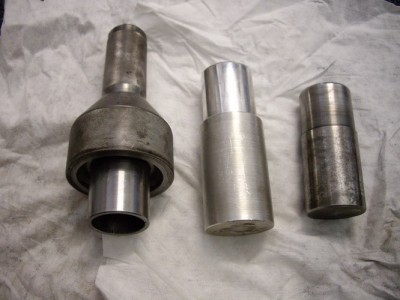

You need a special tool to remove the bush, and install the new bush.
I made my tools for doing that.
The one on the left is for installing the seal, centre is for installing the new bush, and the right is for pressing out the old bush.





Attachments:
IMGP1064_resize.JPG [ 87.22 KiB | Viewed 102 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Replacing Rear Extension Housing Trans Bush EL At Home?
Posted: Tue Jul 09, 2013 1:27 am
Smokin em up
Offline
User avatar

Age: 23

Posts: 215

Joined: 30th Jul 2011

Ride: 1998 EL Ford Futura

Location: Melbourne
VIC, Australia

cjh wrote:
You need a special tool to remove the bush, and install the new bush.
I made my tools for doing that.
The one on the left is for installing the seal, centre is for installing the new bush, and the right is for pressing out the old bush.



Thats some pretty cool tools you've got there which i'm sure would make the job really easy.


For anyone reading this, this is how I went about it.

I bought the Extensions Housing Kit from Bursons Auto Parts for $24.70 which included the Bush, New Seal and Gasket. It only took around an hour to remove the housing and then a little longer to remove the old bush with a chisel. I then took it to an Auto Repair shop with a press to press in the new bush and seal, costing me $15. Another 1 and a half hours and it's all back together, better than ever!

Total job cost me $39.70 and took no more than 3 hours. :D



_________________

MY BUILD:
- Oxford Green 1998 EL Ford Futura. Hybrid EL Tickford Engine. 3.45 LSD Diff. DL LTD Interior. Cruise Climate Trip HERE
~~~~~~~~~~~~~~~~~~~~~~~~Image~~~~~~~~~~~~~~~~~~~~~~~~

Top
