 Post subject: Revised Mal Wood clutch pin
Posted: Tue May 08, 2007 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Hey all..

Thanks to old_mate and his orig emails to Mal Wood, all clutch pins have been revised and are much stronger.

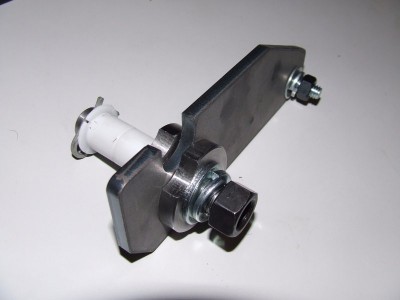

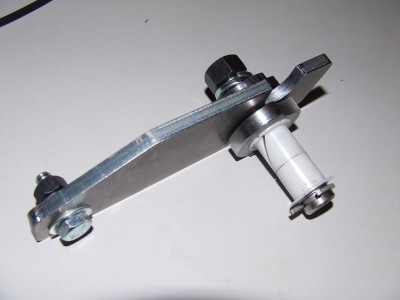

I have not yet tested the unit but for anyone thinking of welding, manual pedal boxes etc, I would look at the following..





Attachments:
DSCF0664.JPG [ 42.41 KiB | Viewed 131 times ]
DSCF0663.JPG [ 44.29 KiB | Viewed 138 times ]



_________________

EL XR6 5spd

Top
 Profile


Posted: Wed May 09, 2007 12:17 am
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 169

Joined: 30th Nov 2004

Gallery: 5 images

Ride: ef falcon

Location: perth
WA, Australia

well that makes my mind up how to do the clutch pedal now i just need to get it and everything else hahahaha

good post, looks the goods!!!



_________________

stage2cam,lukeyheaders,highflowcat2 1/2, 2 1/2 exhaust 3 hotdogs, 17x235/45 17x255/40's

Top
 Profile


Posted: Wed May 09, 2007 12:46 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 1883

Joined: 22nd Apr 2005

Ride: 94 ED Fairmont, MY97 LE WRX

Location: Seymour
VIC, Australia

Hey bug post the dimentions of the new plate,
so those who have the older pin can get the plate made up.
cheers paul
redroo
Top
 Profile


Posted: Wed May 09, 2007 12:48 am
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

how much will mal charge for the plate on its own for us unlucky sods that have already got the pin?



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Wed May 09, 2007 1:06 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

I'll post the dimensions soon, I think I paid $119 inc post so yer lookin at about $20/30 extra?

Not sure exactly as im not sure what the orig were going for..



_________________

EL XR6 5spd

Top
 Profile


Posted: Wed May 09, 2007 1:19 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

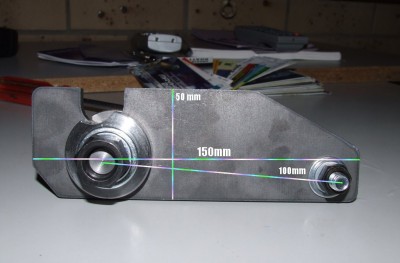

A picture says 1000 words, I assume these are the dimensions relevant.

While they seem like rounded off figures, they were pretty dead on.





Attachments:
pin-measured.jpg [ 94.25 KiB | Viewed 157 times ]



_________________

EL XR6 5spd

Top
 Profile


Posted: Wed May 09, 2007 8:10 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 832

Joined: 5th Nov 2004

Gallery: 7 images

Ride: EL Fairmont

Location: Brisbane
QLD, Australia

hehehe

looks better than my prototype



_________________

too many rabbits in china

Top
 Profile


Posted: Sat May 12, 2007 3:25 pm
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007

Ok, fitted the plate from Mal Wood today cause it looked like a good idea and seems to do the job well.

The u-shaped part needed to be shaved a little to fit over the main rod and the pedal box isnt exactly straight so some sideway pressure is on the pin but it was easy to fit up, well not sure if i did it right but there was only one way it would go on without drilling any holes.

One of the original washers had to be left off cause as you can see there is no thread left with the plate fitted. i recommend everyone with the pin fitted should get these plates put one cause i noticed in mine, when i pushed the clutch pedal to the floor the whole pedal box seemed to flex somewhat, but with the plate installed it barely moved.

Top
 Profile


Posted: Sat May 12, 2007 3:36 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 1883

Joined: 22nd Apr 2005

Ride: 94 ED Fairmont, MY97 LE WRX

Location: Seymour
VIC, Australia

Looks good I'll be getting mine made during the week.
Thanks for the pic with the measurements too Bug.
Top
 Profile
