grr i cant get this lol :(, anyone wanna dumb it down for me asto how to make this shift kit???
Top
 Profile


Posted: Tue Jul 04, 2006 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

take the diagrams and a few intructions to your local Jaycar or other electronics shop, they'll make it for you for like $25



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Wed Jul 05, 2006 2:00 am
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

Guys.. make sure you add an on/off switch to your kits.. I decided to omit that part for simplicity's sake... and well... it's wet weather.. those hard shifts in the wet are.. well... fun but dangerous hahaahaha
Top
 Profile


Posted: Wed Jul 05, 2006 4:18 pm
Getting Side Ways
Offline

Posts: 404

Joined: 8th Jun 2006

Location: melbourne
VIC, Australia

Anyone available to do mine? North Eastern suburbs.
Top
 Profile


 Post subject: Re: adjustable shift kit
Posted: Fri Jul 14, 2006 8:56 am
Fordmods Newbie
Offline

Posts: 15

Joined: 26th Mar 2005

Location: brisbane
QLD, Australia

peyote wrote:
im in the process of making a shift kit for my 4.0l EF but want to have it adjustable,i've just got the parts i hopefully need from jaycar but want to be sure i've got it right before i start cutting ECU wires.

i've added a quick diagram of how i plan to do it but want to be sure i've changed the right resistor for a pot.

thanks


Has anyone tried peyote's method yet (full post on page 14)and if so, does it work?
What happens when its turned off? does adjusting the pot make any difference? Thanks..Mick..
Top
 Profile


Posted: Fri Jul 14, 2006 11:36 am
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

mark154 has an adjustable one in his EF
works good
Top
 Profile


Posted: Fri Jul 14, 2006 2:52 pm
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

yeah a few people have adjustable ones, personaly i dont see the point.

brett3158 what sub you in i *might* be able to help (i built installed mine).



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Fri Jul 14, 2006 7:08 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 26th Mar 2005

Location: brisbane
QLD, Australia

Done it earlier today..gotta say I'm happy with the adjustable version..was kicking in a little too hard for me but after i backed off the potentiometer its still a quick change but not so boot in the back hard!!!..
Best Mod under $25.00 I have ever come across
($10.00 for the pot, $1.50 for resisitor, $4.00 for the switch, $2.40 for a box,$3.60 for cable ) all from Jaycar..

A big THANK YOU to the guys that posted the info on how to do this.. :D
Top
 Profile


Posted: Fri Jul 14, 2006 7:21 pm
Oompa Loompa
Offline

Age: 51

Posts: 48

Joined: 7th Apr 2006

Location: melbourne
VIC, Australia

not bad for $25 and 30mins work hey
just watch them wet roads up there when it rains
Top
 Profile


Posted: Fri Jul 14, 2006 7:26 pm
Getting Side Ways
Offline

Age: 36

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

EA-ED guys who have done this mod, what are the best resistors to use? Or is it safe to use the same as for the EF/EL?



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Tue Aug 08, 2006 6:08 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

I've replaced the 5.6 with a 5 potensiohmetre (or whatever) and i had a bit of a think about it and i think if i have 0 resistance on it, it might blow the a** out of my trany. whats the way to do the adjustable one? a diagram would be great.

as well, did anyone figure out what happens when that switch is in the fully off position? eg. limp home?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Sat Aug 19, 2006 12:28 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 511

Joined: 6th Feb 2006

Gallery: 3 images

Ride: BA Falcon Classic

Location: Perth
WA, Australia

does anyone know what would happen with zero resistance? i too would like to find out



_________________

When you do things right, people won't be sure you've done anything at all.

Top
 Profile


Posted: Sat Aug 19, 2006 4:06 am
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

try it.. and let us know :P

My guess would be limp home mode
Top
 Profile


Posted: Sat Aug 19, 2006 5:47 pm
Getting Side Ways
Offline

Posts: 558

Joined: 6th May 2006

Location: cbd melb.
VIC, Australia

Lol, i have some electronic parts from school etc and i only needed to buy 4, 5 watt resistors cos at the time the dse didn't have any 10 watters and the 5 watts were 30 cents each, so my total cost was $1.20.. lol i already have the wire, switch and the know how to do it ( i only needed to buy those resistors cos for electronics smaller circuits 5 and 10 watt resistors are not common).. now that was a cheap and effective mod. Thanks dudes.
Top
 Profile


Posted: Thu Oct 05, 2006 8:30 pm
Oompa Loompa
Offline

Age: 34

Posts: 26

Joined: 2nd Aug 2006

Location: Mandurah - Perth
WA, Australia

I went to d**k today and they DONT stock 10W resistors!

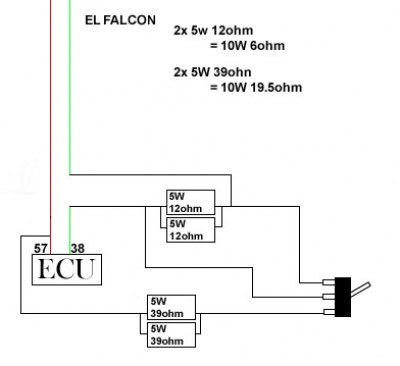

But apperantly if you put together two 5W resistors in parrelel, it doubles the wattage, halves the resistance.... they didnt have the exact figures but heres what i have got...

2x 5W 12ohm resistors = 10W6ohms (can i use this in substitute of the 5.6ohms resistor??)

2x 5W 39ohm resistors = 10W19.5ohms (can i use this in substitute of the 18ohm resistor?!)

Other than that im ready to build it all up. thanks!





Attachments:
File comment: EL FALCON wiring diagram
james_wiring.jpg [ 43.62 KiB | Viewed 186 times ]
