squeaky rattle noise coming from rear EL XR6



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: squeaky rattle noise coming from rear EL XR6
Posted: Tue Oct 23, 2007 2:41 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

when im driving over any surface that is not very smooth then it will squeak, if it hits a stone or a catseye it will squeak, but it wont do it if i hold the brakes on a little bit, its very embarrasing because it is loud and annoying. could it be the brakes or bushes or something else, anybody else had this annoying squeak?



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Tue Oct 23, 2007 11:37 pm
Smokin em up
Offline

Age: 42

Posts: 204

Joined: 8th Apr 2007

Location: Sth Australia
SA, Australia

try the slide bars in them the get stiff and stick and let brakes rattle
Top
 Profile


Posted: Wed Oct 24, 2007 12:48 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

I get the exact same thing in my rear right. It's been s**t me for ages now. I only really notice it when I go over cats eyes tho, but it is REALLY noticable.

harddriver - HUH???



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


Posted: Wed Oct 24, 2007 6:53 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Take off your rotors and put a small smear of grease around the back on the plate and on the edge but no too much.



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Wed Oct 24, 2007 4:37 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

Quote:
Take off your rotors and put a small smear of grease around the back on the plate and on the edge but no too much.


i dont really know what you mean by plate, which plate is it. Any chance you could take a photo or find a photo with the plate in it?
thanks



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Wed Oct 24, 2007 7:17 pm
Fordmods Newbie
Offline

Age: 31

Posts: 18

Joined: 10th Jun 2006

Location: Sydney
NSW, Australia

id pull the pads out and put grease on the shims where the pads slide
Top
 Profile


Posted: Wed Oct 24, 2007 9:59 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

I just had all rotors and pads changed less than a month ago. I asked them to grease everything up and told them about the rattle. They reckon they couldn't find it but put grease on everything that moved... It still squeaks



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


Posted: Wed Oct 24, 2007 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

lol, i got the same fukn squeak in the right rear. ive looked at everything i can think of, shocker bolts, swaybar mounts, brake calipers, pads, handbrake and never found it.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Wed Oct 24, 2007 11:42 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

ive got it booked in to brakes plus on friday, will see what they say.
ive put some CRC stop squeak stuff on the back of the pads and that didnt help.
its such an embrassing noise.



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Thu Oct 25, 2007 6:22 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

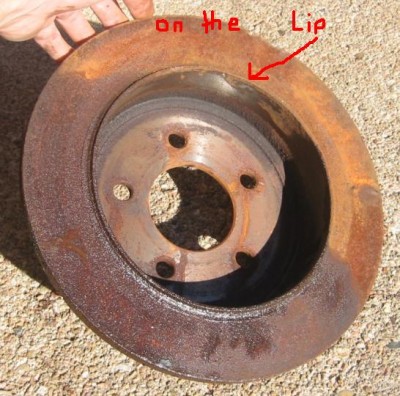

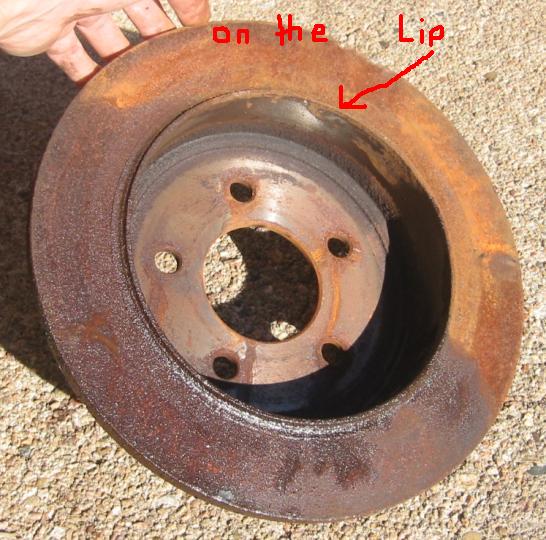

On the lip





Attachments:
brake.JPG [ 66.42 KiB | Viewed 54 times ]



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Thu Oct 25, 2007 6:30 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

thats one i havent tried, didnt know it was a seperate plate, lol.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Thu Oct 25, 2007 6:31 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

lol my bad, Cause when ur on the brake he said it stops, and I figure because the rotor is being held by the caliper so theres no play or any type of movment.



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Fri Oct 26, 2007 12:04 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

havent tried that, will try it tomorrow, so just a small bit of grease on here?



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Fri Oct 26, 2007 6:19 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Yep just a tad,



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Fri Oct 26, 2007 12:27 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

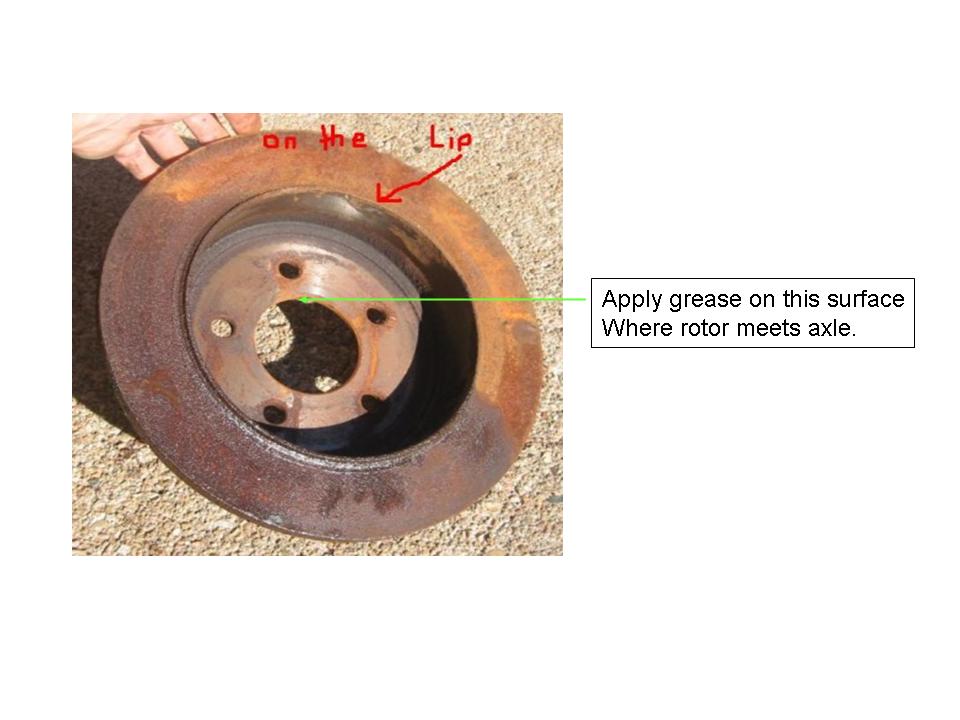

I wouldnt apply grease to "lip" as shown in bottom pic as if any does spin out onto braking surface it will damage (glaze) the brake pads and reduce braking power. I did however find if grease is applied to the inner surface where rotor meets axle it did stop a squeek the same if not similar to what the problem has been described. See pic that i borrowed sorry!





Attachments:
rot1.jpg [ 57.71 KiB | Viewed 57 times ]
Top
