SX Terri Rear Brakes on a BA Sedan ??



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: SX Terri Rear Brakes on a BA Sedan ??
Posted: Sun Aug 12, 2007 10:32 am
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Does anyone know if the rear 328mm Ventilated rear brakes on an SX Territory will fit on a BA Sedan, replacing the 303mm solids?

I know that the BF rears are a straight swap.

I also know that the SX Terri rear discs are identical in that they have the same diameter, same thickness, same runout parameters, and the same park brake allignment tools are used.

I took some pics from the back of our SX and our BA. The only thing that may be different is the offset of the disc from the hub. But man, it looks close.

Pics up shortly.


Lukeyson
Top
 Profile


Posted: Sun Aug 12, 2007 10:35 am
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Caliper Comparison





Attachments:

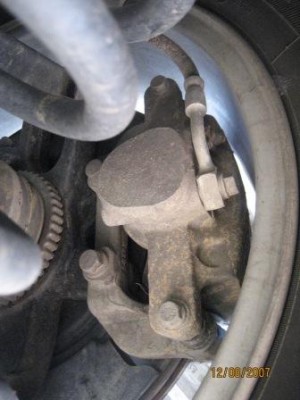

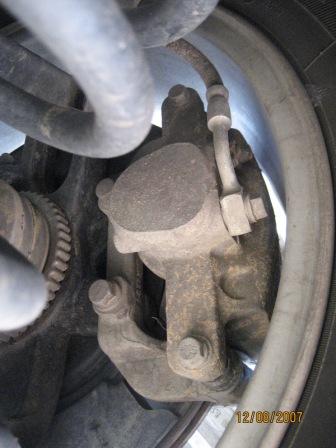

File comment: BA Falcon Calipers - 303mm Solids
IMG_1401_BA_WEB.jpg [ 23.02 KiB | Viewed 216 times ]

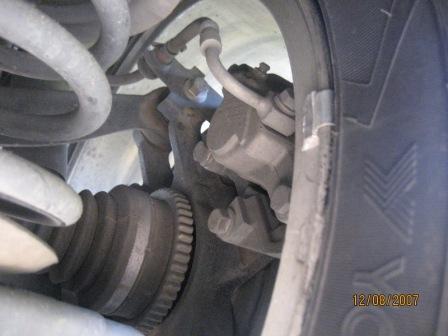

File comment: SX Territory Caliper - 328mm ventilated
IMG_1399_SX_WEB.jpg [ 26.15 KiB | Viewed 262 times ]
Top
 Profile


Posted: Sun Aug 12, 2007 10:37 am
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Calipers and Hubs





Attachments:

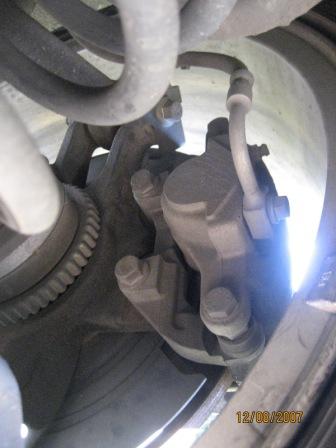

File comment: BA Falcon Caliper and Hub - 303mm Solid
IMG_1402_BA_WEB.jpg [ 22.8 KiB | Viewed 186 times ]

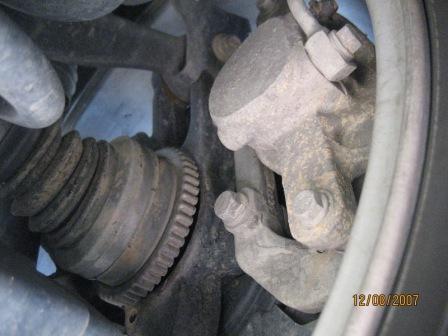

File comment: SX Territory - 328mm ventilated
IMG_1400_SX_WEB.jpg [ 25.5 KiB | Viewed 226 times ]
Top
 Profile


Posted: Sun Aug 12, 2007 12:22 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 11788

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Sure will
thats basically what the bf xr6 turbos and bf xr8's have now



_________________

Nicko

Top
 Profile


Posted: Sun Aug 12, 2007 12:37 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 576

Joined: 4th May 2007

Ride: BA

Location: Mighty Melbourne
VIC, Australia

It will fit on the front, But you have to run a longer brakeline, different mounting bracket, and a minimum of 17' rims...


I say this, because I upgraded a few months ago with the vented discs...



_________________

mmmmmmmmmunchy!

Top
 Profile


Posted: Sun Aug 12, 2007 1:12 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Well, I have the BF fronts on at the moment thanks to the FTG upgrade.

So I know the BF rears will likely go on.

So just to be clear, we're all saying that the SX Rears are a straight swap on a BA? With no brake line or bracket issues?

Given there's probably quite a few more SX Territories in the scrapper than BF XR's it made sense for me to investigate...


Lukeyson
Top
 Profile


Posted: Sun Aug 12, 2007 3:08 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 11788

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

yeah they will go straight on

FTG sell this upgrade also brand new



_________________

Nicko

Top
 Profile


Posted: Sun Aug 12, 2007 5:24 pm
Oompa Loompa
Offline

Posts: 30

Joined: 23rd Oct 2006

Location: Melbourne
VIC, Australia

Nicko wrote:
yeah they will go straight on

FTG sell this upgrade also brand new



Almost correct guys. I have just completed this conversion two weeks ago on my BA.

This what you need to have and do:
1. Territory rear callipers and rotors.
2. Territory brake hoses which have the body brackets integrated (Standatd BA hoses will not do)
3. Either install Territory backing plates OR cut approximately 20mm either side of the calliper opening to accommodate the larger calliper.
4. A bit of patience working with handbrake setup
5. 17" rims

There you are, easy !
Top
 Profile


Posted: Sun Aug 12, 2007 7:14 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Yeah, I have the FTG brand-new front conversion.

Looking for the a***-cheap way for the rears. Would probably go with RDA's on the back though.


Lukeyson
Top
 Profile


Posted: Sun Aug 12, 2007 7:39 pm
Getting Side Ways
Offline

Age: 34

Posts: 554

Joined: 24th Mar 2007

Gallery: 2 images

Ride: ef 5 speed

Location: melbourne
VIC, Australia

should go we just got 2 rear end bf falcon diff and shafts and discs and stuff and a terriory one and they are prttey much the same



_________________

i am in need of a new front bar or good condation secondhand for a 95 ef futra,
lsd for a for ef ,modifed au sump to go in and ef , working air con compressor

Top
 Profile


Posted: Sun Aug 12, 2007 11:21 pm
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

For those of you who have done the conversion, how did you find the difference?

I'm just accumulating the last of the parts I need to do my AU3 wagon, and I'm hoping it'll be a fair bit better (not that it's too bad now anyway).
Top
 Profile


Posted: Mon Aug 13, 2007 9:06 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 11788

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Private9 wrote:
For those of you who have done the conversion, how did you find the difference?

I'm just accumulating the last of the parts I need to do my AU3 wagon, and I'm hoping it'll be a fair bit better (not that it's too bad now anyway).

Justin - i dont think you will be able to fit these on to an au rear live axle
It will fit BA irs

However you could upgrade the fronts to territory spec



_________________

Nicko

Top
 Profile


Posted: Mon Aug 13, 2007 8:07 pm
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

Nicko wrote:
Private9 wrote:
For those of you who have done the conversion, how did you find the difference?

I'm just accumulating the last of the parts I need to do my AU3 wagon, and I'm hoping it'll be a fair bit better (not that it's too bad now anyway).

Justin - i dont think you will be able to fit these on to an au rear live axle
It will fit BA irs

However you could upgrade the fronts to territory spec


Don't tell me that!!!

I have heard of conversions on other live axle AU's (utes in particular) but nothing on wagons so far.

A couple of brake shops I've spoken to though are confident in doing the changeover, and have indicated it's all pretty much a straight bolt in as long as I can get hold of the Terri caliper mounts and brake hoses (will be going braided for the hoses anyway, so no issue there).

Thanks,

Justin.
Top
 Profile


Posted: Mon Aug 13, 2007 9:00 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Well.

Some pricing investigations, and it looks like the Terri Rear Calipers alone are not all that cheap. While BA rears will go for $50 each, the BF/Terri rears are closer to $500 a pair - from most places I've spoken to.

Which makes me realise what a good deal the FTG package $650 is - with new bits and all, including discs and pads. So it sounds like finding a cheap way out has resulted in a dead end, or at least the other side of the full circle....


Lukeyson
Top
 Profile


Posted: Tue Aug 14, 2007 1:49 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 2516

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

Private9 wrote:
Nicko wrote:
Private9 wrote:
For those of you who have done the conversion, how did you find the difference?

I'm just accumulating the last of the parts I need to do my AU3 wagon, and I'm hoping it'll be a fair bit better (not that it's too bad now anyway).

Justin - i dont think you will be able to fit these on to an au rear live axle
It will fit BA irs

However you could upgrade the fronts to territory spec


Don't tell me that!!!

I have heard of conversions on other live axle AU's (utes in particular) but nothing on wagons so far.

A couple of brake shops I've spoken to though are confident in doing the changeover, and have indicated it's all pretty much a straight bolt in as long as I can get hold of the Terri caliper mounts and brake hoses (will be going braided for the hoses anyway, so no issue there).

Thanks,

Justin.


id certainly give it a look in, the rotors are the same iirc, and im pretty sure the calliper mounting locations are the same, it will just be clearance issues and also maybe custom lines
