T5 ratios



Page 1 of 1 [ 7 posts ]


 Post subject: T5 ratios
Posted: Sun Jan 27, 2008 10:08 am
Fordmods Newbie
Offline

Posts: 4

Joined: 27th Jan 2008

Ride: Bolwell Nagari

Location: Hunter Valley
NSW, Australia

G'day everyone.
I'm new to this forum. I don't own a Ford as such but I have a Bolwell Nagari which runs Ford bits. ie 302 Clevo, top loader,XY XW front stubs, discs etc, modified xy xw diff.

I'm thinking of fitting a T5 to get the overdrive 5th. Can anyone tell me where to find info relating to T5's as fitted to the aus built Falcons. There is lots of info on the net re T5's but most of what I have found relates to US market cars.
I have tried a search in this forum but at the moment the search function doesn't appear to be working for me.

I'm trying to get info re ratios, ID numbers, and if possible extension housing lengths.
Not interested in fitting a Tremec TKO or 3550 as space in the Nagari chassis is really tight and the Tremec is a bit bigger at the extension housing. I actually have a 3550 in the shed at the moment which was fitted to another Nagari that I have. This car was severly damaged in a crash and is the next project. When the gear box was fitted (not by me) the whole engine and gearbox was moved about 60mm forward in the chassis. I'm not sure if this was done because of clearance in the chassis problems or just to get the shifter in the right place. ( who ever installed it was pretty rough in their work)
Anyway I would really appreciate any info any one can point me to.

thanks in advance
bollie7
Top
 Profile


Posted: Sun Jan 27, 2008 12:12 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

1st = 3.25
2nd = 1.99
3rd= 1.29
4th = 1.00
5th = 0.72
rev = 3.15
the length of the extention housing is 375mm from the end of the gearbox.
from the bellhousing its 775mm
and the length from the bell housing to the centre of the shifter in neural is 710mm.
hope this helps.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Sun Jan 27, 2008 1:34 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 27th Jan 2008

Ride: Bolwell Nagari

Location: Hunter Valley
NSW, Australia

Flash
Thanks and yes it does help. What model Falcon are these for? also is it a 6 or V8? Do you know if the T5 fitted to the falcons are the same length for all the models they were fitted to?
thanks
bollie7
Top
 Profile


Posted: Sun Jan 27, 2008 3:53 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Yeah there pretty much all the same except the later models had a lower first gear (like 2.98 or something) put in them so they rev for longer in first. there is only minor changes internally between v8 and six, this is the six cylinder specs but all the dimentions are the same on the outside except of course the bolt pattern for the eight is differant.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Sun Jan 27, 2008 5:00 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

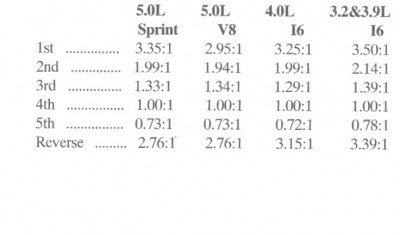

here are the different t5 ratios..





Attachments:
t5 ratios.jpg
t5 ratios.jpg [ 57.3 KiB | Viewed 62 times ]
Top
 Profile


Posted: Sun Jan 27, 2008 5:11 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

the v8 box is also stronger, and has a different length input shaft. (i believe its shorter, but dont quote me)


mitch



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Sun Jan 27, 2008 8:11 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 27th Jan 2008

Ride: Bolwell Nagari

Location: Hunter Valley
NSW, Australia

Thanks Gents
Info very helpful

regards
bollie7
