 Post subject: T5 Wiring, and short shifter Q
Posted: Wed Apr 22, 2009 4:16 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Ok here we go again, I couldn't find this anywhere so i have started a thread, when it's answered feel free to wipe it.

First question:

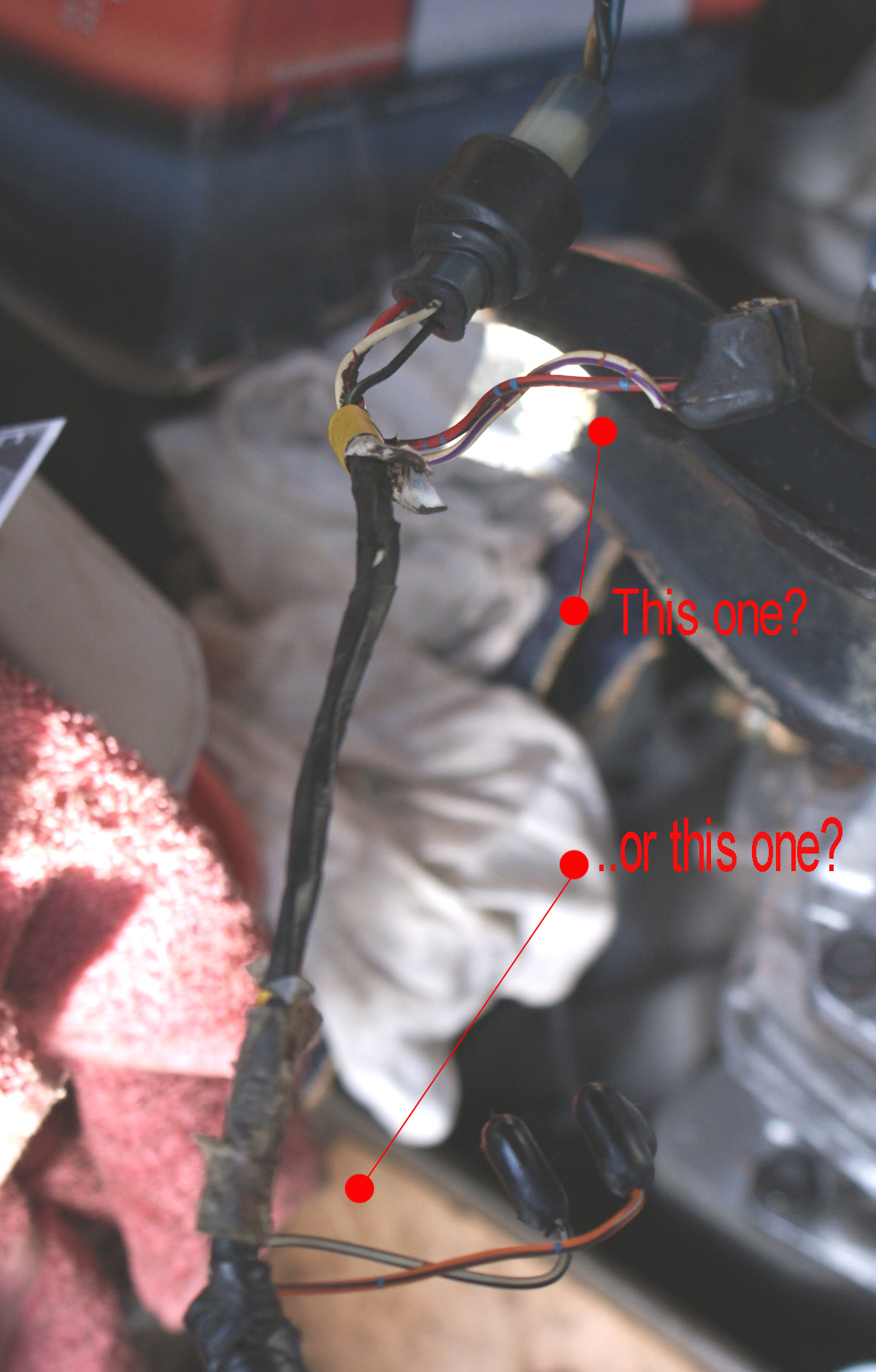

I have a T5 loom with speedo plug, and 2 pairs of female connectors, but my V8 T5 only has the speedo sender and one pair of Male connectors, on the left hand side. So I'm guessing the left hand side plug is the reverse sender, brings me back to the loom, what pair of females do i plug onto this? and does it matter if i just leave the other pair hanging? See pic.



Second Question:

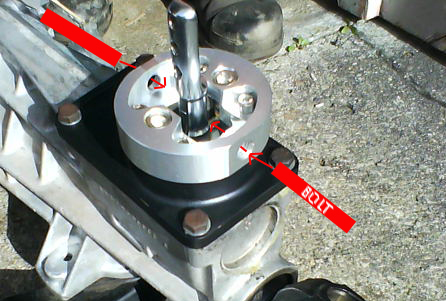

I just bought a shoft shifter for my T5, have installed it, but, it came with a whole load of extra screws and funny threaded things, instead of me babbling on, this pic explains it all! Why do i put these screws in? how far do i put them in? does it matter if i don't put them in?


Third question: How the hell do i remove that bastard TCM?! it's impossible to get hands let alone tools up in there to take the nuts off, i managed to get the bottom two off, but not the top one.





Attachments:
DSC00532.JPG [ 290.8 KiB | Viewed 37 times ]
DSC01170.jpg [ 135.05 KiB | Viewed 24 times ]



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Wed Apr 22, 2009 5:33 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

They are your shift stops.
You put those in and adjust them so you can select each gear properly, then tighten the nut to lock it in place.
You do this so you can slam your gear changes without worrying about damaging the shift forks in the gearbox.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Wed Apr 22, 2009 6:16 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

with the wiring on the t5.
the 2 plugs close to the speedo drive plug are for the reverse lights and the other 2 are for the neutral switch that is near the top pasenger side front of the gear box
Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Wed Apr 22, 2009 6:47 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Ah cool, cheers for that. My T5 only has one set of plugs, thats the reverse plug, its an AU Tremec T5.... i cant find another set anywhere on the box??



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 9:15 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

The other wires that would normally go on the neutral switch will need to be connected so that the car will crank over. I would also suggest that you wire up the car so that it will only start with the clutch pushed in. Otherwise the car will drive away from you if you start it in gear.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 3:34 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

BenJ wrote:
The other wires that would normally go on the neutral switch will need to be connected so that the car will crank over. I would also suggest that you wire up the car so that it will only start with the clutch pushed in. Otherwise the car will drive away from you if you start it in gear.

BenJ


so i can just solder the other two neutral wires together?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 3:48 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

it doesnt matter as they are only there to tell your ecu if its in gear or not...
the car will still start if there not connected..
mine neutral switch wires are pluged into the switch in the box but not connected to the engine bay loom..
so dont worry about them...
Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 3:55 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Sweet cheers, have just twisted them together and covered them up, done the throw limiter bolts on the shifter also, things so simple.... :oops:



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Alright sweet, so that's all sorted, now how do i get that bastard TCM out? Anyone got any tips? Taking the dash off wouldn't help either as it's right in hard up against the F-wall thingy ma jiggy



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 8:36 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

s**t man I just took mine out the other day, think i used a mini socket set? Go the short shifter!



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

ok sweet, might take the seat out so i can get in there more, They always seem to put stupid s**t like that in stupid places, for example the trans loom plug is right behind my inlet manifold. good thing i'm taking that off!

You know you want a short shifter now! i tested it out, just sitting in the shed, moves really nice, and they aren't kidding when they say "Short" shifter



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 8:43 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

Sweet sold :D But I will be nagging you again for results once it's in the car, while I spend my pennies on a J3 in the meantime



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 8:45 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

NZEA wrote:
Sweet sold :D But I will be nagging you again for results once it's in the car, while I spend my pennies on a J3 in the meantime


Haha yeah mate, I'll fill you in. I'm frothing at the mouth trying to get the car going, still waiting on injectors. does the J3 eliminate the need for your trans comp cause your using your auto ECU? How much is that stinging you?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 9:16 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

I took the trans comp out a while back when i put the EL ecu in, cos the EL ecu's run the trans aswell, and yeah the chip will make it a manual ecu for $130, I can make it xr6 tune or whatever, pretty sweet really!



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: T5 Wiring, and short shifter Q
Posted: Thu Apr 23, 2009 9:17 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

s**t me! thats awesome, where you get that from? is it just a piggy back type thing that makes your ECU think its an XR6 manual or is it a full replacement?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
