urgent help manual gearbox eb



Page 1 of 1 [ 6 posts ]


 Post subject: urgent help manual gearbox eb
Posted: Fri Jan 08, 2010 9:37 pm
Oompa Loompa
Offline

Age: 27

Posts: 20

Joined: 5th Aug 2008

Gallery: 1 images

Ride: EB xr6 manual

Location: In my Boxcar
SA, Australia

hey guys look im a lil stuck ive just takn my 5 speed manual gearbox out of my eb to replace the clutch and ive put it all bak together and i lookd and ive got heaps of slack in the clutch cable and then realised the fork on the bell housing was super wobly as i didnt do this part im pretty p****d but i need a picture of the of the inside of a ea to ed bellhousing as i need to kno wat the lug or bolt or wateva it is that hold the fork into place as its not there

so if any1 has any pics plzz i really need help with this and i kno im askn a bit but preferebly tonight as i gotta get my car of the hoist and driving tommoro thanks guys
Top
 Profile


 Post subject: Re: urgent help manual gearbox eb
Posted: Sat Jan 09, 2010 12:00 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

There a bolt, called a "shoulder bolt", and under that is a small plate. These items do wear out, as does the fork and should be replaced.
I will post pics later of worn out parts.

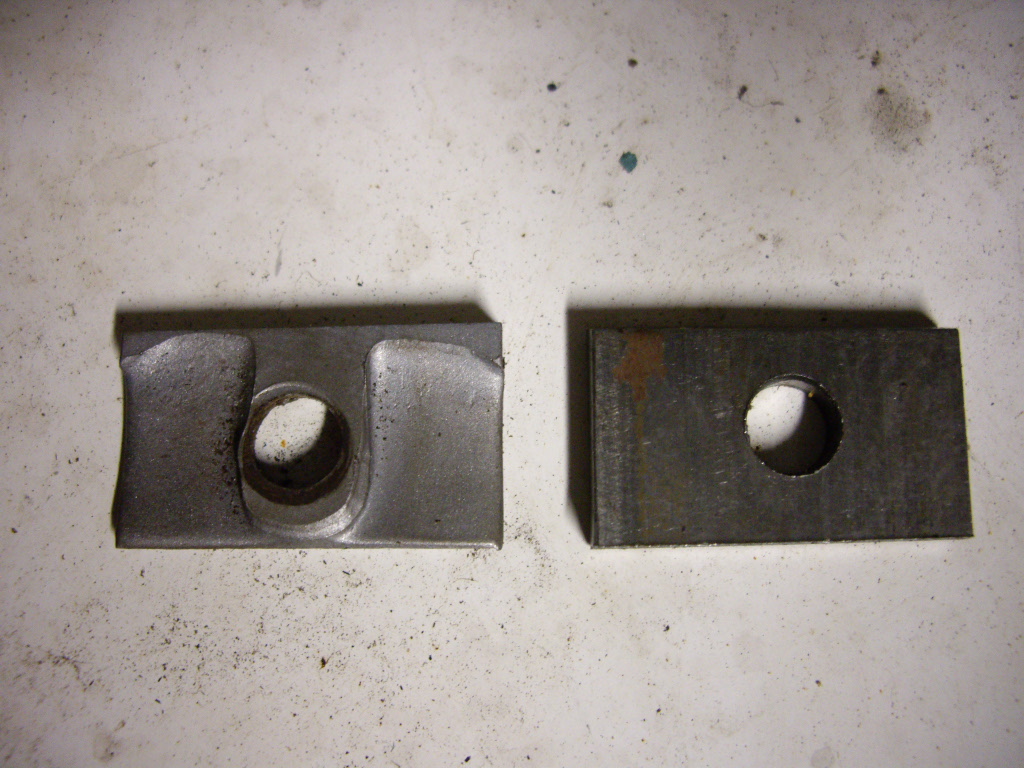

Here is an example of a worn plate. The shoulder bolt holds both the plate and the clutch fork in place, if it does not, you may need to replace all items.





Attachments:
IMGP3547.JPG [ 295.63 KiB | Viewed 40 times ]
IMGP3546.JPG [ 312.65 KiB | Viewed 36 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: urgent help manual gearbox eb
Posted: Sat Jan 09, 2010 12:08 am
Oompa Loompa
Offline

Age: 27

Posts: 20

Joined: 5th Aug 2008

Gallery: 1 images

Ride: EB xr6 manual

Location: In my Boxcar
SA, Australia

thanks a s**t load mate your a real life saver also does the bolt just thread in and were could i get these bits from
Top
 Profile


 Post subject: Re: urgent help manual gearbox eb
Posted: Sat Jan 09, 2010 12:24 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

They are available from Ford. The shoulder bolt screws into the bellhousing. Use Loctite on the thread and use high melting point grease or NeverSeize on the pivoting points, and the throw-out bearing ( inside so it slides ) and on the spline ( lightly brushed ) of the gearbox, as well as where the hook is for the clutch cable.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: urgent help manual gearbox eb
Posted: Sat Jan 09, 2010 12:54 am
Oompa Loompa
Offline

Age: 27

Posts: 20

Joined: 5th Aug 2008

Gallery: 1 images

Ride: EB xr6 manual

Location: In my Boxcar
SA, Australia

thanks a bunch man and no chance auto pro or repco might have them
Top
 Profile


 Post subject: Re: urgent help manual gearbox eb
Posted: Sun Jan 10, 2010 6:22 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Here's what a worn out clutch fork looks like, this one won't stay put, it falls out.





Attachments:
IMGP3714.JPG [ 264.84 KiB | Viewed 43 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
