What Ratio Would my diff be?



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 8:15 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hey guys,

Trying to work out what ratio my diff would be its factory ford open centre the user manual isn't very helpful saying basically it could be any of these ratios...

Its an ED Falcon 93 GLi factory 5 speed... would it be a 3.23? and if I went to a 3.45 would i see much difference in torque and any more revs at 100km/hr?

Thanks,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 8:34 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Whats it rev at currently at 100kmhr?
If its 2k exact you have 3.23s. If it revs lower you'll have 3.08s.
3.45s will give you about 2200/2250 at 100kmhr.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 8:48 pm
Fordmods Newbie
Offline

Age: 33

Posts: 2

Joined: 6th Sep 2008

Ride: 89EA 4L 5speed/EL wagon/XH XR6

Location: adelaide
SA, Australia

most ea mpi 5speeds were 2.92 not sure if this was still one of the ratios in ed's
i fited a 3.23 LSD and didnt notice a lot of dif the only thing is i lost the speed out of each gear.
from memory only Auto wagons-fairlanes came with 3.23 and XR's came with 3.45 unless it was optioned from ford
Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:04 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Yeah its pretty much 2k at 100km/hr maybe 1900 to 1950 but around that mark for sure... However it did come from ford with 15's with 215/65 from memory and now has 17's with 235/45 or something like that...and they have a slightly larger circumference then the 15's...

Anyway was just curious as I have no idea and unless its an LSD they don't have the ratio written on them do they?

Thanks,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Ratio should be on it regardless.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:25 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

IIRC ED manuals were 3.27



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:44 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

IIRC?

so it'd deffinitely be 3.27 or your just offering suggestions? :S

oh would it? where is the ratio... Somewhere you can see while its still in the car?

Thanks,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:48 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Lolz, IIRC = if i recall correctly.
Should be a sticker on teh diff, to the right? of center. either was you should be able to just stick your head under and see it.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 9:58 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

oh haha cheers... would've never guessed that acronym...

I'll have to have a look next time I'm under there and see what I can't find...

Cheers...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 10:12 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if there is no sticker it will be on a small tag on one of the cover bolts..
Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Thu Aug 13, 2009 10:34 pm
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 160

Joined: 23rd Mar 2009

Ride: 96 EF Ghia wagon

Power: 122 rwkw

Location: Fairmont Lane, Windsor Gardens
SA, Australia

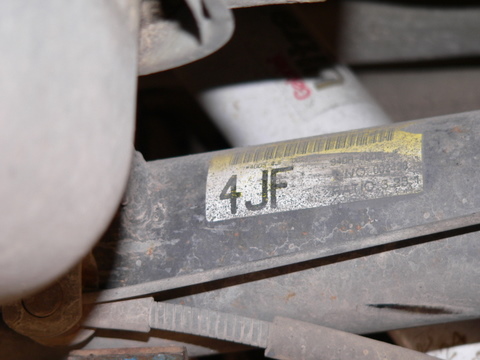

timmytimtim, look for something like this





Attachments:
3.23 LSD EFII.JPG
3.23 LSD EFII.JPG [ 79.81 KiB | Viewed 48 times ]
3.23 LSD EFII (1).JPG
3.23 LSD EFII (1).JPG [ 70.97 KiB | Viewed 46 times ]



_________________

Stock as a Rock engine option 'Z'
302 V8 auto on LPG @ 210,00km
- 121.7 rwkW / 163.3 rwHP

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Fri Aug 14, 2009 9:18 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

yeah no mine doesn't have a tag not an LSD...

That sticker has a ratio on it or that code is the ratio??? :S



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Fri Aug 14, 2009 10:03 am
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 160

Joined: 23rd Mar 2009

Ride: 96 EF Ghia wagon

Power: 122 rwkw

Location: Fairmont Lane, Windsor Gardens
SA, Australia

timmytimtim, the ratio is in small print at the bottom right hand corner of the sticker. I took pics of the tag & labels cause I CBF getting right under the wagon. Then I just zoomed into the pic back on the pc. But I'm lazy.



_________________

Stock as a Rock engine option 'Z'
302 V8 auto on LPG @ 210,00km
- 121.7 rwkW / 163.3 rwHP

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Fri Aug 14, 2009 10:08 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

I know auto ED's where nearly always 3.08:1 but Im not sure about manual ones, it will be a 3.08:1 or a 3.27:1

laticia.



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: What Ratio Would my diff be?
Posted: Fri Aug 14, 2009 10:08 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

oh I can see it now...

Sweet I'll have a look under my car and see what I can't find out...

Thanking you...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit
