Whiteline adjustable front swaybar brackets



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Whiteline adjustable front swaybar brackets
Posted: Fri Nov 09, 2007 11:45 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Anyone know if there should be any bushes or anything for the brackets that replace the link pin on an E-series Whiteline adjustable front Blade swaybar?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Fri Nov 09, 2007 1:51 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

i've got the adjustable in mine if you want to have a look



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Sat Nov 10, 2007 12:44 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

I should do when I finally come and pick up that seat!!!
I assume you didn't install it then? I don't think it has a bush in there as makes sense not to - but the instructions don't say either way...



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sat Nov 10, 2007 2:55 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

i was going to, but ran out of time. the place that did install it had to get a whiteline bloke in anyway cause they sent the wrong brackets down for it!



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Sat Nov 10, 2007 10:08 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

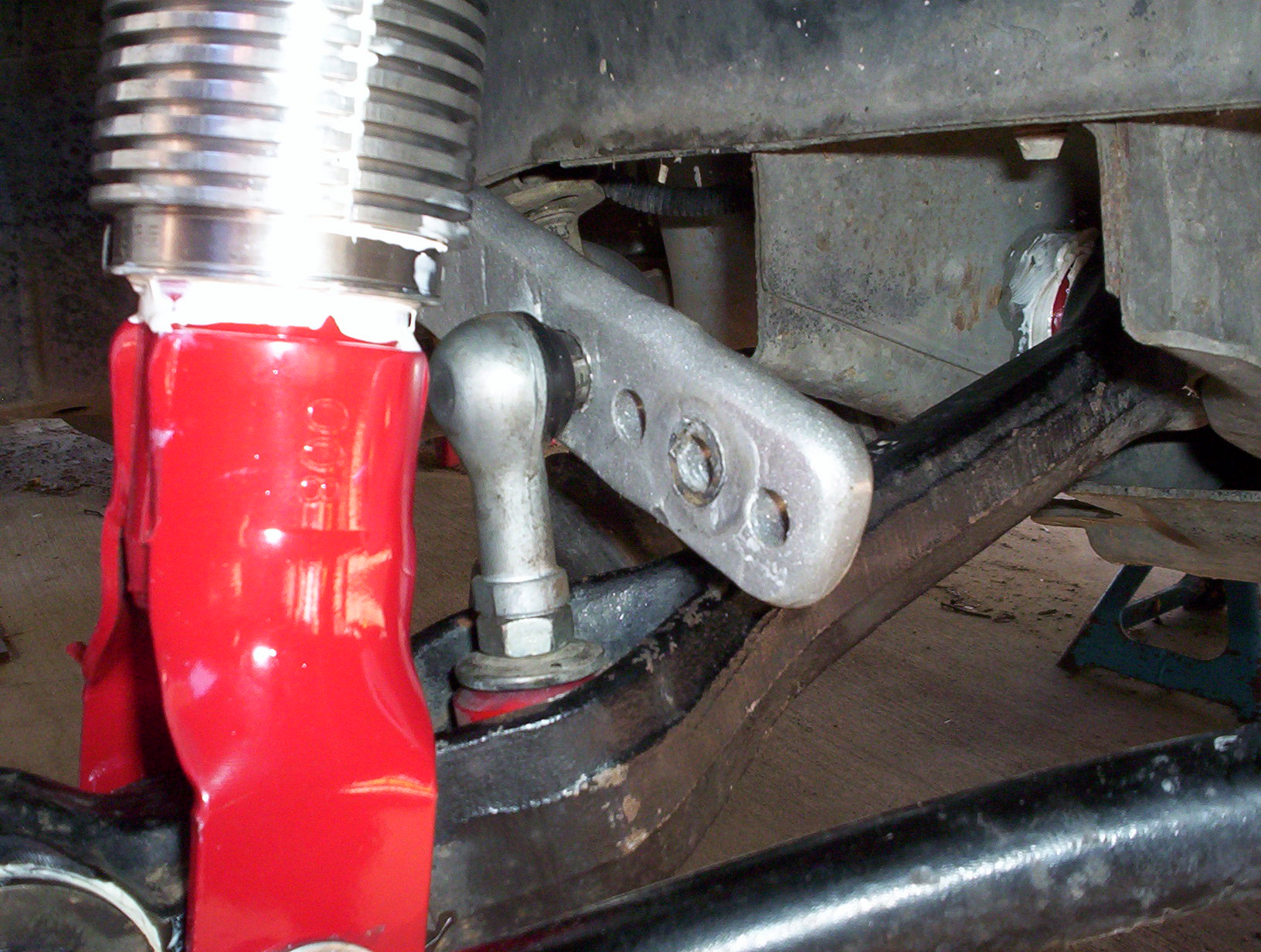

Here is my Whiteline adjustable blade, with my own outer link kits.





Attachments:
My Brakes & New shockies Jul 07 002.jpg
My Brakes & New shockies Jul 07 002.jpg [ 449.96 KiB | Viewed 57 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Nov 10, 2007 6:53 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Not much help since you've completely made new brackets...
Cheers but.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sat Nov 10, 2007 8:02 pm
Parts Gopher
Offline

Posts: 67

Joined: 21st Feb 2005

Location: Canberra
ACT, Australia

The L-bracket bolts directly to the lower control arm without any bushes. The swaybar bolts to the L-bracket using a figure 8 bracket with bushes in it.
Top
 Profile


Posted: Sat Nov 10, 2007 9:48 pm
Getting Side Ways
Offline
User avatar

Age: 85

Posts: 1088

Joined: 30th Jan 2005

Gallery: 16 images

Ride: F350

Location: Brisbane
QLD, Australia

Like this
Top
 Profile


Posted: Sun Nov 11, 2007 9:19 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

ELGT - that's not right - or at least according to the Whiteline instructions it's not. The diagram on the instructions shows that the 8 figure link should be on the same side of both the swaybar and bracket. It's on the correct side of the swaybar (the outside), but it's on the wrong side of the bracket.

What brand is that front coil over?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Nov 11, 2007 9:33 am
Getting Side Ways
Offline
User avatar

Age: 85

Posts: 1088

Joined: 30th Jan 2005

Gallery: 16 images

Ride: F350

Location: Brisbane
QLD, Australia

twr7cx wrote:
ELGT - that's not right - or at least according to the Whiteline instructions it's not. The diagram on the instructions shows that the 8 figure link should be on the same side of both the swaybar and bracket. It's on the correct side of the swaybar (the outside), but it's on the wrong side of the bracket.

What brand is that front coil over?


Thats the only way they would fit, and hence why I never ran them like that, because I felt the bars were good, but the rest of the mounting architecture was very poor quality, and not worth using.
Coilovers were made by me, using Bilstein shocks, eibach springs, koni collars and seats, and fabbed top mounts.
Top
 Profile


Posted: Sun Nov 11, 2007 9:52 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

The bottom half (which is all I can see in that photo) looks a lot like the Nolathane/Pedders coil overs I have in the front of my EF.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Nov 11, 2007 9:53 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ELGT wrote:
twr7cx wrote:
ELGT - that's not right - or at least according to the Whiteline instructions it's not. The diagram on the instructions shows that the 8 figure link should be on the same side of both the swaybar and bracket. It's on the correct side of the swaybar (the outside), but it's on the wrong side of the bracket.

What brand is that front coil over?


Thats the only way they would fit, and hence why I never ran them like that, because I felt the bars were good, but the rest of the mounting architecture was very poor quality, and not worth using.
Coilovers were made by me, using Bilstein shocks, eibach springs, koni collars and seats, and fabbed top mounts.



Thats what I found with the brackets supplied with the front bar too, just crap. So, went about and figured a better way. The adjustable brackets eventually make a rattling noise, another reason I p!ssed them off.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Nov 11, 2007 11:51 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

I found the washers they provide for the nut on the adjustable brackets is too small, it's not much bigger than the hole and got bent badly when I torqued it to 35nm.
I've changed this.
This is the 4th Whiteline product I've purchased now, and the 3rd that I've not been overly impressed with.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Nov 11, 2007 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3531

Joined: 5th Nov 2004

Gallery: 25 images

Ride: 93 Maverick LWB/S2 LWB Delica

Power: 75 rwkw

Location: uoʇǝlƃuıs lʍoq ʇsnp
NSW, Australia

ELGT wrote:
twr7cx wrote:
ELGT - that's not right - or at least according to the Whiteline instructions it's not. The diagram on the instructions shows that the 8 figure link should be on the same side of both the swaybar and bracket. It's on the correct side of the swaybar (the outside), but it's on the wrong side of the bracket.

What brand is that front coil over?


Thats the only way they would fit, and hence why I never ran them like that, because I felt the bars were good, but the rest of the mounting architecture was very poor quality, and not worth using.
Coilovers were made by me, using Bilstein shocks, eibach springs, koni collars and seats, and fabbed top mounts.



Thats what I found with the brackets supplied with the front bar too, just crap. So, went about and figured a better way. The adjustable brackets eventually make a rattling noise, another reason I p!ssed them off.
twr7cx wrote:
I found the washers they provide for the nut on the adjustable brackets is too small, it's not much bigger than the hole and got bent badly when I torqued it to 35nm.
I've changed this.
This is the 4th Whiteline product I've purchased now, and the 3rd that I've not been overly impressed with.


This thread should be forwarded to Whiteline, maybe it might make a difference, they might fix the problem and start testing before releasing to the public.



_________________

93 Ford Maverick LWB automatic petrol guzzler (gets stuck where Deli doesn't, big pumpkins :evil:)
97 S2 Mitsubishi Delica LWB (off the road getting v8 transplant) http://tmacmechanical.com.au/

Top
 Profile


Posted: Sun Nov 11, 2007 9:45 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Macca wrote:
This thread should be forwarded to Whiteline, maybe it might make a difference, they might fix the problem and start testing before releasing to the public.


So far the only Whiteline products I've found worthwhile are direct straight replacment parts (i.e. there non-adjustable swaybars). The rear swaybar kit for my wagon (as the wagons don't come with factory rear sway bars), the strut brace and this adjustable swaybar have all shown Whitelines very piss poor R&D.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
