best position for oil return line.



Page 1 of 1 [ 11 posts ]

Post New Topic Post Reply  Previous topic Next topic

TROYMAN
 Post subject: best position for oil return line.
Posted: Mon Sep 20, 2010 8:29 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
hi guys

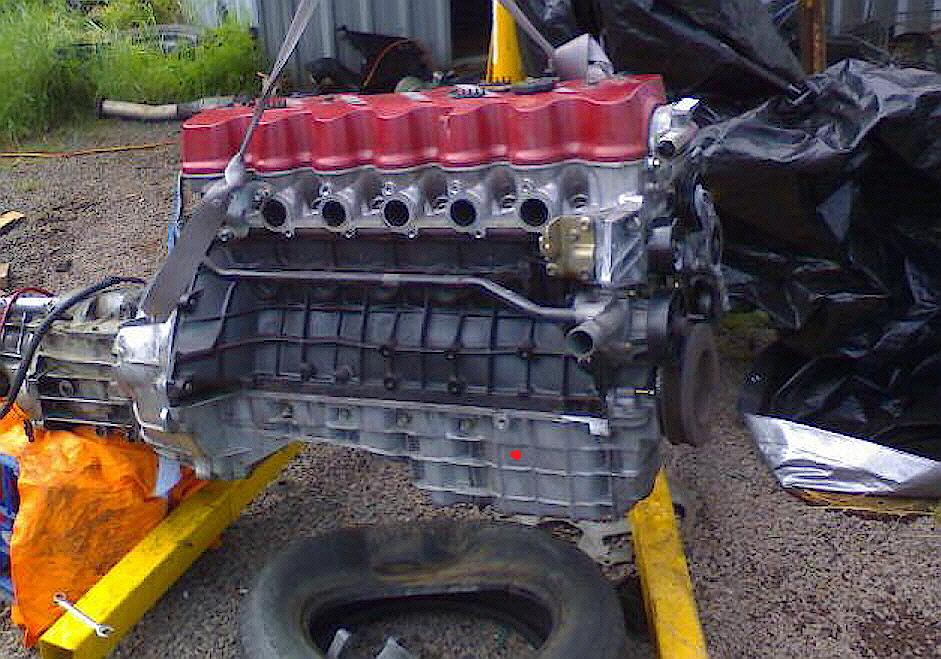

im working on a project, and im after opinions on where is the best spot to put an oil return line on an au sump??

ive marked in red where i think is a good spot in the pic below, just not 100% sure..

thanks...





Attachments:
dsc01267 sump pic.jpg
dsc01267 sump pic.jpg [ 129.71 KiB | Viewed 243 times ]
Top
 Profile


SWC
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 20, 2010 8:43 pm
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia
looks like a good position.
Top
 Profile


DormanAU
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 20, 2010 8:47 pm
Getting Side Ways
Offline

Age: 34

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia
i would put it there aslong there is nothing behind it, if it is clear you wont get a better spot.

going turbo troyman?



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P
Top
 Profile


Dansedgli
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 20, 2010 10:42 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia
My return is the in the exact spot. Make sure the fitting clears the alternator bracket before drilling a hole.
Top
 Profile


TROYMAN
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 20, 2010 10:59 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
cheers thanks..

did you use a 90 deg fitting?
Top
 Profile


Dansedgli
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 20, 2010 11:47 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia
Its a 45 degree fitting but a 90 degree one will fit too. It will need to be angled backwards a bit though.
Top
 Profile


EBXR8380
 Post subject: Re: best position for oil return line.
Posted: Tue Sep 21, 2010 10:34 pm
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia
The higher the better.. This is behind #2 main..Note clearance from alternator as Dan said..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....
Top
 Profile


TROYMAN
 Post subject: Re: best position for oil return line.
Posted: Tue Sep 21, 2010 10:38 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
EBXR8380 wrote:
The higher the better.. This is behind #2 main..Note clearance from alternator as Dan said..


cheers thanks :)
Top
 Profile


TROYMAN
 Post subject: Re: best position for oil return line.
Posted: Fri Sep 24, 2010 6:37 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

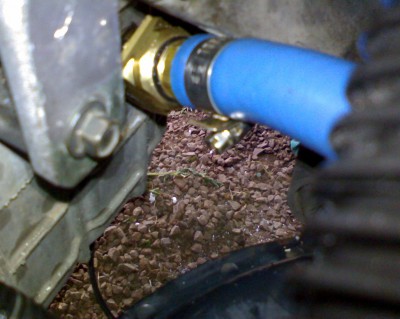

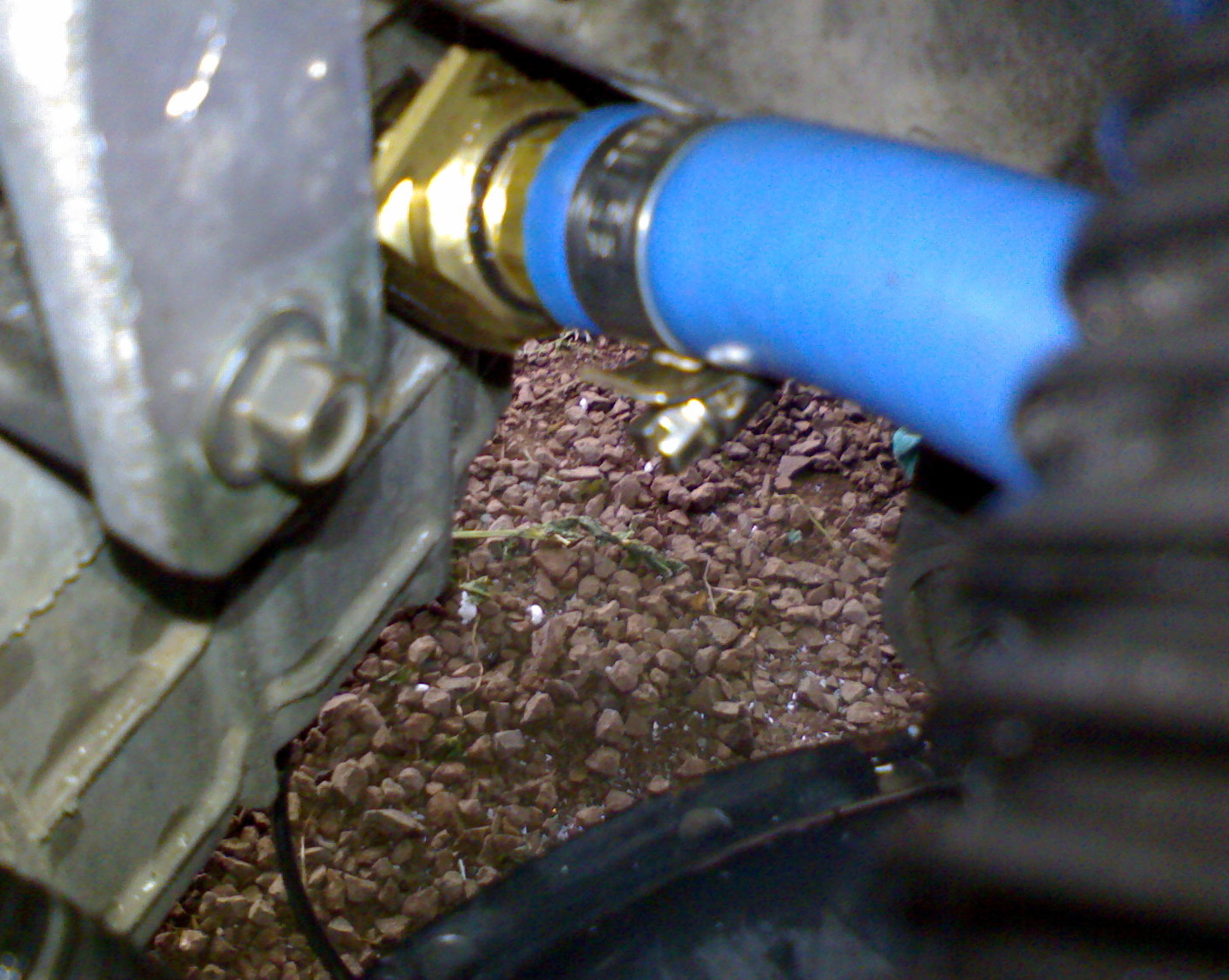

i finally fitted the return to the sump.
Attachment:
DSC01989.JPG [ 697.21 KiB | Viewed 219 times ]

on the subject of oil return..
how well does silicon hose cope with hot oil???
im a little worried about the hose, i dont want it splitting and dumping oil onto the manifold...
Top
 Profile


EBXR8380
 Post subject: Re: best position for oil return line.
Posted: Fri Sep 24, 2010 9:18 pm
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia
That why I used stainless steel flex where heat and chaffing can be an issue...
With short length of silicon hose to join...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....
Top
 Profile


Sturmovik
 Post subject: Re: best position for oil return line.
Posted: Mon Sep 27, 2010 10:22 am
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia
Silicon hose is good for over 200 degrees, just dont let it rub on anything.



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project
