Explorer Manifold Issue



Page 1 of 1 [ 15 posts ]


 Post subject: Explorer Manifold Issue
Posted: Sat Sep 25, 2010 12:44 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

Hey,

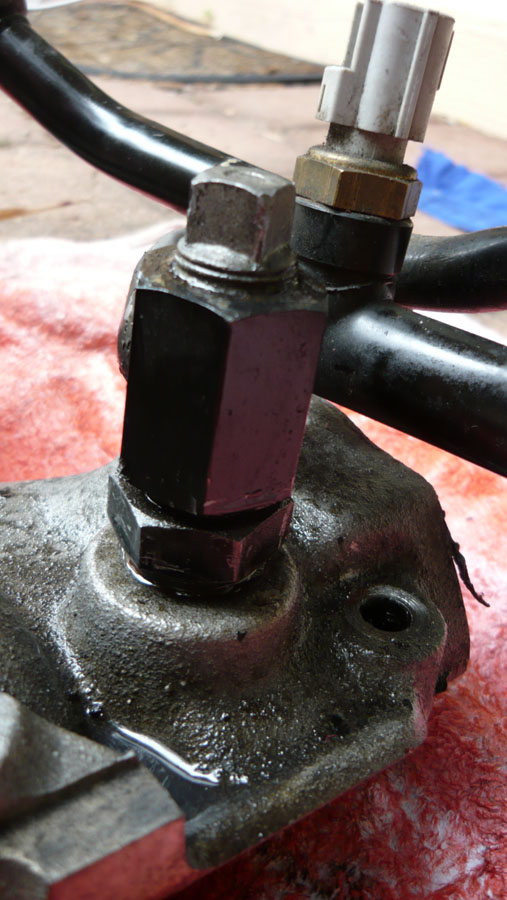

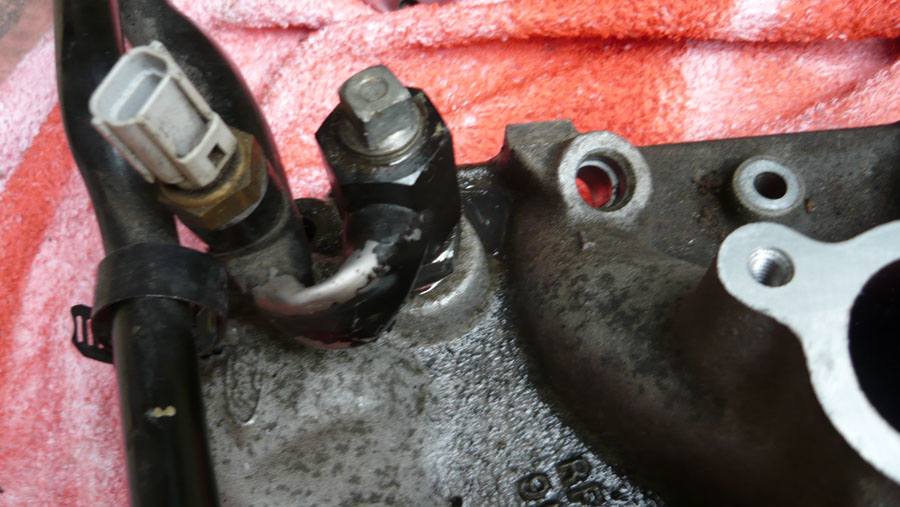

So I am in the process of cleaning up the lower manifold, but I cant seem to remove this part from it (see image)

Does anyone know what I can do to remove it?

Cheers





Attachments:
P1000845.JPG [ 121.23 KiB | Viewed 192 times ]
P1000844.JPG [ 124.25 KiB | Viewed 186 times ]



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sat Sep 25, 2010 1:50 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

You're asking us what we would use, other than the appropriate open ended spanner?



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sat Sep 25, 2010 2:00 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

Vic wrote:
You're asking us what we would use, other than the appropriate open ended spanner?


Yeah I didn't word it right.

I have been trying to remove it with a spanner but it won't budge. Just wondering if there was something else I could do...



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sat Sep 25, 2010 2:04 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

Well that bottom nut looks like it'll only take an open ended spanner so it's likely just a case of how much force you can put behind it.



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sat Sep 25, 2010 2:16 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

Vic wrote:
Well that bottom nut looks like it'll only take an open ended spanner so it's likely just a case of how much force you can put behind it.


mmm, figured as much, obviously I'm not able to put enough behind it. Might take into work and get them to have a go.

On the plus side, it cleaned up well.



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sun Sep 26, 2010 6:54 pm
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

The easiest way is to bolt the lower to an engine, then turn the bottom nut anti-clockwise.

If you can't do that, then stand the lower intake on a large block of wood vertically on it's short end (cylinder 4 & 8 end), with the fitting at the top. Put the spanner horizontal to the ground & on the nut all the way, and give it a sharp smack with a hammer in an anti-clockwise direction.

haven't found on yet that won't move with either of these techniques.



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sun Sep 26, 2010 7:00 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Be very careful when removing that nut. It is no longer available from ford. Also looks like you have damaged the heater hose judging by the almost 180 degree bend on it.

Goodluck

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sun Sep 26, 2010 7:43 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

TerroristGHIA wrote:
Be very careful when removing that nut. It is no longer available from ford. Also looks like you have damaged the heater hose judging by the almost 180 degree bend on it.

Goodluck

Brett


Yeah, I was hopping to use the one from the manifold that's on the car now.



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sun Sep 26, 2010 10:05 pm
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

A different fitting with heater hose connection here...???



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Sun Sep 26, 2010 10:08 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

EBXR8380 wrote:
A different fitting with heater hose connection here...???


I was hoping the one on the car would fit, guess I'll have to find another. This one was already bent when I got it.



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Mon Sep 27, 2010 10:35 am
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Put some heat on it



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Tue Sep 28, 2010 11:27 am
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

Can someone confirm that the heater hose is a different connection on the standard intake? Also is there somewhere I can find info on what needs to change when installing this?

Cheers



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Tue Sep 28, 2010 12:19 pm
Fordmods Addict
Offline
User avatar

Age: 38

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

no its the same, EBXR8380 was suggesting to turf that fitting and do something else, not that the thread in the explorer was different to the HO.
actually the one on an explorer, if it's off an AU, won't have the fittings for the coolant lines to the EGR anyway...



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Tue Sep 28, 2010 12:22 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 376

Joined: 21st Nov 2004

Gallery: 12 images

Ride: BA Ford Fairmont 5.4L

Location: Gold Coast
QLD, Australia

Steady ED wrote:
no its the same, EBXR8380 was suggesting to turf that fitting and do something else, not that the thread in the explorer was different to the HO.
actually the one on an explorer, if it's off an AU, won't have the fittings for the coolant lines to the EGR anyway...


Ah good, was concerned for a moment there.

It is from an AU as well.



_________________

http://www.sipheren.com

Top
 Profile


 Post subject: Re: Explorer Manifold Issue
Posted: Tue Sep 28, 2010 12:28 pm
Fordmods Addict
Offline
User avatar

Age: 38

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

yeah just use the one off your HO manifold.
once you get it off :wink:



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
