 Post subject: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 9:01 am
Fordmods Newbie
Offline

Age: 46

Posts: 16

Joined: 23rd Feb 2011

Ride: EF Falcon XR8

Location: Methven
New Zealand

Hey Fella's

The 302 Windsor engine that powers the 93 & 94 Mustang, is this the same engine in the 95 Falcon??

Cheers
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 9:25 am
Fordmods Newbie
Offline

Age: 46

Posts: 16

Joined: 23rd Feb 2011

Ride: EF Falcon XR8

Location: Methven
New Zealand

So just to confirm in the 95 Falcon is the 93' 302 windsor V8
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 9:39 am
Fordmods Newbie
Offline

Age: 46

Posts: 16

Joined: 23rd Feb 2011

Ride: EF Falcon XR8

Location: Methven
New Zealand

Under drive pulley system, and what's the little gadget connected after the pod filter, apparently it restricts the airflow, and Im kinda hoping to find a secondhand mustang one that will give you the same diameter pipe all the way through
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 1:18 pm
Getting Side Ways
Offline
User avatar

Age: 62

Posts: 1569

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

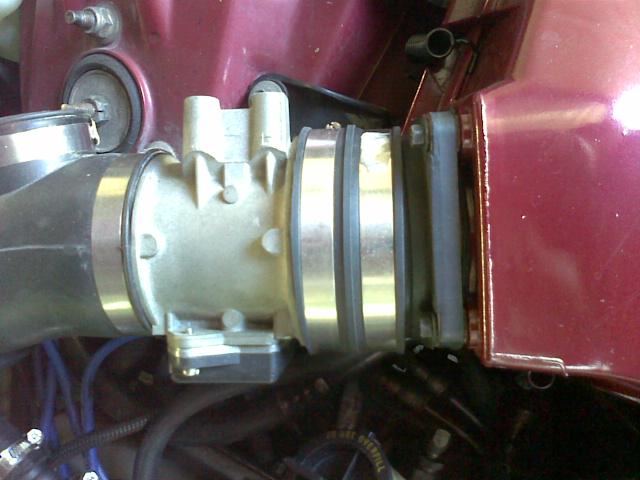

I bought one70mm MAF (Mass Air Flow) from the states for my NF 5.0 for about $65 US it has a slip on fitting at both ends - doesn't bolt to air box so is ideal for pod or modify to suit airbox as I did. Just make sure it has the right shaped plug.
Attachment:
04032011.jpg [ 44.41 KiB | Viewed 211 times ]



_________________

NF Fairlane with 5.0 and 5 speed goodness!
XE Fairmont Ghia

Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 3:29 pm
Fordmods Newbie
Offline

Age: 46

Posts: 16

Joined: 23rd Feb 2011

Ride: EF Falcon XR8

Location: Methven
New Zealand

Cheers Mate

The measurement for the MAF where is that taken from? is an internal measurement or external?
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 3:33 pm
NSW Cruise Moderator
Offline
User avatar

Age: 46

Posts: 7338

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

ID mate.



_________________


I have a car.

Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 3:39 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1887

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

You'd probably be better off trying to get hold of an AU MAF housing and bolt that up to your airbox with your stock electrics in it. Put a K&N panel filter in there and cut the front out of your airbox so it gets the cold air from behind the headlights.



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Fri Mar 04, 2011 4:02 pm
Getting Side Ways
Offline
User avatar

Age: 62

Posts: 1569

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

That's the poiny here I think, with the OZ dollar so high it's pretty cheap from the US and those AU ones aint cheap either and the plug is different too is it not?



_________________

NF Fairlane with 5.0 and 5 speed goodness!
XE Fairmont Ghia

Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Sat Mar 05, 2011 5:47 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1887

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Well, the OP is in NZ, so I don't know how their $ is compared to the US$.

You don't need the AU electrics, just the housing and bolt the stock electrics back in.



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Sat Mar 05, 2011 12:26 pm
EFI Guru
Offline

Age: 58

Posts: 4351

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

'93 is actually different to '94.
'86 to '93 has a different front dress to ours but the base engine is basically the same as ours.
The '94-'95 has a front dress similar(but not identical) to ours but the intake manifold is different.
The base 5.0 HO engine in all cases shares the same 55mm MAF. If it's a Cobra it has a 70mm MAF like the one fairlane6970 has shown in his pic. This is the same MAF used on the EB GT,ED sprint and ELGT but Ford cast up an adaptor flange to fit it to the stock airbox.
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Sun Mar 06, 2011 8:42 pm
Fordmods Newbie
Offline

Age: 46

Posts: 16

Joined: 23rd Feb 2011

Ride: EF Falcon XR8

Location: Methven
New Zealand

Cheers Guys

Awesome info....waiting on some quotes for under drive pulleys from the US....freights going to be a killer and yup paying in kiwi's, they wont take sheep or cows neither.....

So do you think I would find a 70mm MAF in an ozzie wrecking yard??
Top
 Profile


 Post subject: Re: Cross Reference EF Falocn to Mustang Engine
Posted: Mon Mar 07, 2011 1:32 am
EFI Guru
Offline

Age: 58

Posts: 4351

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

mountainboi wrote:
Cheers Guys

Awesome info....waiting on some quotes for under drive pulleys from the US....freights going to be a killer and yup paying in kiwi's, they wont take sheep or cows neither.....

So do you think I would find a 70mm MAF in an ozzie wrecking yard??


Get a set from bpt. They definitely fit and they work right.
AU Maf's are all over the place so yes.
