 Post subject: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:00 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

Hey guys need a pinout sheet for EF V8 ECU, not sure if the L6 is the same bar the injectors any helps please.

Must be EF 4 Pin lines not the EL 3 line one

THanks
Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:15 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Ill upload scans of the factory manual pin descriptions when i get back inside in a minute. I think thats its only tells you the pin number and description, no diagram. Is that ok?



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:21 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

i should be able to work out the numbers

anything would be great,

i have done a loom change and i have no fuel guage no temp, no eco switch and no shift indicator
Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:22 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

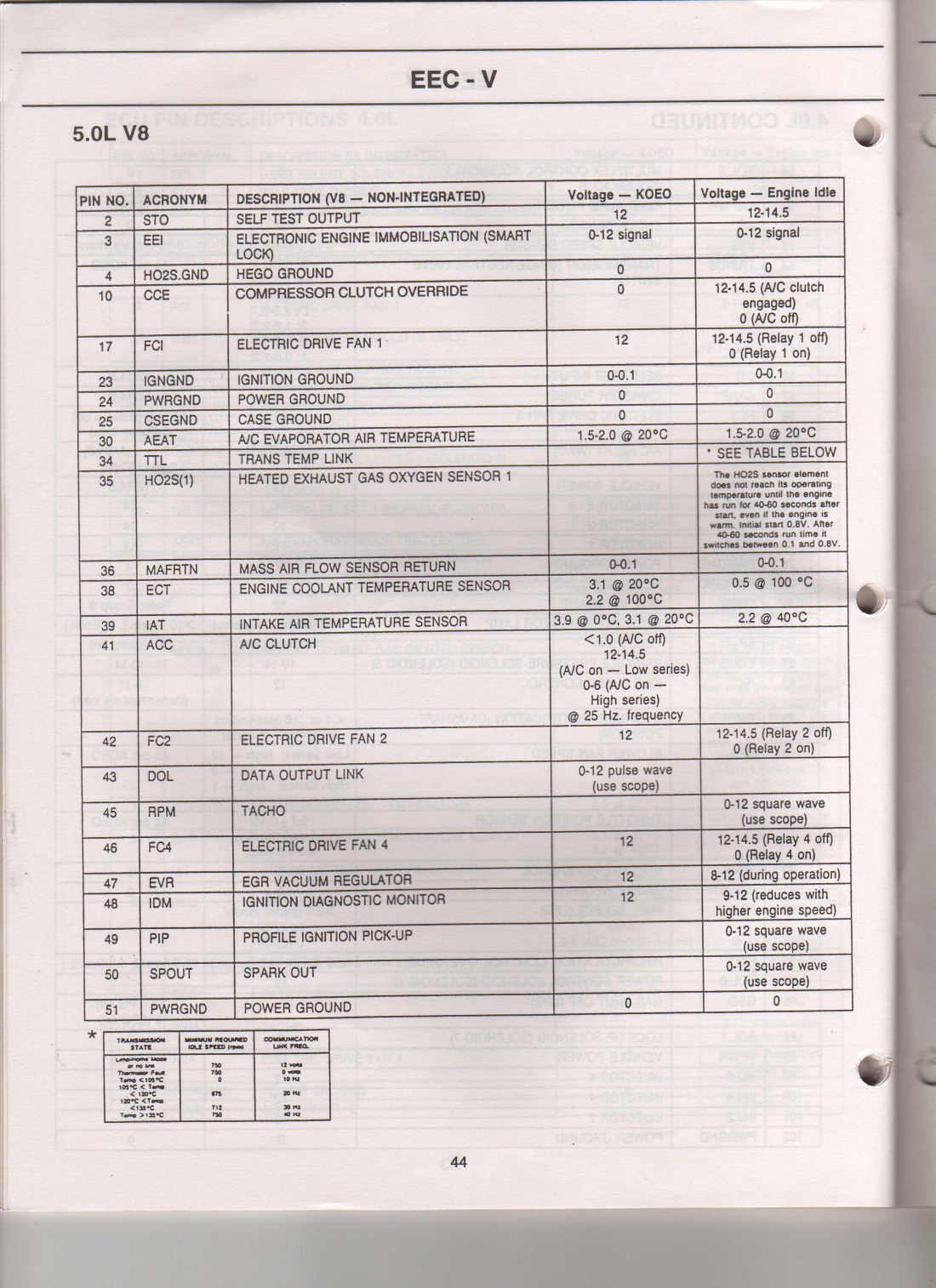

Attachment:
img173s.jpg [ 464.39 KiB | Viewed 791 times ]

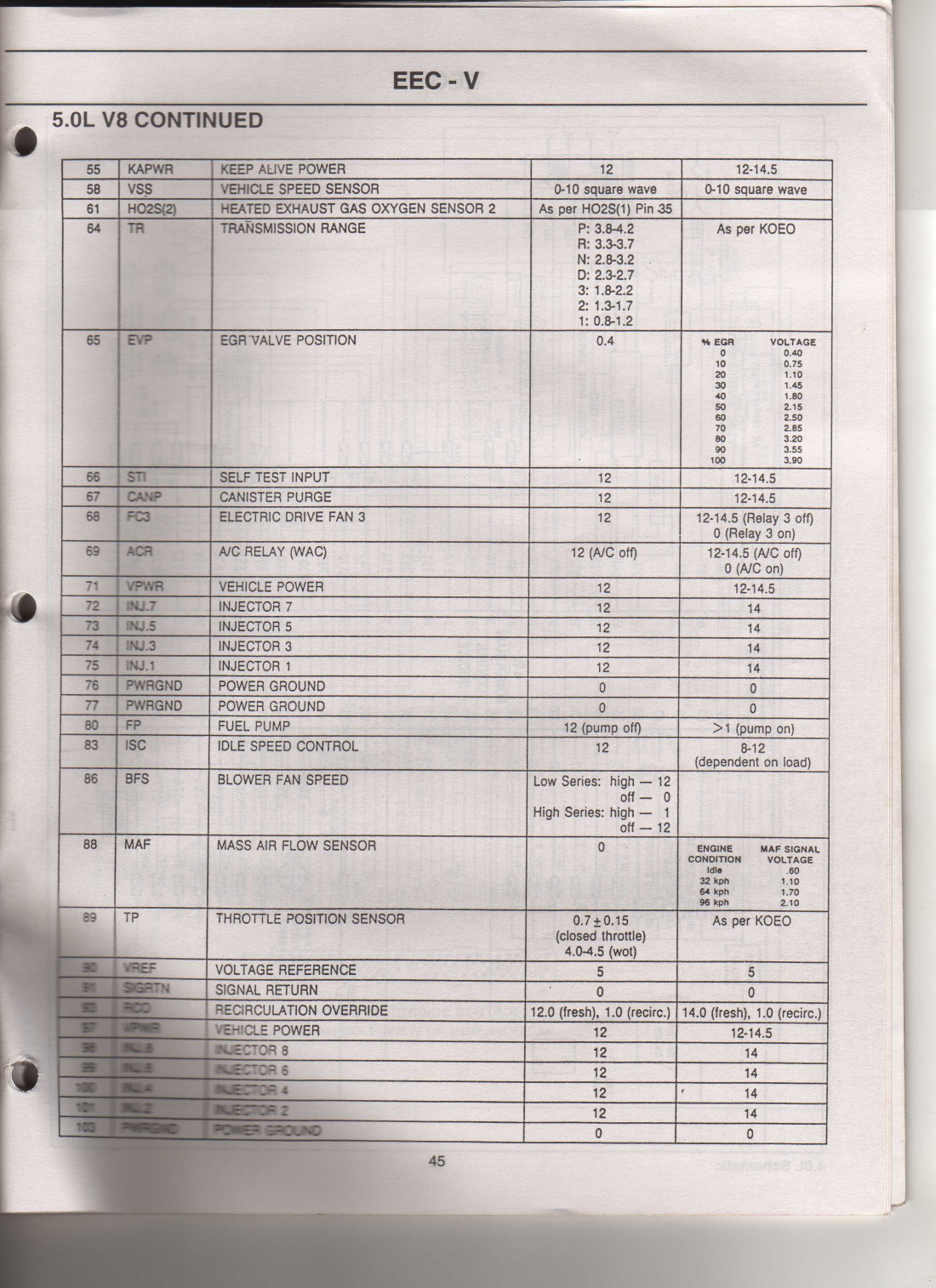

Attachment:
img174s.jpg [ 451.57 KiB | Viewed 663 times ]

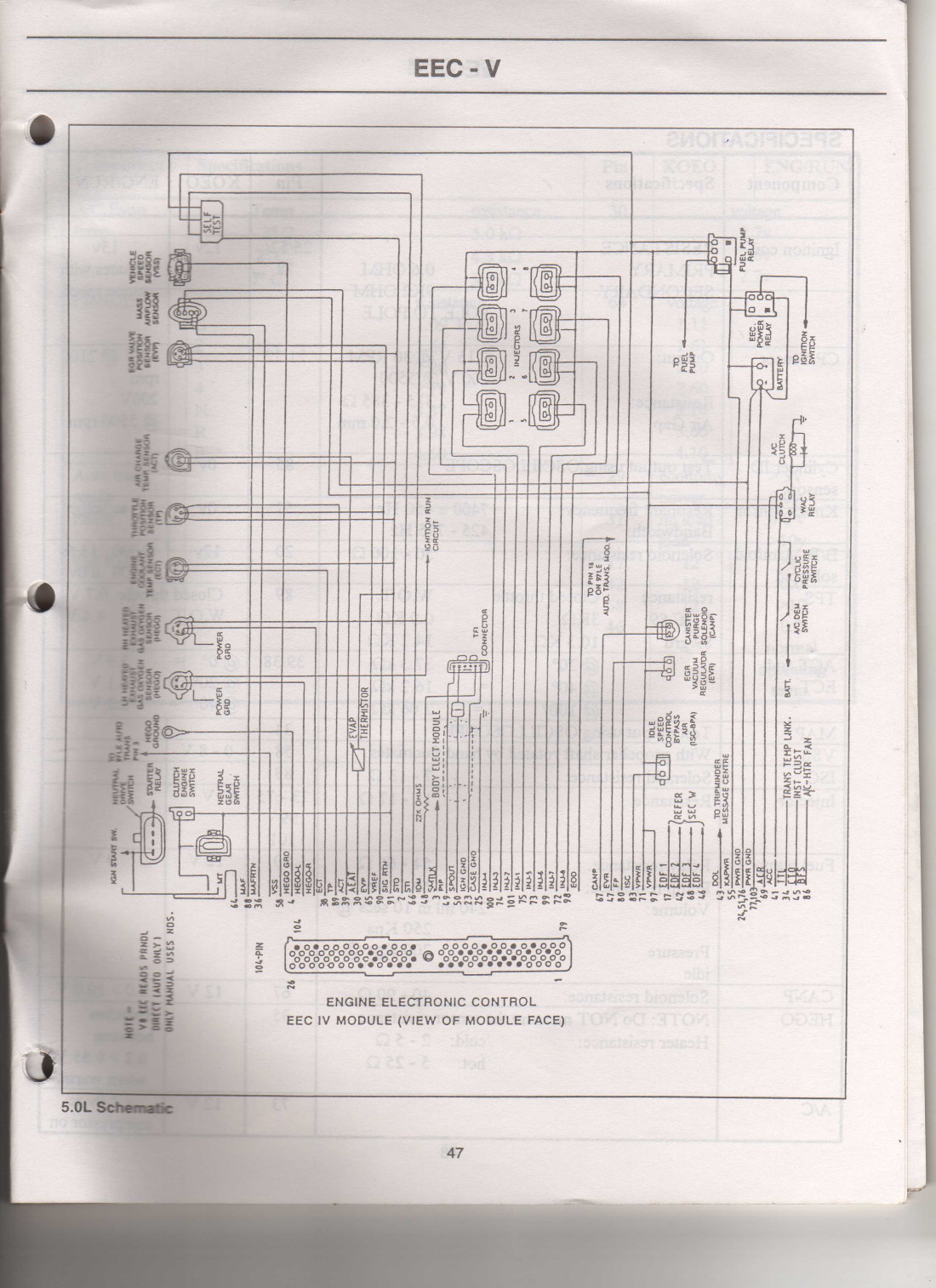

Attachment:
img176s.jpg [ 393.81 KiB | Viewed 694 times ]



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:24 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

thanks champ i should be able to work with that
Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:29 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

also, with the temp sensor, does it go to the ecu then back out to the dash or split and go to both, if anyone knows
Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:37 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

workshop manual diagram shows one wire going to pin 38 (light green/red) and one wire joins into a grey/red wire the same as tps and air charge temp sensor



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Tue Mar 12, 2013 9:39 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

bah, really dont want to pull the dash out again but looks like its 5th time lucky with the thing haha
Top
 Profile


 Post subject: Re: EF V8 Ecu Pinouts
Posted: Wed Mar 13, 2013 7:17 pm
Getting Side Ways
Offline

Posts: 2464

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Not sure if its (still) relevant, but the Temp line only goes to the ECU. Not split to the dash. The ECU uses a Data line to transmit to the Dash Engine Temp, Injector Pulse-width, Gear position and a number of other items

The EF/EL (actual engine) harness still has provision for the Temp sensor that EB ED needs (Seperate sensor, cant for life of me remember where it is without looking at the car). That wire goes to salt/pepper shaker connectors but isnt wired past there on the EEC V. on an EB ED, that then goes straight to the dash. On and EB ED you may possibly also have a seperate climate control engine temp sensor

Nigel
Top
