Ba falcon, leaking water under dash into the car???



Page 1 of 1 [ 8 posts ]


 Post subject: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 6:22 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 29th Aug 2006

Gallery: 20 images

Ride: AU fairmont ghia, XP falcon

Location: adelaide
SA, Australia

As the title says, I have a 2003 BA XT, in the last few days I have noticed the passenger front floor is all wet, water coming from under the dash.
I have checked behind the glovebox, it seems like it is coming from the fan blower motor???? or running down from behind the heater box and dripping off the fan motor.
I thought it might be the heater core leaking, but the heater hoses enter the firewall on the drivers side, and the leak is on the passenger side.
Also when turning corners sharply I hear a sloshing sound coming from the passenger side of the dash.
Any ideas would be great?



_________________

"NEAR ENOUGH IS GOOD ENOUGH"

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 6:28 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Check to see that your AC drain hose is clear.
Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 7:01 pm
Technical Contributor
Offline
User avatar

Age: 27

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Yeah with SWC...

There is drain sticking out somewhere for the condensation which forms on the condenser to run back out of the heaterbox... On E series it was on the passenger side behind the intake manifold... No idea where you'll find it on a BA but...

Jam some welding wire up and remove the spider that possibly made a home and sealed the drain off for you... Best make sure you're not under the drain when you do this if it is indeed full of water...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 7:08 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 29th Aug 2006

Gallery: 20 images

Ride: AU fairmont ghia, XP falcon

Location: adelaide
SA, Australia

cheers guys I forgot about the drain, I will have to suss it out and see if that's the problem



_________________

"NEAR ENOUGH IS GOOD ENOUGH"

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 8:40 pm
Moderator
Offline
User avatar

Age: 40

Posts: 2321

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon

Location: Western Sydney
NSW, Australia

I think the drain on the of BAs is above the transmission somewhere. May be hard to get to.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 9:57 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 29th Aug 2006

Gallery: 20 images

Ride: AU fairmont ghia, XP falcon

Location: adelaide
SA, Australia

yeah I haven't found it yet, might grab a manual from a mate and suss it out



_________________

"NEAR ENOUGH IS GOOD ENOUGH"

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Mon Feb 17, 2014 10:35 pm
Technical Contributor
Offline
User avatar

Age: 27

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Here you go...

Attachment:
falcon-ba.pdf [41.55 KiB]
Downloaded 877 times


Down the bottom in smell from HVAC... No photos to show exactly where but... Must drop out on top of the bell housing...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Ba falcon, leaking water under dash into the car???
Posted: Tue Feb 18, 2014 2:26 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 2098

Joined: 19th Jan 2005

Gallery: 9 images

Ride: 5L 5 speed Fairmont Ghia

Location: St Maoris
NSW, Australia

TimmyA wrote:
Here you go...

Attachment:
The attachment falcon-ba.pdf is no longer available


Down the bottom in smell from HVAC... No photos to show exactly where but... Must drop out on top of the bell housing...

Cheers,
Tim

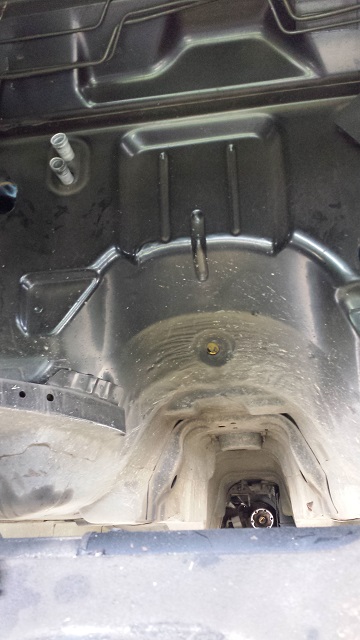

Yup. It's in the tunnel. Quickly stuck my head under my BA that is missing it's engine and box. This pic is from the steering rack looking towards the back of the car...
Attachment:
20140218_142125.jpg [ 84.52 KiB | Viewed 1386 times ]

It'd be (in this case) the yellowish tube. Enjoy.
