 Post subject: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 11:50 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

I was swapping a woodgrain radio surround with a mate yesterday when I found the following differences..

His car is an EL and the one I had to swap was off a EF from memory..

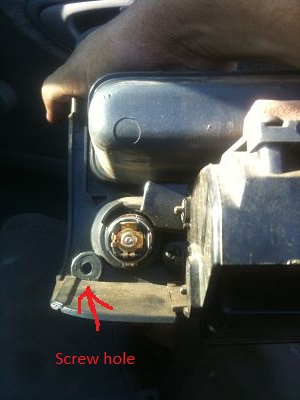

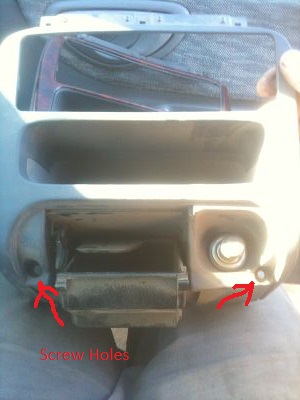

This one has 2 screw holes for mounting...
Attachment:
IMG_3696_opt.jpg [ 35.53 KiB | Viewed 34 times ]

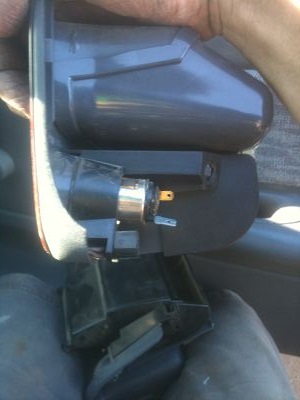

and from the back near the cigarette lighter..
Attachment:
IMG_3701_opt.jpg [ 36.83 KiB | Viewed 25 times ]

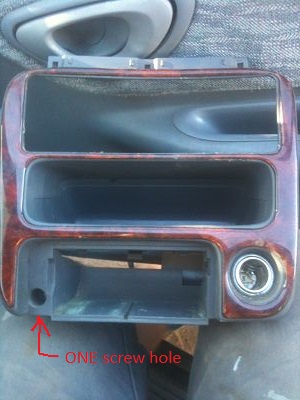

And this one only has one...
Attachment:
IMG_3697_opt.jpg [ 43.9 KiB | Viewed 35 times ]

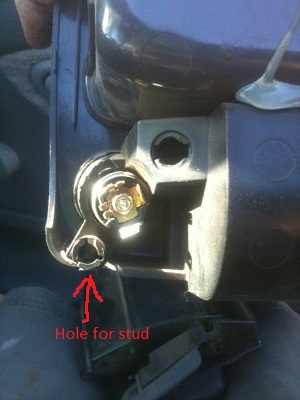

And a pop stud holds it behind the cigarette lighter..
Attachment:
IMG_3699_opt.jpg [ 35.83 KiB | Viewed 35 times ]



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Last edited by Lowlane7 on Wed Mar 26, 2014 11:53 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 11:53 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

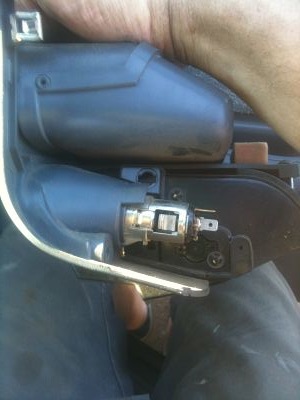

And from the side is the main visual difference...


Attachment:
IMG_3700_opt.jpg [ 33.86 KiB | Viewed 36 times ]



Attachment:
IMG_3698_opt.jpg [ 31.98 KiB | Viewed 24 times ]


As you can see one has a recessed cigarette lighter provision and the other is more flush..


Its mostly curiosity as ill make it fit, but any ideas on what the differences are about?



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 11:55 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Also the wood grain is like a plastic sticker glued to the plain grey surround, and it dosnt have felt inside the pocket under the radio hole.. The other one dose.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 12:14 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

I noticed this when my first ef Fairmont had a broken stezza surround and I accidentally bought the el gli one for it.



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 12:19 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

I just had a look too and one has 95Da as the part number, I cant see the other number cos its tucked under a lip and half hidden...



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 2:42 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The RH press mount screws out with a spanner IIRC. So you you can swap it around.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 6:29 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

the one with 2 screw holes is a series 1 ef, the ashtray lid covers the lighter, series 2 changed to one screw and the clip thing with an exposed lighter



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Do EF/EL have dash differences
Posted: Wed Mar 26, 2014 7:00 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Aha! Interesting stuff to know. It dose look easy enough to fit up.

Thanks everyone.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile
