 Post subject: au manual to electric window regulators
Posted: Sat Apr 12, 2014 10:52 am
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

after doing a quick search on the web about converting a 99 au ute manual window regulators to electric i couldn't find anything with pictures!!! So i thought i'll do i little write up.

first source the regulators, i bought my non genuine ford ones from ebay.

http://www.ebay.com.au/itm/170494653583 ... 1439.l2649

first take off the door trim. mine had a screw in the handle, two at the bottom and one on the side, yours may be different.
Attachment:
IMG_1087.JPG [ 110.78 KiB | Viewed 53 times ]


after you take of the trim panel youll see this:
Attachment:
IMG_1090.JPG [ 148.56 KiB | Viewed 42 times ]

i just ripped mine out because i'm going to put something else to replace it.
Attachment:
IMG_1091.JPG [ 141.13 KiB | Viewed 52 times ]

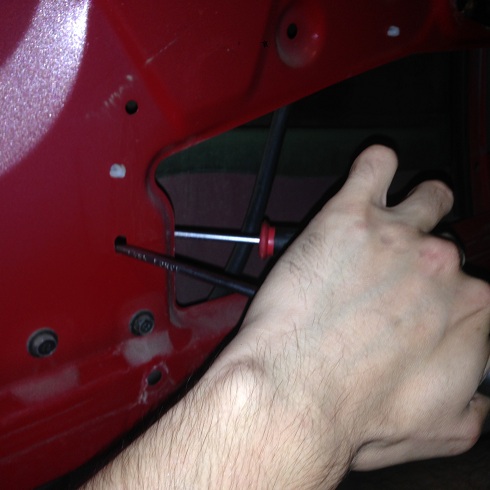

now the fun part, removing the window from the slider? (dunno)
Attachment:
IMG_1092.JPG [ 78.08 KiB | Viewed 53 times ]

Attachment:
IMG_1093.JPG [ 71.19 KiB | Viewed 55 times ]

Attachment:
IMG_1094.JPG [ 60.75 KiB | Viewed 44 times ]

after the clips are undone i lifted the window and secured it with tape.

after the window is secured undo the nuts highlighted. i started with the slider? then the three nuts securing the regulator.
Attachment:
IMG_1095.JPG [ 95.39 KiB | Viewed 55 times ]


after the regulator is out you can begin to put the new one in the same way you took the old out.

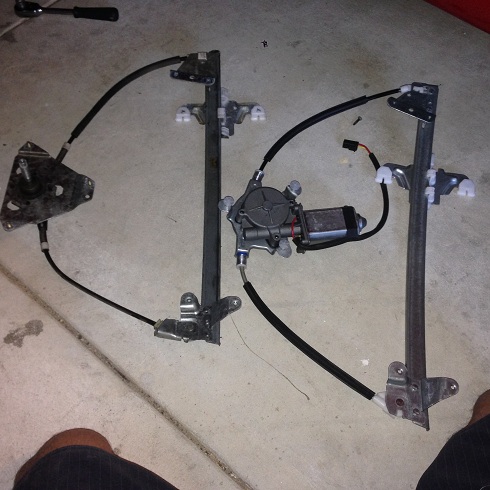

comparison:
Attachment:
IMG_1096.JPG [ 89.65 KiB | Viewed 53 times ]


bolt holes:
Attachment:
IMG_1098.JPG [ 72.04 KiB | Viewed 59 times ]

the black arrows are the old locations, the green are the new locations.

this is what it will look like when completed
Attachment:
IMG_1097.JPG [ 97.78 KiB | Viewed 50 times ]


i'm not doing a wiring section because im doing my own wiring with a couple of switches and poly-switches from jaycar.

if anyone has anything to contribute please do.

cheers,
fullyforded



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: au manual to electric window regulators
Posted: Tue Aug 12, 2014 6:07 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 87

Joined: 16th Dec 2007

Gallery: 5 images

Ride: ED Futura Classic

Location: Rye
VIC, Australia

Thanks for the info mate this will help me! I have a series 2 au ute and want to do the same, anyone know if you can pull out the door looms from a power window optioned au and plug it straight into the series 2 loom? Cheers
