Fordmods Logo

ED Cruise Control Power Wire



Page 2 of 2 [ 21 posts ] Go to page Previous  1, 2


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sat Sep 27, 2014 11:51 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

xGRDx TUBBS wrote:
Factory wiring removed from a body loom.

Also have a complete body loom and compaired wires to make sure all was there.

I had the O/Y wire connected to one wire on column loom, the cruise light would stay on and if I pressed and held the on switch it would turn off.

Moved wire to yellow wire on column and now the cruise light lights up while the engine is cranking only then turns off when car is started.

I know that the O/Y wire is for power for the cruise unit and that the on/off switch cuts power to that wire.



what wire was it then??

the O/Y wire on on/off is momentary on and turn off
Top
 Profile


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sun Sep 28, 2014 12:52 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I'll reply in here instead of to your PM so everyone knows where we are at...

The O/Y has not a thing to do with power... It is the sense wire to determine what button you have pressed... If you press on it piggy backs 12v from the horn and sends it down O/Y... If you press of it grounds O/Y... If you press set or resume it applys a resistance to ground and depending on the resistance value will determine which button was pressed... All buttons return so in the normal state (no button press) then O/Y needs to be high (inifinite) resistance to function properly irrespective of the status of the cruise...

How your wheel should have 3 brass rings in the back of it? A non cruise wheel will have 2... And your combo switch should have had 3 brass pins sticking out of it to contact these rings? And if you look in the back of the combo switch when you installed it you'll see three wires disappear into the backs of where these pins are... One was red, one was white and maybe one was yellow? So yes the wire colours do change into the column wiring...

You need a multimeter... One wire should have a circuit to ground... And one should have 12V present... These would already be working as they were the two existing horn wires... Then the third will be sense wire which hooks to O/Y... I can't check mine any more as it is now all AU wiring including cruise...

It's fairly straight forward but you need to research your combo switch make sure it has the 3 brass pins and they aren't worn out (doubt you can buy them new anymore hence I went to a clock spring AU system) then find the three coloured wires that are hooked to the pins then find the ground wire and the 12V wire and the last remaining one is the one you want... If it still doesn work you have mad a mistake hooking something else up... The ED cruise system is the hardest to retrofit, the body loom, vac pump, vac diaphragm, vac lines, vac/electric cancel switches all need to be correctly fitted and hooked together as well as all the other wiring to function properly... Would have been easier to retrofit an EF/EL style cruise system...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sun Sep 28, 2014 9:56 am
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

TimmyA wrote:
I'll reply in here instead of to your PM so everyone knows where we are at...

The O/Y has not a thing to do with power... It is the sense wire to determine what button you have pressed... If you press on it piggy backs 12v from the horn and sends it down O/Y... If you press of it grounds O/Y... If you press set or resume it applys a resistance to ground and depending on the resistance value will determine which button was pressed... All buttons return so in the normal state (no button press) then O/Y needs to be high (inifinite) resistance to function properly irrespective of the status of the cruise...

How your wheel should have 3 brass rings in the back of it? A non cruise wheel will have 2... And your combo switch should have had 3 brass pins sticking out of it to contact these rings? And if you look in the back of the combo switch when you installed it you'll see three wires disappear into the backs of where these pins are... One was red, one was white and maybe one was yellow? So yes the wire colours do change into the column wiring...

You need a multimeter... One wire should have a circuit to ground... And one should have 12V present... These would already be working as they were the two existing horn wires... Then the third will be sense wire which hooks to O/Y... I can't check mine any more as it is now all AU wiring including cruise...

It's fairly straight forward but you need to research your combo switch make sure it has the 3 brass pins and they aren't worn out (doubt you can buy them new anymore hence I went to a clock spring AU system) then find the three coloured wires that are hooked to the pins then find the ground wire and the 12V wire and the last remaining one is the one you want... If it still doesn work you have mad a mistake hooking something else up... The ED cruise system is the hardest to retrofit, the body loom, vac pump, vac diaphragm, vac lines, vac/electric cancel switches all need to be correctly fitted and hooked together as well as all the other wiring to function properly... Would have been easier to retrofit an EF/EL style cruise system...

Cheers,
Tim



thanks Tim that was a part i didn't know
Top
 Profile


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sun Sep 28, 2014 10:33 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

It is possible that non cruise wheels and combos have 3 pins too... Haven't seen one myself but two are required for a horn so I figure that non cruise wheels and/or combos probably only have 2 rings or 2 pins... If anyone has a non cruise wheel lying around feel free to stick up a photo of it...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sun Sep 28, 2014 10:36 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

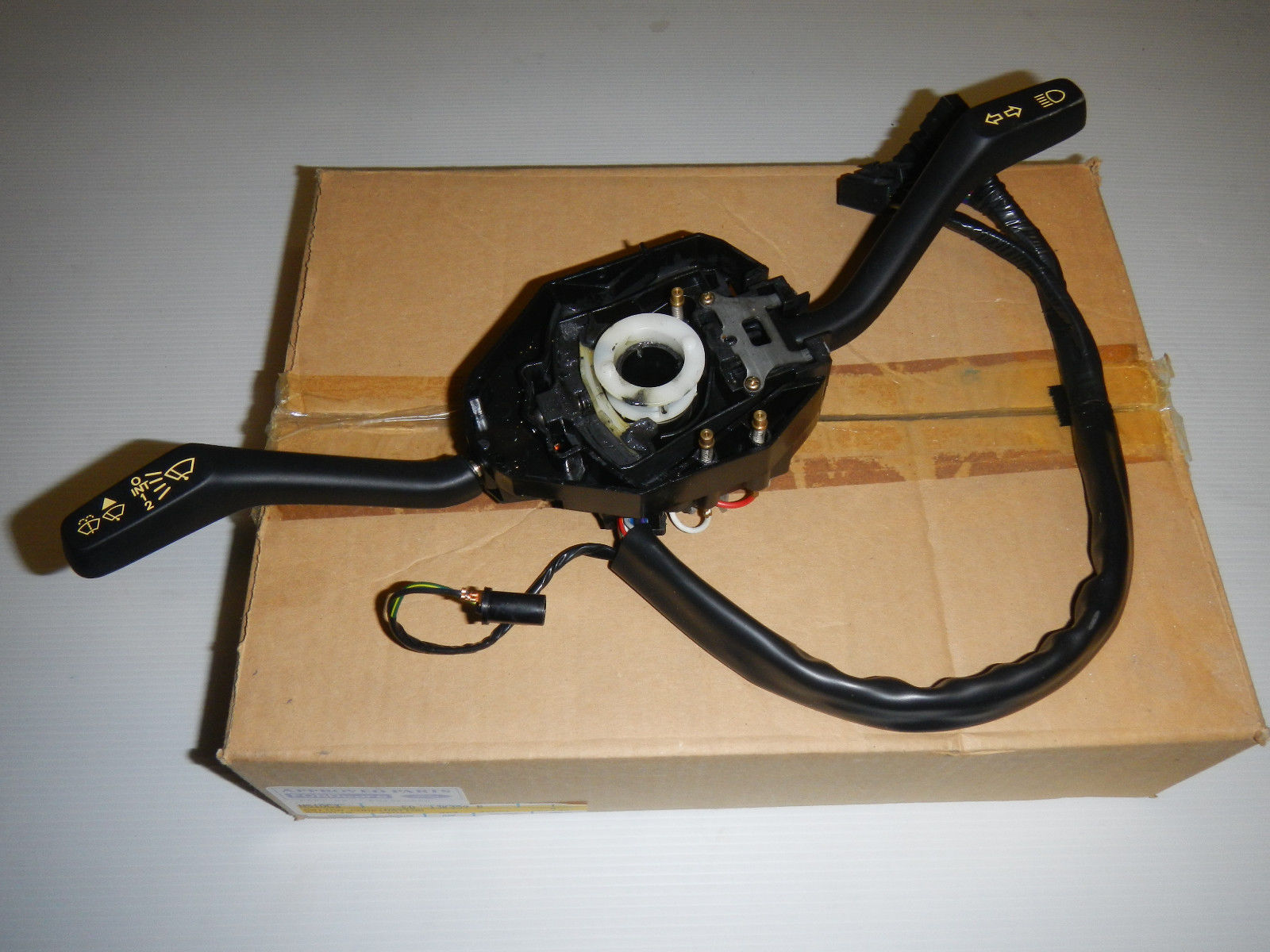

Ebay makes it look like that all combo switches have 3 brass pins...

Attachment:
$_57.JPG [ 250.55 KiB | Viewed 219 times ]


Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ED Cruise Control Power Wire
Posted: Sun Sep 28, 2014 10:41 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

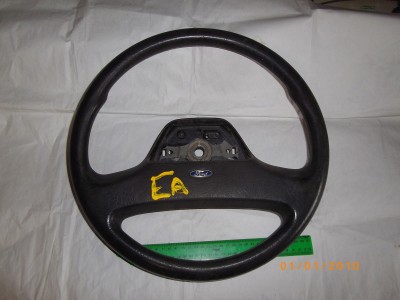

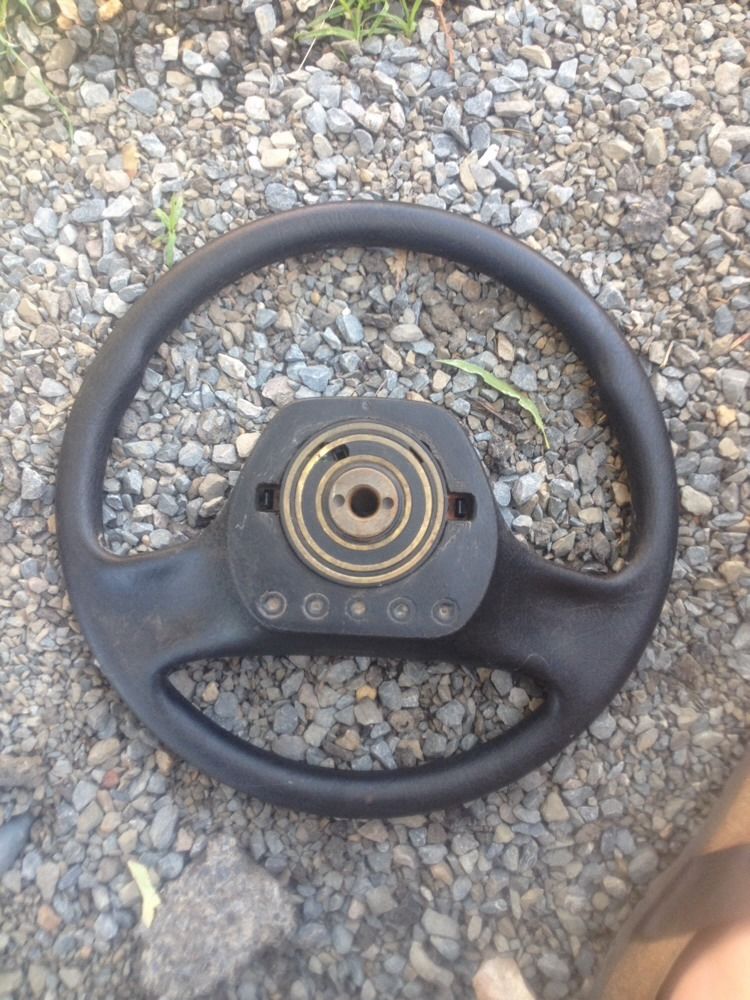

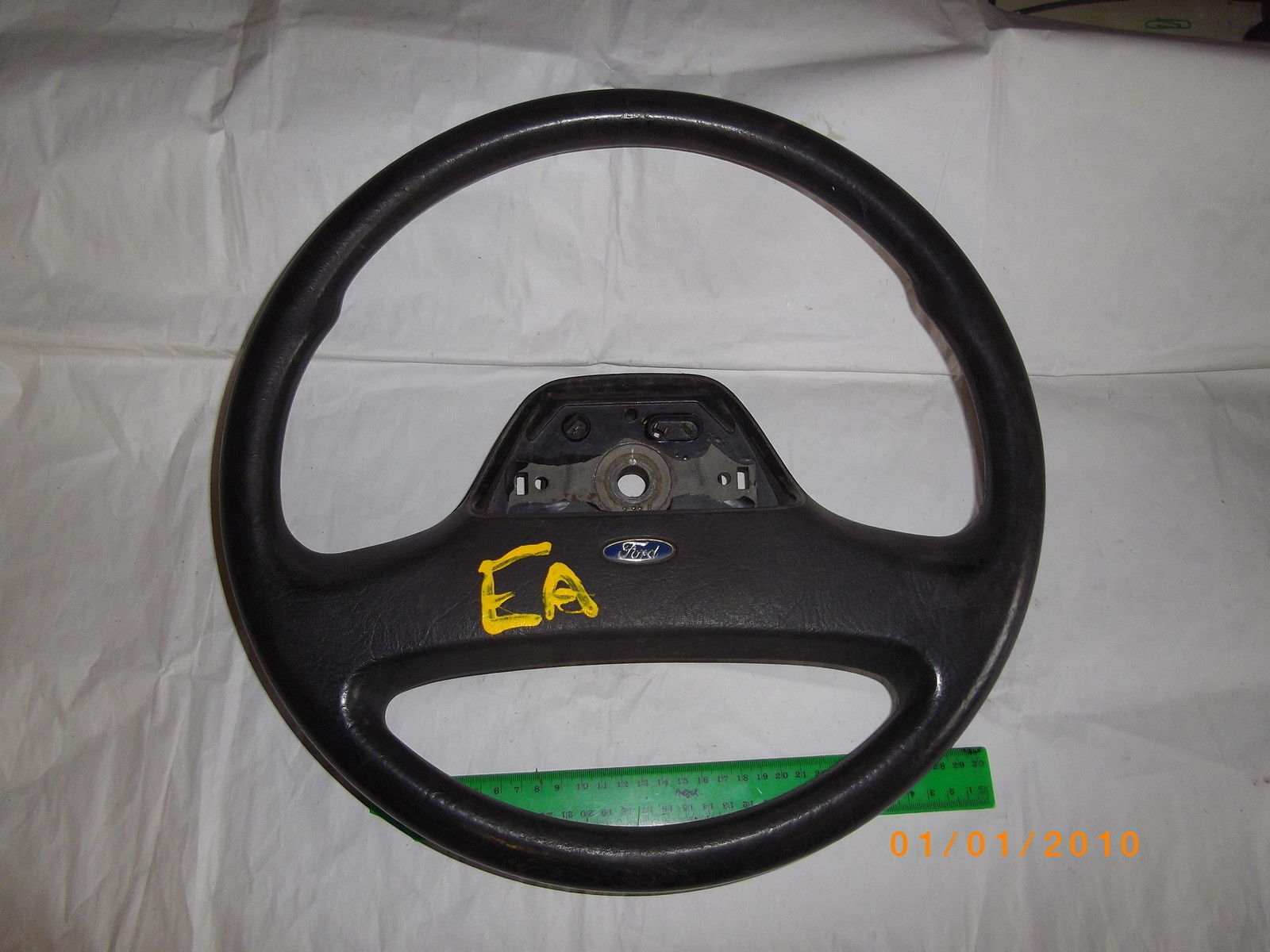

Nope I lied...

Non cruise wheels have 3 rings too... And the 4 spade contacts inside them

Attachment:
$_57 (1).JPG
$_57 (1).JPG [ 200.07 KiB | Viewed 209 times ]

Attachment:
$_57 (2).JPG
$_57 (2).JPG [ 148.19 KiB | Viewed 227 times ]


The OP still needs to make sure his is correct and that he has 3 brass pins and that they are not worn out... Make sure they have electrical grease and that all buttons are plugged into the spade connections in the wheel correctly... From memory the one on the left was brown which is ground... The double spade is where the 2 blue wires go (one from each set of buttons) and the right one was yellow which is power from after the horn relay...

Cheers,
TIm



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile

Display posts from previous:
Sort by
 Page 2 of 2  [ 21 posts ]  Go to page Previous  1, 2

Who is online

Users browsing this forum: No registered users and 8 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Thu Mar 28, 2024 11:41 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
