 Post subject: Ba falcon electrical
Posted: Wed Nov 12, 2014 1:32 pm
Parts Gopher
Offline

Age: 27

Posts: 91

Joined: 5th Apr 2013

Ride: Fairlane nc

Location: Perth
WA, Australia

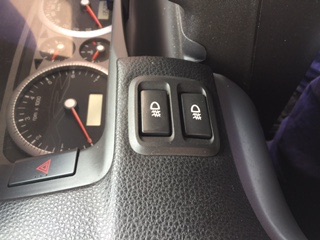

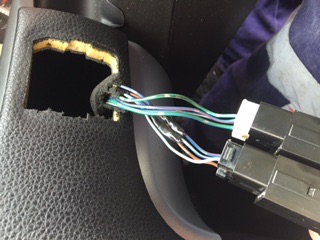

Hi all, just chasing a bit of help regarding my 2004 ba xr8 ute. Recently bought this car and I am a bit confused on a couple of things. Firstly, there are 2 fog light switches. The top one turns the fog lights on and off, but the bottom one doesn't appear to do anything, even on the dash. Have pulled the switches out and found that they both have what looks like factory wiring attached. What could the second switch be for?

Attachment:
image.jpg [ 27.1 KiB | Viewed 1644 times ]


Attachment:
File comment: Wires
image.jpg [ 29.25 KiB | Viewed 1641 times ]

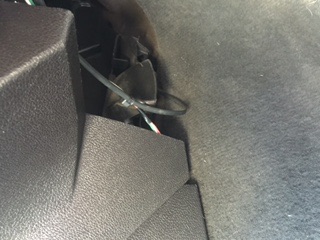

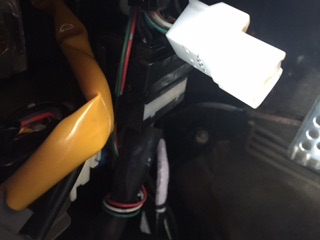

Secondly, I installed a AUX kit in the car. However when I went for the plugs under the fuse box, there was already something plugged in to one of the plugs. I unplugged it and nothing seemed to change?? Everything still works as it should. The plugs comes from the red white and green wires in the picture
which leads somewhere under the centre console.

Attachment:
image.jpg [ 17.47 KiB | Viewed 1645 times ]


Attachment:
image.jpg [ 29.41 KiB | Viewed 1641 times ]



Thanks for your help :)
