 Post subject: EF 6cyl Earth Points
Posted: Thu Feb 12, 2015 10:14 am
Parts Gopher
Offline

Posts: 77

Joined: 11th Nov 2004

Ride: EF 5 speed

Location: Canberra
ACT, Australia

I'm chasing a possible bad earth in my EF, and also thought it would be helpful for others to have all of the ECU earth point locations documented on the site.

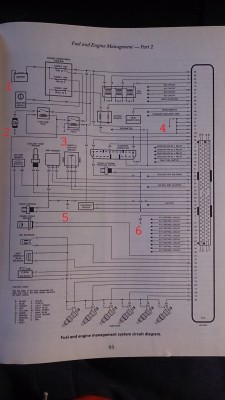

See attached "Fuel and engine management system" ECU wiring diagram from the Gregory's manual, with numbering added on each earth point.

Here are the ones I know, if anyone knows the others post them and I'll modify this post:

1: Battery Earth - Bolted to the chassis between the battery and the coolant overflow tank.
2: Black - Location ??? possibly somewhere near fuel pump?
3: Black - Location ??? possibly somewhere near ECU control relay which is under coolant overflow tank?
4: Black - Location ???
5: Black with Dark Green trace - Screwed into ECU retaining bracket in passenger kick panel.
6: Grey with White trace - Bolted to block under inlet manifold.

For now I'm focussing on the ECU Fuel and engine management circuit, but if anyone's interested in the other circuits (BCM, instrumentation, illumination etc.) we can expand it to include those as well later.

Cheers





Attachments:
PinOutEarthsSmall.jpg [ 479.1 KiB | Viewed 301 times ]

Last edited by Tragilgas on Thu Feb 12, 2015 1:42 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: EF 6cyl Earth Points
Posted: Thu Feb 12, 2015 10:37 am
Fordmods Junkie
Online
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

when i get some time .... i'll throw up the factory stuff re all grounds/earths
Top
 Profile


 Post subject: Re: EF 6cyl Earth Points
Posted: Thu Feb 12, 2015 11:57 am
Parts Gopher
Offline

Posts: 77

Joined: 11th Nov 2004

Ride: EF 5 speed

Location: Canberra
ACT, Australia

Would be awesome, cheers
Top
 Profile


 Post subject: Re: EF 6cyl Earth Points
Posted: Thu Feb 12, 2015 11:00 pm
Fordmods Junkie
Online
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

Tragilgas wrote:
Would be awesome, cheers




okaaay . . . ..... in no particular order :roll:


















hope that helps ya out :mrgreen:
Top
 Profile


 Post subject: Re: EF 6cyl Earth Points
Posted: Sat Feb 14, 2015 12:59 pm
Parts Gopher
Offline

Posts: 77

Joined: 11th Nov 2004

Ride: EF 5 speed

Location: Canberra
ACT, Australia

Thanks a lot mate, very helpful.

Cheers
Top
 Profile


 Post subject: Re: EF 6cyl Earth Points
Posted: Sat Feb 14, 2015 1:15 pm
Fordmods Junkie
Online
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia
