BA ICC Heater/AC controls blank, Recirc mode flashes 5/6time



Page 1 of 1 [ 5 posts ]


 Post subject: BA ICC Heater/AC controls blank, Recirc mode flashes 5/6time
Posted: Fri Jan 08, 2016 8:24 am
Fordmods Newbie
Offline

Posts: 17

Joined: 1st May 2011

Location: melbourne
VIC, Australia

Hey guys, encountered an issue this week, with loosing all my heater controls, and ac controls on my ICC, only thing that remains is clock, radio and the recirculating picture flashes 5/6 times when i start car. which to me looks like a diagnose code

Ive done abit of searching on forums, but struggling to find reason why, I have done a scan with a mates tools and it has come up as Can BUS communication error of U1900

It is a single zone unit, my guess is the HIM module is no good? Just wanted to see if there has been common issues with HIM's showing same symptons?

Thanks guys in advance
Top
 Profile


 Post subject: Re: BA ICC Heater/AC controls blank, Recirc mode flashes 5/6time
Posted: Fri Jan 08, 2016 9:58 pm
Technical Contributor
Offline

Posts: 556

Joined: 13th Jul 2013

Location: Campbelltown
NSW, Australia

do reverse lights work ? no = check reverse fuse
checking all fuses with a test light is a good starting point
Top
 Profile


 Post subject: Re: BA ICC Heater/AC controls blank, Recirc mode flashes 5/6time
Posted: Sun Jan 10, 2016 10:49 am
Fordmods Newbie
Offline

Posts: 17

Joined: 1st May 2011

Location: melbourne
VIC, Australia

Fuses are all fine.. not to be a smart a** but what does reverse lights have to do with Air con/Icc. Pretty Sure it would have it's own fuse
Top
 Profile


 Post subject: Re: BA ICC Heater/AC controls blank, Recirc mode flashes 5/6time
Posted: Sun Jan 10, 2016 12:02 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 402

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

horze wrote:
Fuses are all fine.. not to be a smart a** but what does reverse lights have to do with Air con/Icc. Pretty Sure it would have it's own fuse



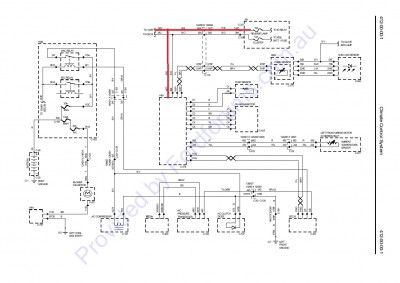

Power is supplied to the Him Via Fuses
