| tearlejc |
|
||
|
Hi guys, stupid question...
This morning as I parked the car I noticed the side indicator light on one side wasnt working, but I was running late for work and didnt have time to check it out... so how do they come off? from inside the guard or do you pop the light out from the outside?
_________________ 351 4V XB Coupe running LPG |
||
| Top | |
||
| Shortshift |
|
|||
|
IIRC you need to remove the headlight and indicator assembly to get to the globe. Just a few bolts to remove, and then get the assembly over the edge of the bumper.
_________________ AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection |
|||
| Top | |
|||
| SWC |
|
||
|
Just pop the side indicator out of the guard and change the globe, T10 by memory.
If you have amber side lenses, it will be a clear globe, if you have clear side lenes it will be a amber globe. |
||
| Top | |
||
| tearlejc |
|
||
|
Shortshift wrote: IIRC you need to remove the headlight and indicator assembly to get to the globe. Just a few bolts to remove, and then get the assembly over the edge of the bumper. Oh sorry look my bad wording - I mean the side light between the wheel arch and front door, in the side trim...
_________________ 351 4V XB Coupe running LPG |
||
| Top | |
||
| tearlejc |
|
||
|
SWC wrote: Just pop the side indicator out of the guard and change the globe, T10 by memory. If you have amber side lenses, it will be a clear globe, if you have clear side lenes it will be a amber globe. cheers, so it just pops out of the guard, cool. Didnt want to force it if that wasnt the way.....thanks for your help guys!
_________________ 351 4V XB Coupe running LPG |
||
| Top | |
||
| SWC |
|
||
|

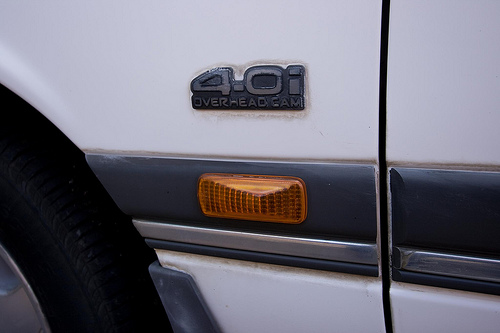

EB Side Indicator

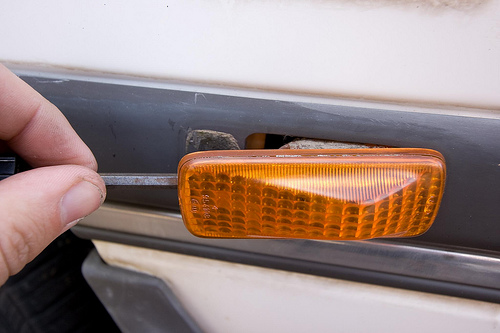

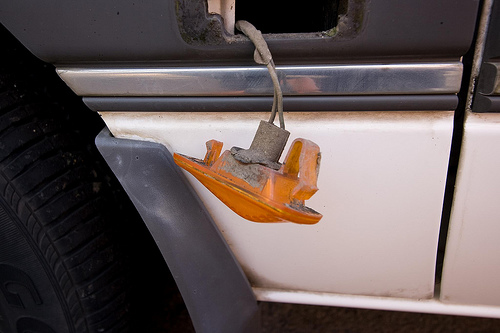

Attachment: EB Side Ind.jpg [ 59.79 KiB | Viewed 233 times ] Removing Side Indicator, Remove with flathead screwdriver, easiest from front. Attachment: EB Side Ind 2.jpg [ 78.49 KiB | Viewed 233 times ] Remove connector Attachment: EB Side Ind 3.jpg [ 74.39 KiB | Viewed 255 times ] Then twist and remove globe holder and replace globe. |
||
| Top | |
||
| tearlejc |
|
||
|
SWC wrote: EB Side Indicator Attachment: EB Side Ind.jpg Removing Side Indicator, Remove with flathead screwdriver, easiest from front. Attachment: EB Side Ind 2.jpg Remove connector Attachment: EB Side Ind 3.jpg Then twist and remove globe holder and replace globe. Aw cheers mate, colour piks and all! thank you, always a huge help SWC, much appreciated!
_________________ 351 4V XB Coupe running LPG |
||
| Top | |
||
