 Post subject: Input Shaft Length for T-5
Posted: Fri May 26, 2017 6:56 am
Fordmods Newbie
Offline

Age: 66

Posts: 15

Joined: 27th May 2010

Ride: Ford/Mustang 1965

Location: Hurricane, WV
Oustide Australia

I have an EL bellhousing for my 4.0L and a T-5 from an '86-'91 V8 Mustang. I'm trying to determine if this transmission will work with the bellhousing.

What is the input shaft length for a T-5 in an EL 4.0L? The shaft length for the T-5 I have is 7.18-inches (182.37mm). The shaft length for T-5s in '94 and later Mustangs is 7.85-inches (199.39mm). I've attached a diagram of a T-5; I'm looking for the "B" dimension on the diagram (from the tip of the input shaft to the case.

Thanks in advance.





Attachments:
T5-Transmission-Measurements.jpg [ 8.74 KiB | Viewed 3976 times ]



_________________

Dan

Currently Own
1965 Mustang, 200CID, 3Spd
1964 Corvair Coupe, 164CID, 140HP, 4Spd
2017 BMW X3, 3.0L Turbo, 300HP, 8-Spd Auto

Top
 Profile


 Post subject: Re: Input Shaft Length for T-5
Posted: Fri May 26, 2017 9:11 pm
Getting Side Ways
Offline
User avatar

Age: 61

Posts: 869

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

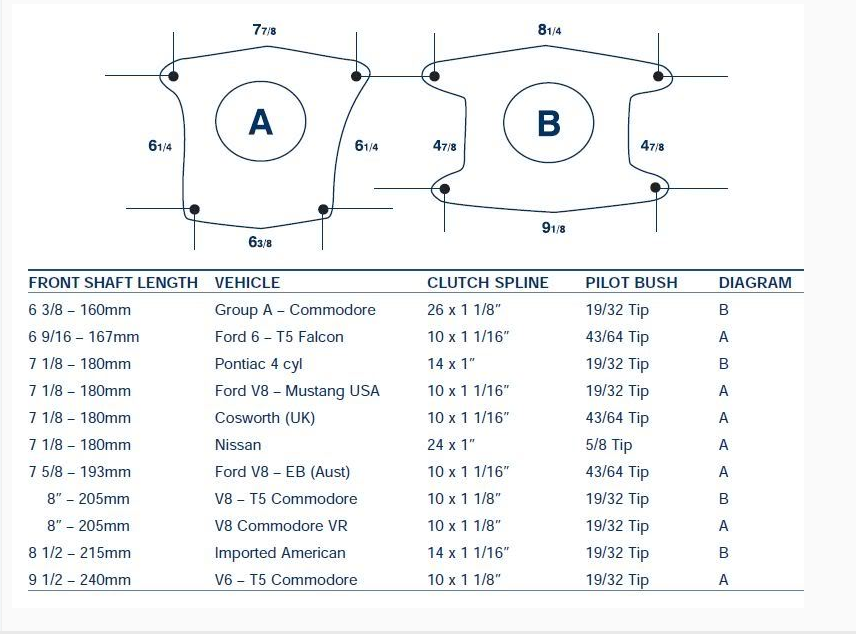

I just measured the T5 4.0 6 cyl box (EA-EL series) that I have in the shed and the distance is 167mm. Attached is a chart that I found on another forum that may be of help to you.





Attachments:
T5 differences.PNG
T5 differences.PNG [ 340.94 KiB | Viewed 769 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Input Shaft Length for T-5
Posted: Sat May 27, 2017 2:29 am
Fordmods Newbie
Offline

Age: 66

Posts: 15

Joined: 27th May 2010

Ride: Ford/Mustang 1965

Location: Hurricane, WV
Oustide Australia

Thanks for the attachment Shortshift, that helps a lot.

Mines the one with the "A" bolt pattern and 180mm front shaft length.

I could have a plate made to go between the bellhousing and transmission to place the splines and pilot in the right place, or maybe find the correct front shaft.

Another question. Would the Ford 6 T5 Falcon input shaft swap over into the US V8 T5?



_________________

Dan

Currently Own
1965 Mustang, 200CID, 3Spd
1964 Corvair Coupe, 164CID, 140HP, 4Spd
2017 BMW X3, 3.0L Turbo, 300HP, 8-Spd Auto

Top
 Profile


 Post subject: Re: Input Shaft Length for T-5
Posted: Sun May 28, 2017 2:27 pm
Getting Side Ways
Offline
User avatar

Age: 61

Posts: 869

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

rocklord wrote:
Would the Ford 6 T5 Falcon input shaft swap over into the US V8 T5?

I'm not sure if there are any differences in the matching cluster gears for both boxes. IMO I think it will work. Maybe someone else on here can confirm that.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Input Shaft Length for T-5
Posted: Sun May 28, 2017 8:46 pm
Technical Contributor
Offline
User avatar

Age: 59

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Depends on the input shaft gear teeth no, and whether it runs a tapered bearing or needle rollers between it and the mainshaft.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
