BA GT Gear stick/ 5 speed Gearbox removal



Page 1 of 1 [ 5 posts ]


 Post subject: BA GT Gear stick/ 5 speed Gearbox removal
Posted: Thu Jun 22, 2017 4:27 pm
Stock as a Rock
Offline

Age: 46

Posts: 118

Joined: 13th Mar 2008

Gallery: 1 images

Ride: 03 BA GT XW GT Replica

Location: Legerwood
TAS, Australia

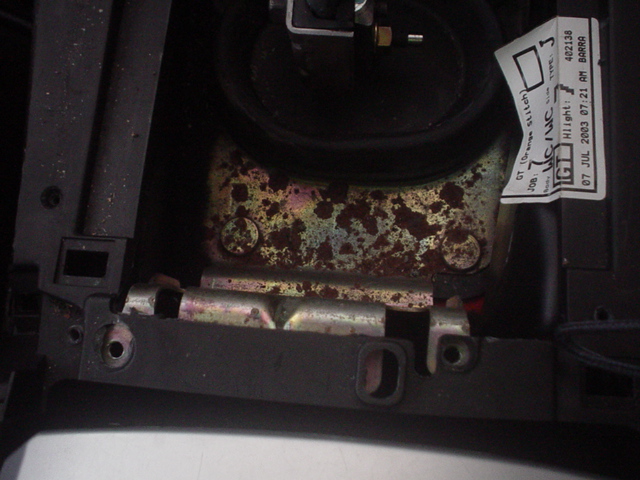

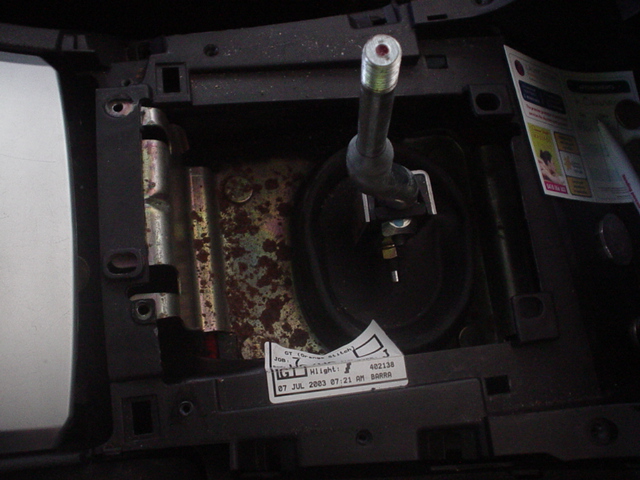

Hi can anyone tell me how to dissmantle console to remove gear stick from my 2003 BA GT Falcon. I I need to remove gear lever so as to remove gear box for a clutch replacement. I have shifter boot and knob removed I need to remove the steel bracket under there that holds the rubber down around gear stick. Have removed 4 nuts under the car and 2 screws on top but I must need to remove console to get this out as it sits under the console. I dont want to go further and break any plastic or clips I am unaware of. I will add a couple pics of where I am at.





Attachments:
DSC01858.JPG [ 154.53 KiB | Viewed 22 times ]
DSC01859.JPG [ 154.14 KiB | Viewed 18 times ]



_________________

LOVE THE BLUE OVAL

Top
 Profile


 Post subject: Re: BA GT Gear stick/ 5 speed Gearbox removal
Posted: Sat Jun 24, 2017 2:22 am
Oompa Loompa
Offline

Age: 27

Posts: 37

Joined: 5th Apr 2017

Ride: 2003 BA N/A XR6 ute

Location: Albury
NSW, Australia

Don't pull that out. If you do pull that out, the console has to come before it. Unbolt the gearstick (2 bolts) and the little stump that's left will just pull through. It's to keep dirt out, not the box in.



_________________

2003 Narooma Blue XR6 ute - NOW WITH 6 SPEED! - Underdrives, Hyperflow + Terry pipe + turbo snorkel, 4490's, Venom H/F Cat, 2.5" Redback, BF Turbo T56 conversion, H/D Turbo clutch, custom tailshaft, 3.89 LSD

Top
 Profile


 Post subject: Re: BA GT Gear stick/ 5 speed Gearbox removal
Posted: Sat Jun 24, 2017 9:28 am
Stock as a Rock
Offline

Age: 46

Posts: 118

Joined: 13th Mar 2008

Gallery: 1 images

Ride: 03 BA GT XW GT Replica

Location: Legerwood
TAS, Australia

OK Thanks. I will have it out this morning. The clutch slave blew so I am replacing clutch as well. It makes sense if box has to come out. New kit has a solid flywheel I have been told Original one is dual mass. Is there anything I should know about swapping these over. I am guessing there is nothing to it.



_________________

LOVE THE BLUE OVAL

Top
 Profile


 Post subject: Re: BA GT Gear stick/ 5 speed Gearbox removal
Posted: Sat Jun 24, 2017 10:05 am
Oompa Loompa
Offline

Age: 27

Posts: 37

Joined: 5th Apr 2017

Ride: 2003 BA N/A XR6 ute

Location: Albury
NSW, Australia

Dual mass is there to soak up a bit of harmonics/pulsing in most cases. If you modify your engine you should swap to a single solid anyway. Haven't done a conversion myself, but it should be a bolt off bolt on affair.



_________________

2003 Narooma Blue XR6 ute - NOW WITH 6 SPEED! - Underdrives, Hyperflow + Terry pipe + turbo snorkel, 4490's, Venom H/F Cat, 2.5" Redback, BF Turbo T56 conversion, H/D Turbo clutch, custom tailshaft, 3.89 LSD

Top
 Profile


 Post subject: Re: BA GT Gear stick/ 5 speed Gearbox removal
Posted: Sun Jun 25, 2017 12:56 pm
Stock as a Rock
Offline

Age: 46

Posts: 118

Joined: 13th Mar 2008

Gallery: 1 images

Ride: 03 BA GT XW GT Replica

Location: Legerwood
TAS, Australia

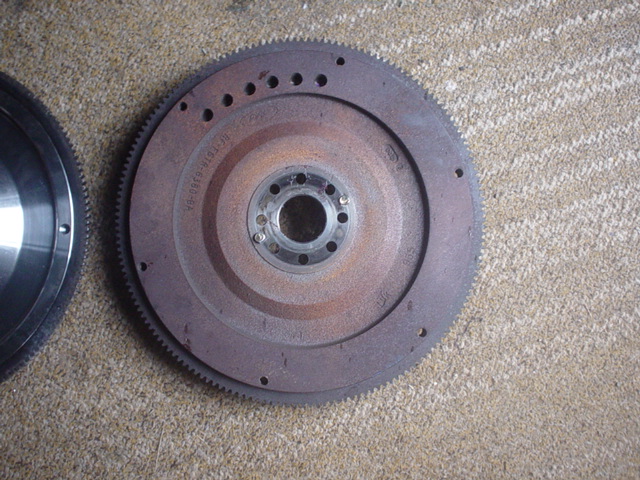

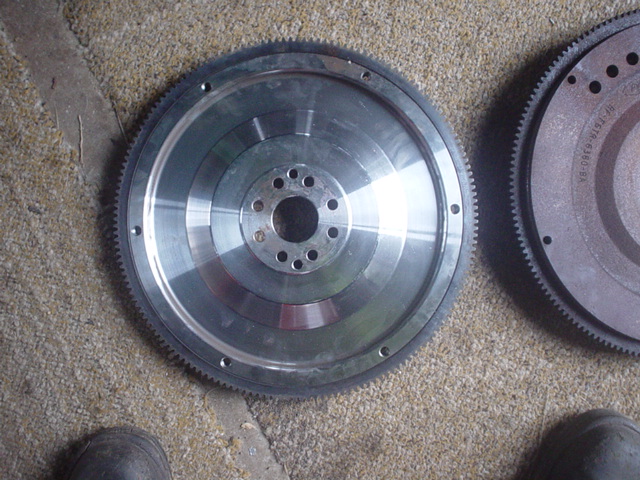

Just if anyone is interested It is an easy job to remove the Gearbox. As it turns out my GT has a solid mass flywheel standard. The Excedy Replacement is a steel flywheel so should be an improvement over the factory cast flywheel. The only thing that I am worried about is whether the factory flywheel is balanced to the motor. Should I have the Excedy flyweel mirror balanced to be sure. Being fussy I know but the cast flywheel does have balance holes in the back of it. Facrory flywheel is 13kg and Excedy is 11 kg 2 kilo lighter. I weighed them on bathroom scales so just rough. heres some pictures of both for anyone to look at.





Attachments:
DSC01861.JPG [ 154.81 KiB | Viewed 22 times ]
DSC01862.JPG [ 152.43 KiB | Viewed 16 times ]



_________________

LOVE THE BLUE OVAL
