 Post subject: AU speedo with BA gearbox
Posted: Sun Jan 31, 2010 10:28 pm
Fordmods Newbie
Offline

Age: 32

Posts: 4

Joined: 31st Jan 2010

Ride: AU falcon

Location: Penrith
NSW, Australia

im in the middle of putting a BA turbo engine and gearbox in my series 1 AU ande i have found the ba gearbox has no allowance for the speedogear because the use wheel speed sensors.
I have BA brakes on the front so there is the possiblity for using wheel speed sensors, my question is; Will the wheel speed sensors send the same signal the the factor gauge as the gear box speed sensor would?
please if anyone could help it would be greatly appreciated.
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Sun Jan 31, 2010 11:40 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3436

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

finaly wrote:
im in the middle of putting a BA turbo engine and gearbox in my series 1 AU ande i have found the ba gearbox has no allowance for the speedogear because the use wheel speed sensors.
I have BA brakes on the front so there is the possiblity for using wheel speed sensors, my question is; Will the wheel speed sensors send the same signal the the factor gauge as the gear box speed sensor would?
please if anyone could help it would be greatly appreciated.


Hey there, I don't know what made you think that the speedo sensor is different but they are not. The BA uses the same speedo sensor that the AU does, in the gearbox. Just use your original speedo driven gear from the AU.
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 12:05 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Papa Smurf wrote:
finaly wrote:
im in the middle of putting a BA turbo engine and gearbox in my series 1 AU ande i have found the ba gearbox has no allowance for the speedogear because the use wheel speed sensors.
I have BA brakes on the front so there is the possiblity for using wheel speed sensors, my question is; Will the wheel speed sensors send the same signal the the factor gauge as the gear box speed sensor would?
please if anyone could help it would be greatly appreciated.


Hey there, I don't know what made you think that the speedo sensor is different but they are not. The BA uses the same speedo sensor that the AU does, in the gearbox. Just use your original speedo driven gear from the AU.


No they don't. Except for BA utes without ABS (a rare find).

The BA ABS system gets the speed from the ABS sensors, and sends that the the ECU. No your AU won't do this.

The solution, is to swap the extension housing from an AU box onto the BA box, or drill/tap the hole in the BA extension housing to fit the AU gear+sender (you may need the worm gear on the output shaft too).



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 3:49 pm
Fordmods Newbie
Offline

Age: 32

Posts: 4

Joined: 31st Jan 2010

Ride: AU falcon

Location: Penrith
NSW, Australia

cheers dont no why i didnt think of that i new AU and BA have different methods of finding the speed, do you know if the output shaft will hold the gear?
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 6:48 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

As I said you might need to add the worm gear that's on the output shaft.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 7:33 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3436

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

I didn't read properly that he would have had ABS.

I apologize for giving you a bum steer matey.
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 2159

Joined: 15th Nov 2005

Gallery: 17 images

Ride: TS40

Location: Latrobe Valley
VIC, Australia

hey mate, im sure we would all love to see photos and get more info on this... throw some up if you have time...

Cheers Cam



_________________

Was - 2001 AUIII Ford Falcon Forte
Genuine T2 TS50 bodykit, 18" BF Cobras, Boge and Eibach Suspension and Complete AU2 Fairmont Ghia Interior

Now - 2012 FG Mk2 Ford Falcon XR6
Swift Green,6 Speed Auto, Stock... and a Fuel Card :)

Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Mon Feb 01, 2010 9:42 pm
Fordmods Newbie
Offline

Age: 32

Posts: 4

Joined: 31st Jan 2010

Ride: AU falcon

Location: Penrith
NSW, Australia

sorry guys my bad for not being clear, i have a manual box so the is no extention housing
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Thu Feb 04, 2010 11:47 pm
Smokin em up
Offline

Age: 34

Posts: 239

Joined: 20th Jan 2007

Ride: Custom Bedford, 79 Firebird

Location: Perth
WA, Australia

hey mate, my manual box came from a ute, and has provisions for speedo readings from the box.
when i have some free time i'll get a photo for you..

Considering you're turboing it, this may not be much good to you, as all turbo utes would have had ABS, so only the no turbo T5s will have the option.. I'm not 100%sure if all the T5s in BAs are the same, or just the manual utes.



_________________

Wrecking BA lots of parts available Pictures and prices here
3 Decks with stackers PRICE DROP

Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Thu Jul 20, 2017 6:18 pm
Fordmods Newbie
Offline

Age: 40

Posts: 1

Joined: 20th Jul 2017

Ride: 04 ba ute no abs (the rare one)

Location: Bomaderry
NSW, Australia

This was very useful ..
AsAs I am now in the middle of a gearbox change and the gearbox I got from a wagon has no speed sensor hole so what's the best option tap and drill the hole out or replace the back housing on the gearbox cheers heaps guys
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Thu Jul 20, 2017 6:28 pm
Fordmods Junkie
Online
User avatar

Posts: 2707

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

BA YORT wrote:
This was very useful ..
AsAs I am now in the middle of a gearbox change and the gearbox I got from a wagon has no speed sensor hole so what's the best option tap and drill the hole out or replace the back housing on the gearbox cheers heaps guys



possibly easier to replace housing with yours [as long as same box]. and check that there is a drive cog on output shaft.
Top
 Profile


 Post subject: Re: AU speedo with BA gearbox
Posted: Fri Jul 21, 2017 8:34 am
Tyre Shredder
Online
User avatar

Age: 44

Posts: 355

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Easiest way is to use extension housing and speedo gears from your AU on the BA box,I did this with my XG and the BA output shaft has the hole already for the gear to go on.

P.s I assumed that you were talking about the 4-speed???





Attachments:

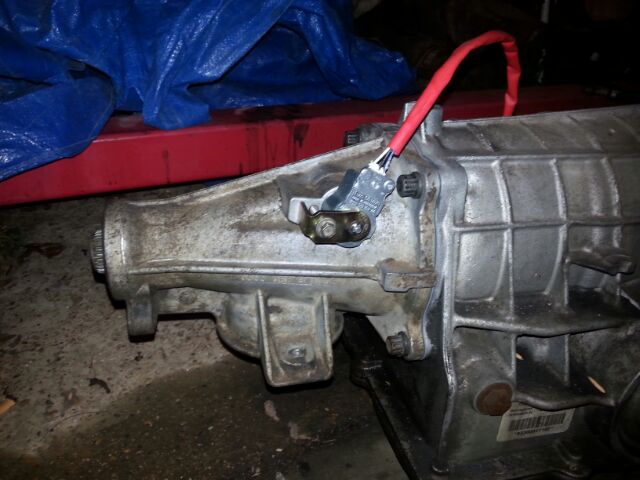

File comment: BA box with XG extension housing and gear-speed sensor.
IMG_2014112755269.jpg [ 49.32 KiB | Viewed 19 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html
