 Post subject: Re: Idle issues in EL Falcon
Posted: Fri Mar 25, 2016 9:36 am
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 21st Nov 2015

Location: Sydney
NSW, Australia

I had the same symptoms in my EB and it turned it to be a dodgy throttle position sensor, although I don't know if the battery would have any impact on it.
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Thu Nov 30, 2017 9:22 pm
Fordmods Newbie
Offline

Age: 53

Posts: 4

Joined: 30th Nov 2017

Ride: EF Falcon

Location: Taree
NSW, Australia

My old 94 EF falcon has been having issues with rough idling and rough gear changing after having a new gas converter fitted. We changed coil packs, spark plugs, leads, sensors and put in a new computer. The only things we hadn't changed were the idle control and the map sensor and the idle speed sensor.

BUT today after disconnecting the battery to reset the computer after fixing a leaking air intake pipe the car was running worse, rough and lurching into gear and not changing properly or idling properly. I have read through these forums and decided to pull out my Haynes repair and maintenance manual that I bought 17 years ago and see what else I could work out for the problem.

I stumbled across a section by accident that said..." Throttle position calibration". Reading on, this is basically what it said in general information...."Whenever the battery is disconnected the transmission must re-learn the closed and wide open throttle positions to enable the PCM to determine the proper gear to select for the apropriate throttle position"

I followed the simple instructions in the book and recalibrated the throttle position. It took about 15 minutes to do and was very simple and required no tools or code readers etc.

Not only did it fix the rough gear changing it also fixed the rough idling. My car now no longer runs like a chaff cutter and the gear changes are the smoothest they have been in years.

I told my brother what I found and what I did and he was stunned. He has worked in the automotive repair industry for over 30 years and he had never heard of doing this before now. He said I taught him something today.

So if anyone has an old Haynes manual for EF falcons you can find the instructions in section 7B-4. Hopefully you solve your idle and throttle control problems like I did.
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sat Dec 02, 2017 3:35 pm
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Kerry94ef wrote:
So if anyone has an old Haynes manual for EF falcons you can find the instructions in section 7B-4. Hopefully you solve your idle and throttle control problems like I did.



if anyone has a copy of this section ... could they share it?
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sat Dec 02, 2017 4:53 pm
Fordmods Newbie
Offline

Age: 53

Posts: 4

Joined: 30th Nov 2017

Ride: EF Falcon

Location: Taree
NSW, Australia

I attached two documents which are copies of photos of the manual and the section. I couldn't upload them as JPG because they were too big. Hope they work. If not I will find some other way of doing it.
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sat Dec 02, 2017 5:08 pm
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

thanks for the try, they didn't work. if your able to ... send them jpg's to me & i'll post em.
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sun Dec 03, 2017 8:09 am
Fordmods Newbie
Offline

Age: 53

Posts: 4

Joined: 30th Nov 2017

Ride: EF Falcon

Location: Taree
NSW, Australia

I managed to reduce the size of the photos. Hopefully they aren't too small now.





Attachments:
20171202_163247.jpg [ 49.9 KiB | Viewed 86 times ]
20171202_163219.jpg [ 52.98 KiB | Viewed 84 times ]
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sun Dec 03, 2017 8:22 am
Fordmods Newbie
Offline

Age: 53

Posts: 4

Joined: 30th Nov 2017

Ride: EF Falcon

Location: Taree
NSW, Australia

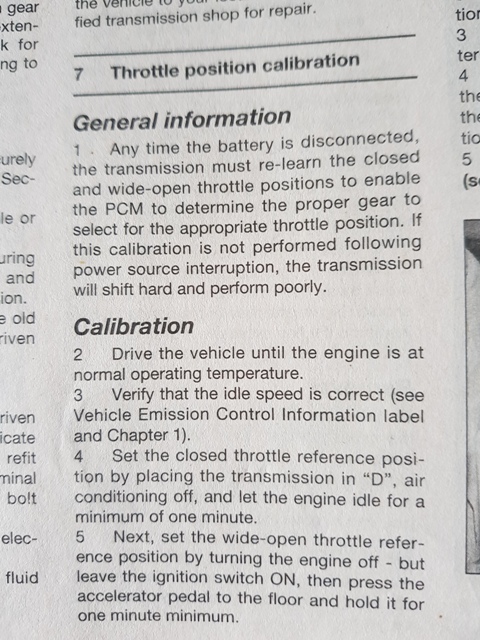

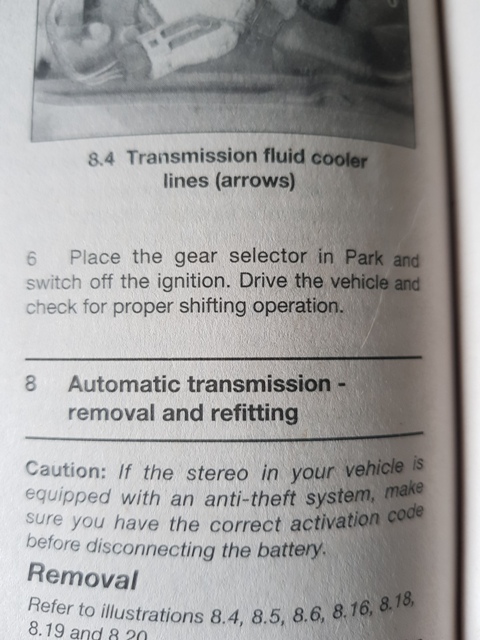

Here is a close up of the six steps to calibrate the throttle. Its is spread over 2 pages.





Attachments:
20171202_163311.jpg [ 129.54 KiB | Viewed 2 times ]
20171202_163305.jpg [ 175.16 KiB | Viewed 2 times ]
Top
 Profile


 Post subject: Re: Idle issues in EL Falcon
Posted: Sun Dec 03, 2017 5:22 pm
Stock as a Rock
Offline

Age: 64

Posts: 142

Joined: 4th Feb 2016

Location: australia
VIC, Australia

What you are saying is nothing new, but clarify what you mean by the engine running like a chaff cutter, if you mean a bad idle yes, but missing under load would have absolutely nothing to do with disconnecting the battery.
Disconnecting the battery the ecu will loose it's random access memory there fore the idle speed control motor would have forgotten how much air was bypassing the throttle plate before the battery was disconnected.
Top
 Profile
