ba heater/AC wiring



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: ba heater/AC wiring
Posted: Wed May 06, 2015 5:11 pm
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

Can anyone help with a wiring diagram for the heater and AC.

Allan
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Wed May 06, 2015 5:16 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

It's over a few pages... What specifically do you want to know?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 12:01 am
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

I have a BA heater/aircon unit which I am fitting to my 60 Studebaker Hawk and I need to know how to drive the air direction vanes.
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 12:13 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

You fitting in all the canbus stuff to make it happen? The HIM module is driven by canbus amongst other things...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 12:24 am
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

Now I will have to think about this. I did not expect that. Is the heater control unit stand alone. IE can I just buy the controls such as: http://www.ebay.com.au/itm/FORD-BA-FALCON-ICC-UNIT-CD-PLAYER-RADIO-HEATER-CONTROLS-2-/251866440534?pt=LH_DefaultDomain_15&hash=item3aa468e356
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 1:22 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

God no...

The ICC will not work until paired to the BEM... Comes up with a security error... It will not turn on until it receives a can wake up request... From there I'm not sure how much other info is required from other sensors and similar...

It definitely talks to the PCM as the fan in my turbo will not run on heat until the motor warms up... It also receives speedo signal from the cluster module... As when I've had a flat battery it logs a speedo signal fault...

Attached is just the CAN topography...
Attachment:
BF_MKII_Vol3_Group7.pdf [512.68 KiB]
Downloaded 37 times


So that heater control as you call is the ICC module shown... It is wired to the BEM which is then wired to the HIM is the HVAC Inegrated Module which is the unit full of motors to run the heaterbox shafts and fan... Fair chance it wont do anything until you have the key and barrel hooked up to drive it (which would all need to be coded in together to function and avoid the security error)...

If you want standalone climate control you'll have to adopt it from an earlier vehicle... The AU run a more simple communications network and it possibly could be retrofited (would require more research)...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 9:32 am
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

Thanks TimmyA.
Too much technology fo a simlpe thing.
I have a heater core, an evaporator and a fan with some vanes directing the air. It is only the air flow I need to control the rest is easy.
I have not looked in this HIM module yet but it looks like electric actuators. It Cannot be too hard to make them move. I guess it was the wiring diagram for the HIM that I was interested in.
Regards
Allan
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 12:15 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I'll check later...

Most of the driving is done via the canbus network but... Again nothing will work until it is connected to all its mating modules...

To make it run crude you'd have pull it to bits... Turf the electronics and make your own driver board and controls depending how it actually drives the arms (stepper or similar motors)...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 6:42 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Here you go then...

Climate Control stuff (HIM)

Attachment:
BF_MKII_Vol3_Group7_Climate Control.pdf [520.01 KiB]
Downloaded 45 times


And Entertainment System (ICC)

Attachment:
BF_MKII_Vol3_Group7_Entertainment System.pdf [593.44 KiB]
Downloaded 33 times


As I suspected...Entirely driven through Canbus... You can't see the link between the two drawings because the link is on the topography drawing I attached last night...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 11:24 pm
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

Well I had a look inside the HIM module and then put it back together.
I think I made a mistake thinking I could use this heater box.
What a nightmare. There is more electronics in that HIM than an entire PC motherboard.
I will look for something a little easier to adapt.
Building a megasquirt for the 302 is much easier.
Thanks for your help and assistance Tim. Much appreciated.
Allan.
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Thu May 07, 2015 11:36 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Yeah no worries at all...

Attached is the Au manual and auto climate control wiring if you decide to adapt one stage earlier heaterbox...

Cheers,
Tim





Attachments:
falcon-au-2_manual.pdf [147.73 KiB]
Downloaded 26 times
falcon-au-2_auto.pdf [170.9 KiB]
Downloaded 23 times



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Fri May 08, 2015 12:26 am
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

That looks better I can follow that.
I will look for an AU Heater unit.

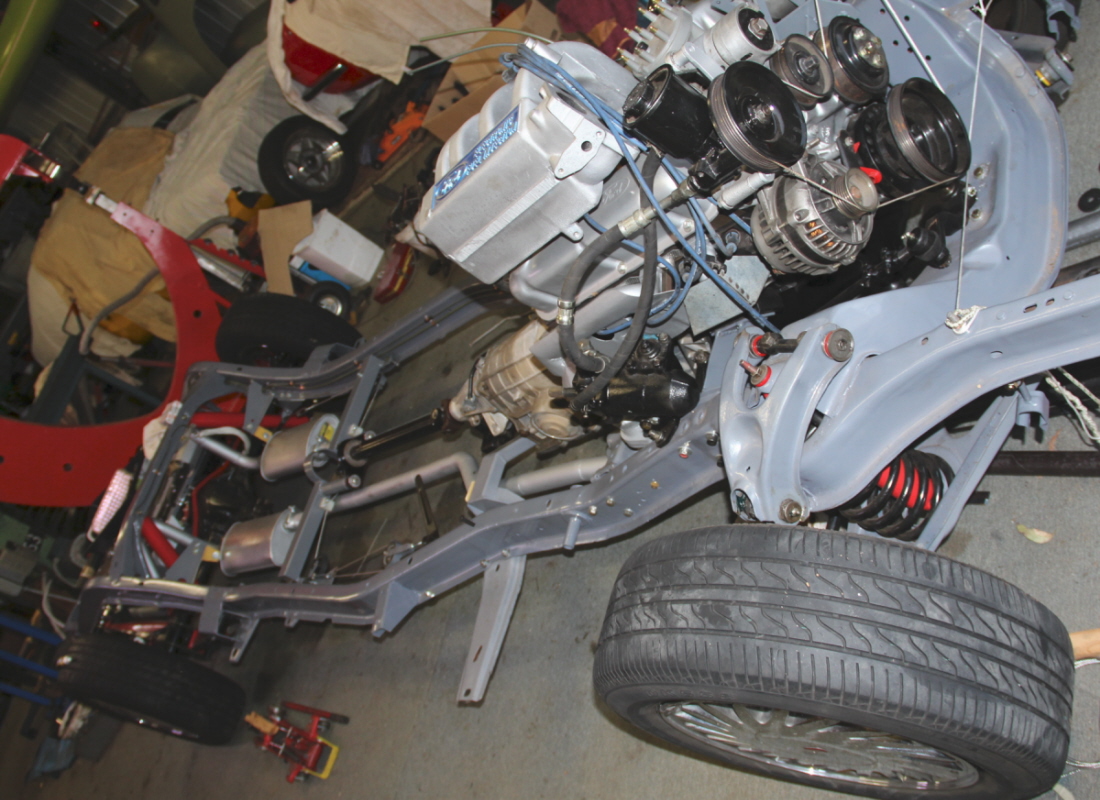

You may or may not be interested but here is a pic of the project.
It's not a Ford but it is Ford powered.
Attachment:
File comment: Studebaker
aa9923bb.jpg [ 398.15 KiB | Viewed 29 times ]
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Fri May 08, 2015 7:55 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Looks pretty neat man... Nice and work on a car that has no body!...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Fri Jul 24, 2015 8:01 pm
Fordmods Newbie
Offline

Age: 64

Posts: 12

Joined: 30th Jul 2014

Ride: ford powered Studebaker

Location: Melbourne
VIC, Australia

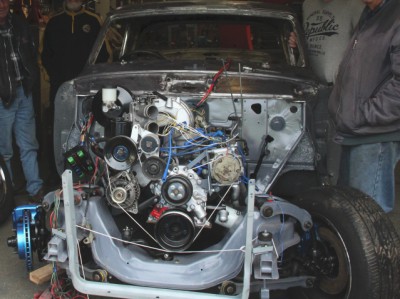

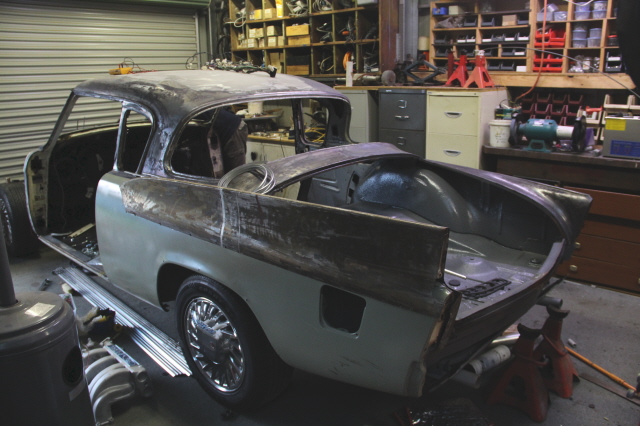

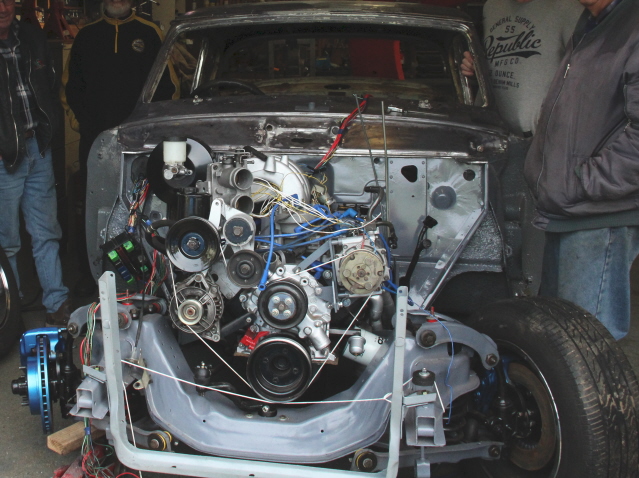

Hi Guys.
Getting a lot closer with this project.
Attachment:
IMG_0389aa.jpg [ 162.58 KiB | Viewed 20 times ]

Attachment:
IMG_0385aa.jpg [ 200.83 KiB | Viewed 18 times ]

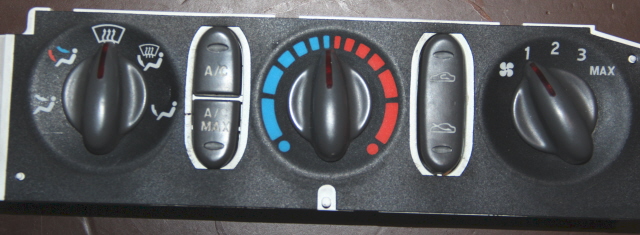

I need a little help with this.
Does anyone have a circuit diagram for this please?
Attachment:
IMG_0496.JPG [ 103.58 KiB | Viewed 16 times ]

The diagram in the post above is not for this control unit.
so before I reverse engineer it I will ask as it would make it easier.

Allan
Top
 Profile


 Post subject: Re: ba heater/AC wiring
Posted: Fri Jul 24, 2015 8:17 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

The diagram above for the manual climate should be pretty close... These are a series 1 so possibly a wire colour different or two, work the same way but resistor network and relay for the fan motor and the other switches are signals to the PCM, etc...

These series 1 sets were a PITA as they have a catch that breaks in the recycle switch and it wont stay clicked on... Locking it to either recycle or fresh full time (can't remember which now)... If you can fit an AU 2 style set that'd be better in the long run for you...

http://www.ebay.com.au/itm/2002-Ford-AU ... 419997ee29

Up to you but... I might have a non genuine series 1 diagram, I'll have a look later...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
