 Post subject: Cruise control wont engage
Posted: Mon Dec 16, 2013 4:40 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

hi all, ive got a 1995 ef futura and the cruise control won't engage. The "cruise" light comes on the dash when i press the on button. Any advice? Thanks in advance.



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Cruise control wont engage
Posted: Mon Dec 16, 2013 4:43 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Check your brake switch.

Last edited by SWC on Mon Dec 16, 2013 5:43 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Cruise control wont engage
Posted: Mon Dec 16, 2013 4:46 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

SWC wrote:
Check you brake switch.


already have done.



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: Cruise control wont engage
Posted: Mon Dec 16, 2013 5:04 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

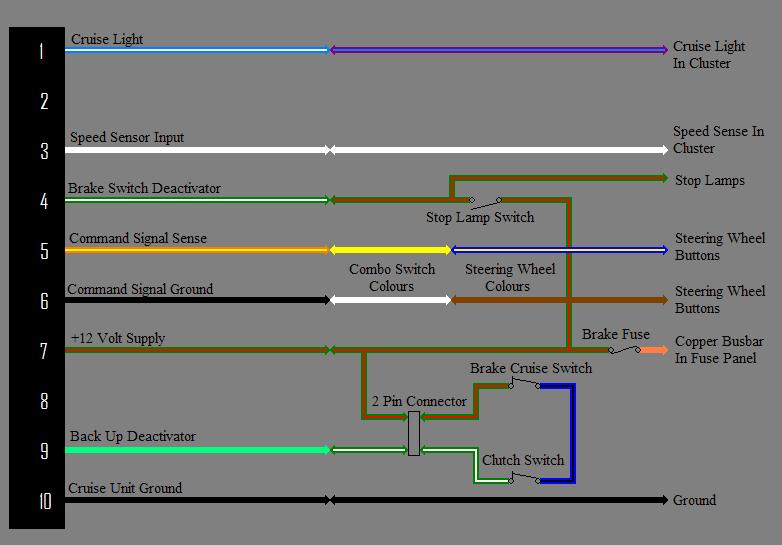

Attachment:
Cruise Control Wiring.JPG
Cruise Control Wiring.JPG [ 44.5 KiB | Viewed 53 times ]


I'm sure we've covered non working cruise control threads hundreds of times... Have you tried searching for any of those first?

There is wiring in a nutshell... It's actually the wiring conversion in ED but the left hand half will suffice for what you want...

1) Gets power when you turn it on
2) Not used
3) Speed sensor... Should be a 5V square wave... Chances are you can't test this...
4) When you put your foot on the brake you should see 12V here
5) Between here and pin 6, when you press set- 120ohms, set+ 680ohms, can/res 220ohms
6) See above
7) Should have 12V with the key on
8) Not used
9) Should have 12V with the key on and if you jump on the brakes hard and fast it should go away
10) Ground

So that said... Check pins 4,5,6,9... Others should be going by what you say... One of those 4 pins isn't working as I have describe it should be... Find it and let us know and we'll point you in a direction...

Cheers,
Tim
