 Post subject: Re: Demister switch on console
Posted: Thu Sep 19, 2013 8:47 pm
Moderator
Offline
User avatar

Age: 40

Posts: 2327

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Lol. We are all scratching our heads. :lol:



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Thu Sep 19, 2013 8:54 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

cool... no idea then...

I have very little experience with the physical parts of an AU... Just know the wiring that I'm putting into my car...

The globe I may have noticed when I was pulling things apart may have been in the AC button then... I have series 2 looms here... Stacks of difference between the series 1 and series 2 body looms I compared but...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Thu Sep 19, 2013 8:54 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

there is no light on demister button on au2..except for Fairmont/ghia
Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Thu Sep 19, 2013 8:56 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I was assuming he meant it illuminates with the parkers on? :?

Thats what I meant when I said the ED does... Button lights up so you can see it in the dark...

Now I'm really confused...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Thu Sep 19, 2013 8:57 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

haha... I'm an idiot... Now I read the first post again it makes more sense...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Fri Sep 20, 2013 12:19 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Thanks TimmyA, I'll look into it.

Troyman, mine is definitely AUII (Forte), June 2000.

When you press the demister button it does illuminate and also illuminates the demister icon in the cluster. When the button is depressed again, the button stops illuminating and demister icon in cluster is off.

Both buttons i.e. aircon and demister both light up orange when pressed down for power, when pressed again, light goes off.
Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Fri Sep 20, 2013 12:37 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

With the spare centre console panel I have from the wreckers, at the back there are 4 bulb holders, 3 white and one orange. The small orange bulb sits directly behind the aicon button.

Although there is no bulb holder directly behind the demister button, it too was illuminated when depressed. The light emitted is off white colour.

I pulled the control knobs off their respective spots and unclipped the thick clear plastic strip. The aircon and demister buttons cannot be removed unless the thick clear plastic is removed by sliding it from the buttons.

Demister button was definitely illuminated , for the past 2 years until 5 days ago. Even during daytime.

The only other time the centre console illuminates is when the headlight switch is on

Headlight switch is ruled out as the source of illumination
Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Fri Sep 20, 2013 10:37 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

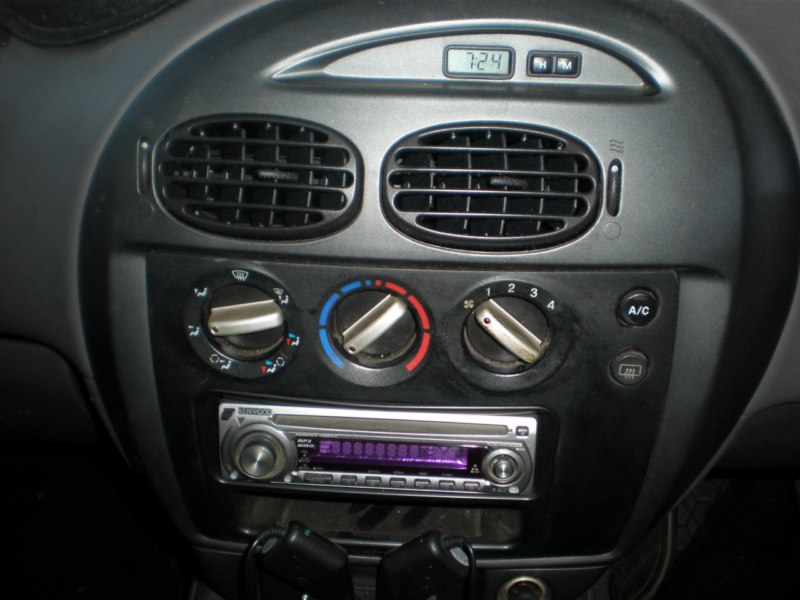

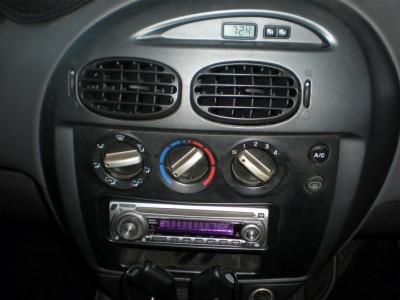

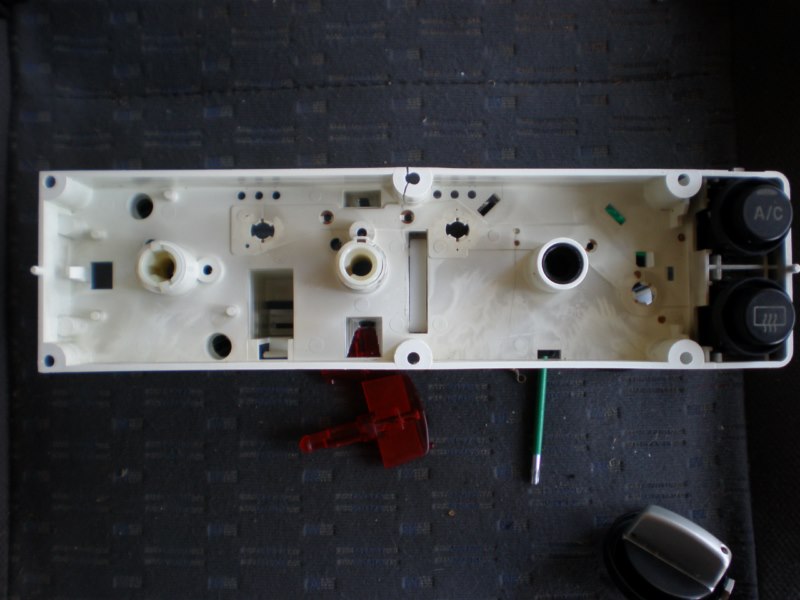

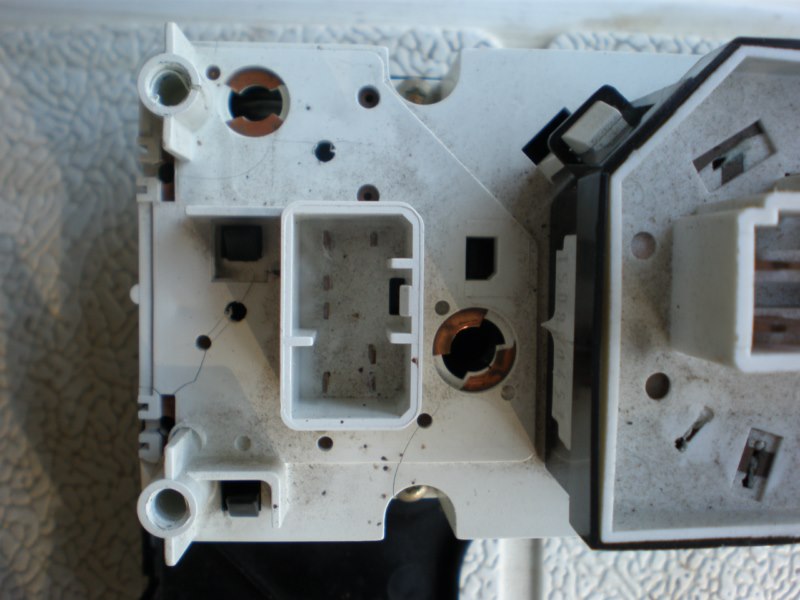

I have attached photos of console, as well as breakdown view of console.

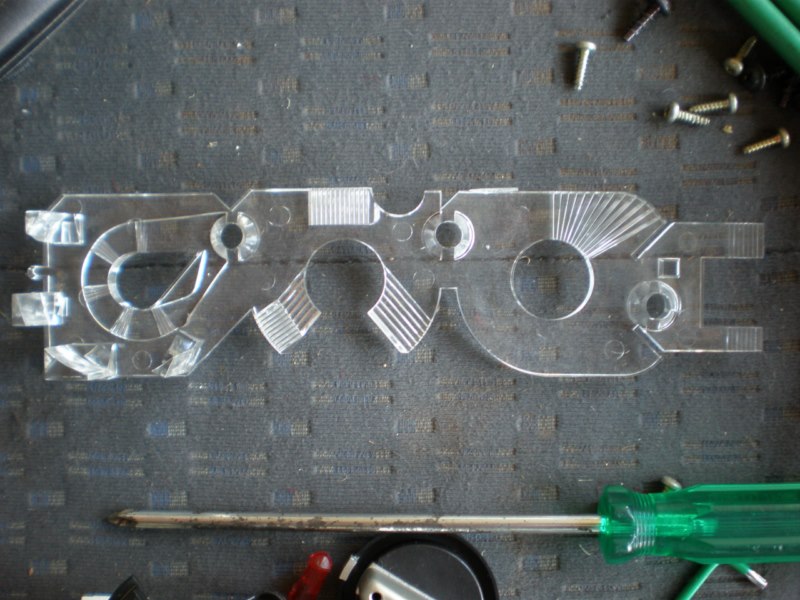

Thick plastic component, rear view where demister and Aircon button resides.

Note one globe sits directly inline with the aircon button.

There is no direct inline bulb where the demister button is located but is adjacent to it. I cannot explain how the light travels from that location directly to the demister button but it does light up inside the demister button.

I have not removed the console from my vehicle as yet as I'd like to get familiar with the console from an identical wrecked Ford AUII.

Maybe the console in my vehicle may not be AUII but of a different model. I believe they are interchangeable.

Cheers.





Attachments:
Skeleton view of console control bank (Copy).jpg
Skeleton view of console control bank (Copy).jpg [ 62.6 KiB | Viewed 65 times ]
Thick plastic insert , note far end strip (Copy).jpg
Thick plastic insert , note far end strip (Copy).jpg [ 99.07 KiB | Viewed 62 times ]
back of console where demister button located (Copy).jpg
back of console where demister button located (Copy).jpg [ 70.1 KiB | Viewed 66 times ]
Ford AUII Forte Console (Copy).jpg
Ford AUII Forte Console (Copy).jpg [ 72.39 KiB | Viewed 57 times ]
Top
 Profile


 Post subject: Re: Demister switch on console
Posted: Sat Sep 21, 2013 1:41 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

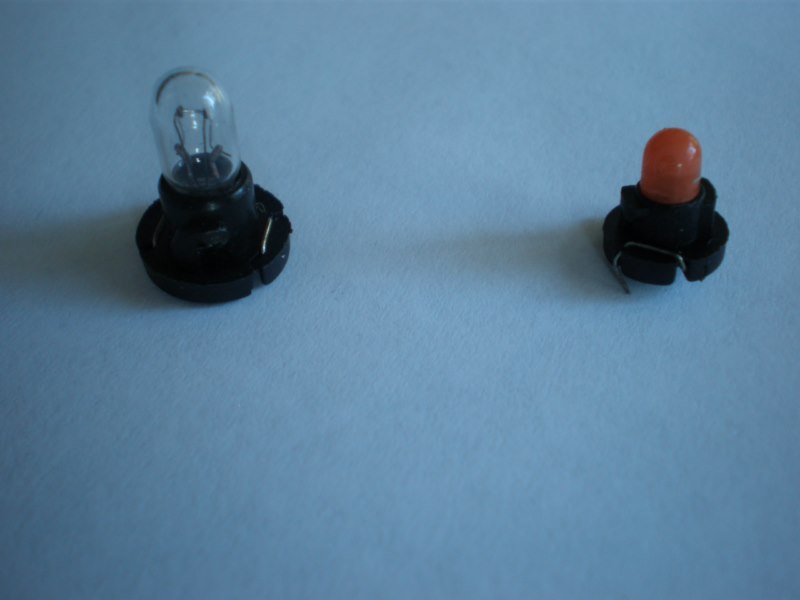

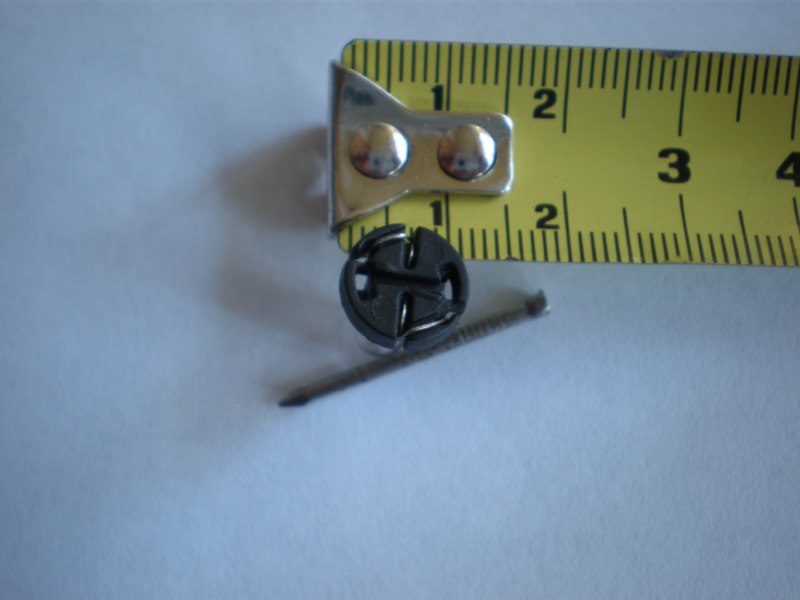

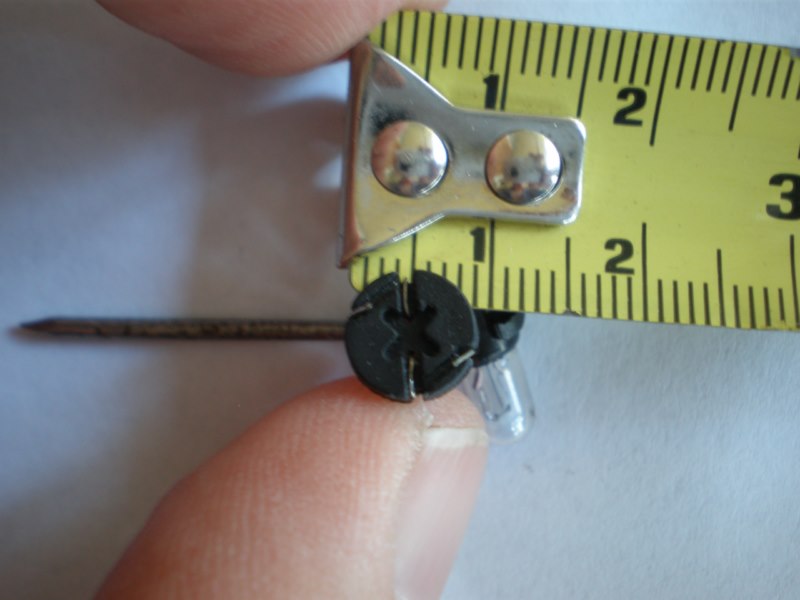

Here are the bulbs from the console.
