those manuals don't detail the sensor voltage.
it might be easier to think of it physically.
are they both hall effect?



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 20, 2013 10:27 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I just bought the manual from the site SWC posted... Best $21 I ever spent... Fantastic manual all bookmarked and hyperlinked and appears to be the genuine manual (at least it's all set out like the genuine manuals are)... Those guys did a fantastic job on the S2 manual...

Still I can't find a voltage anywhere... This is the most information I can find:

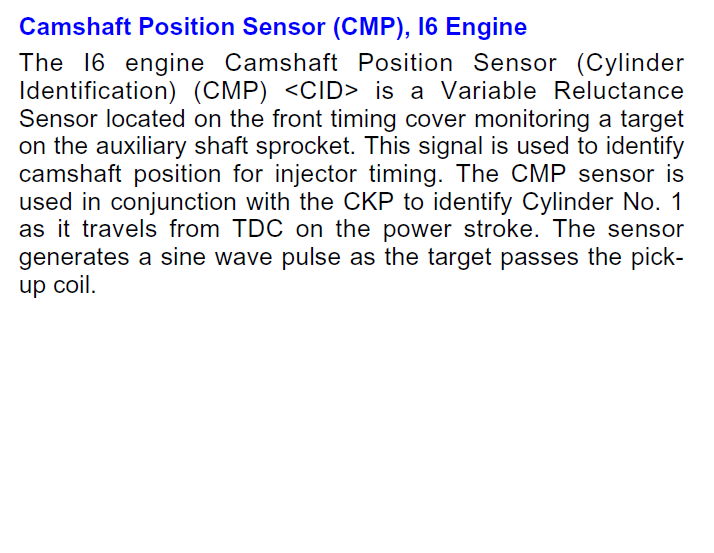

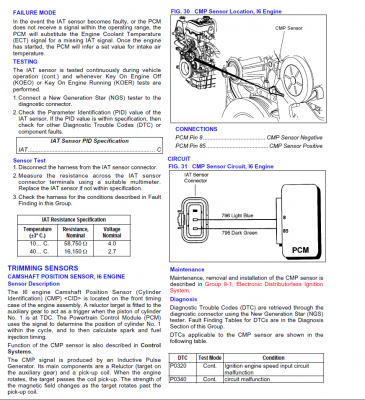

Attachment:
Untitled2.png [ 92.02 KiB | Viewed 48 times ]

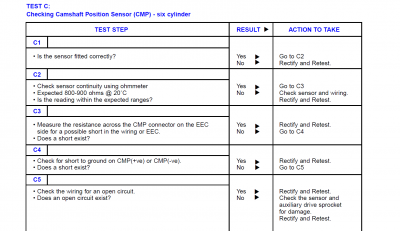

Attachment:
Untitled.png [ 200.05 KiB | Viewed 63 times ]

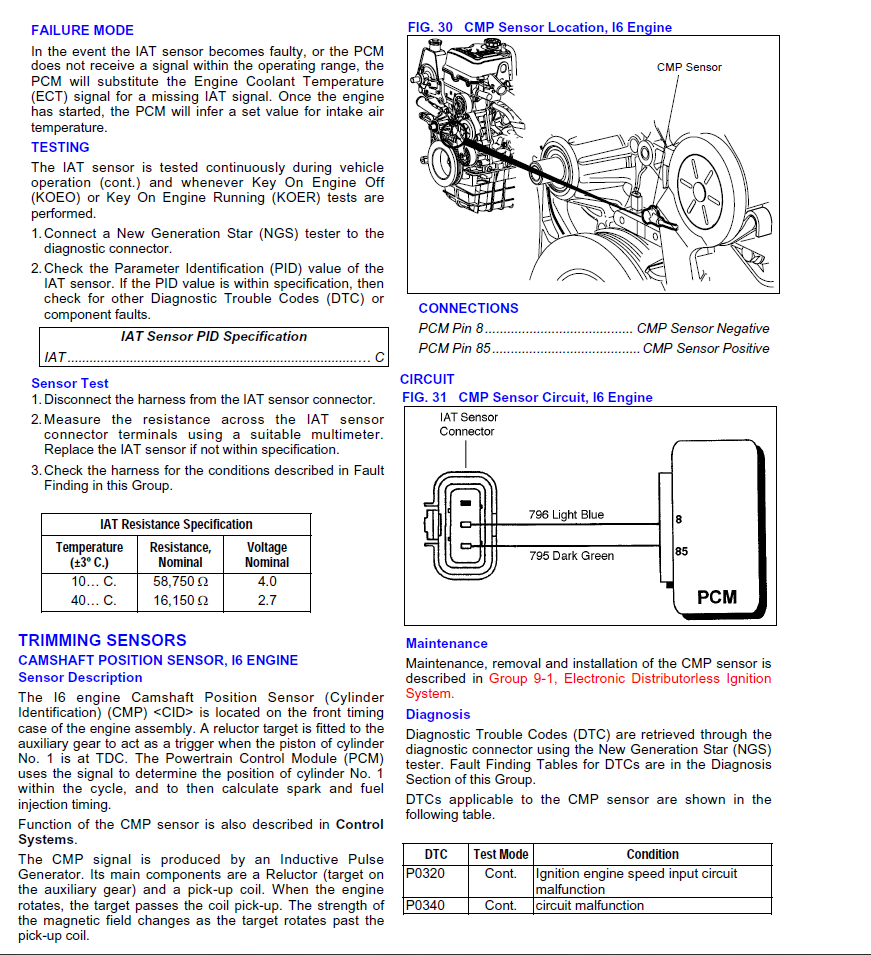

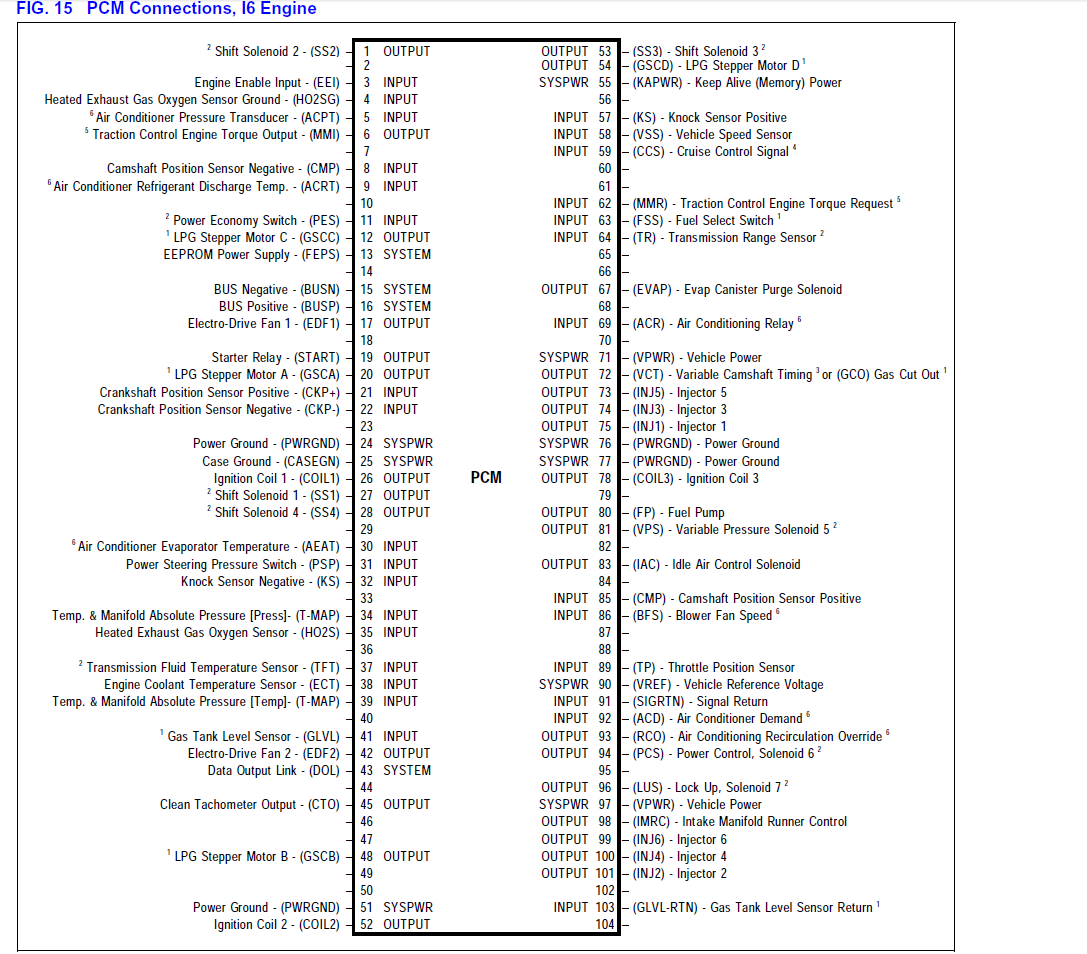

And this which may or may not help you for everything else

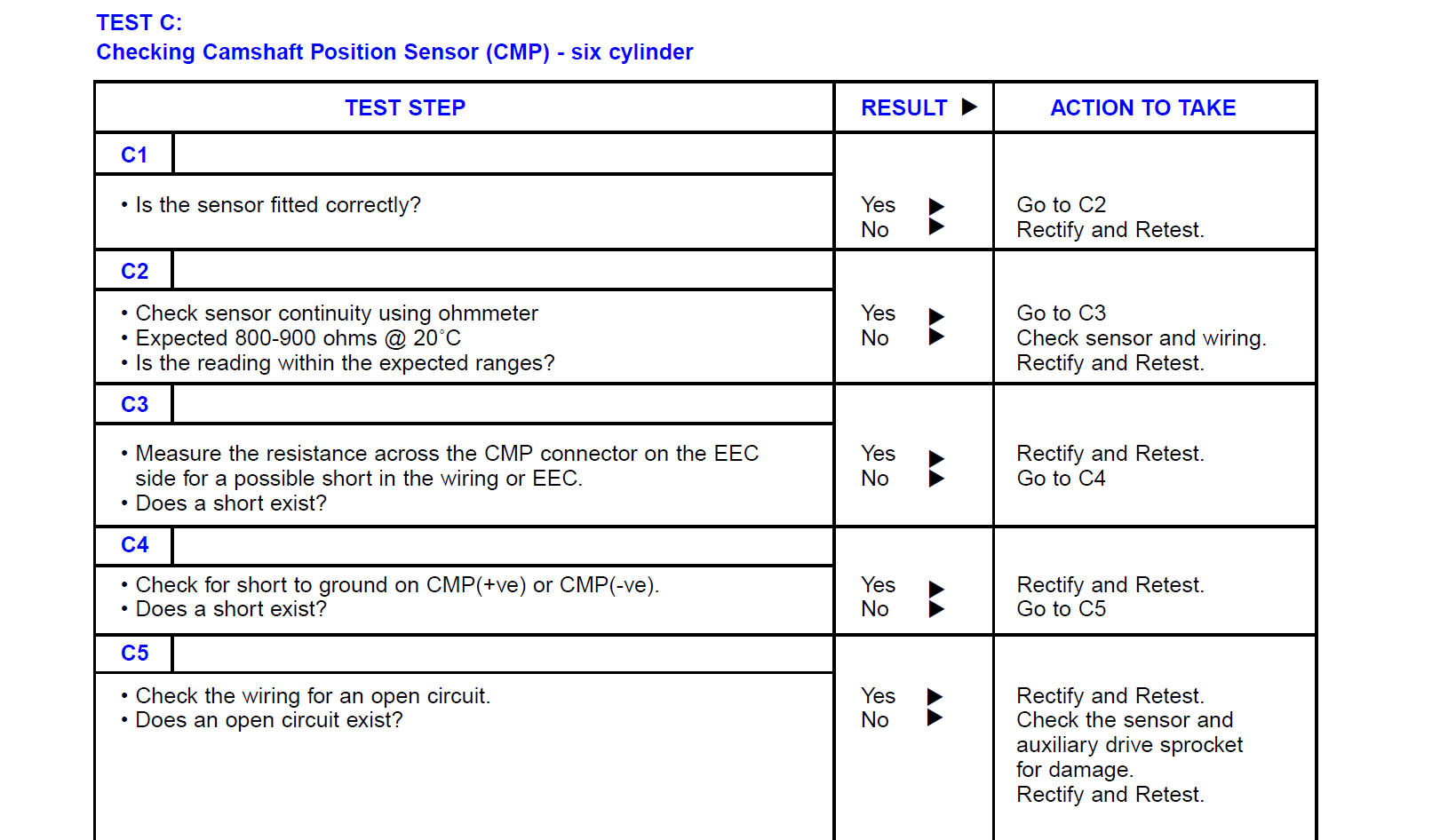

Attachment:
Untitled 1.png
Untitled 1.png [ 183.18 KiB | Viewed 41 times ]


If it's going to be in the book, where will it be?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 20, 2013 10:47 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

in that manual it says the CMP function is described in "control systems"
is there any more info there?
anyway, at least now we know its a VR sensor.
i believe the EF one is also, but i'll have to actually look into that.
if they are both VR sensors then they should have some give in what they look for as a trigger voltage and i believe they would be interchangable.

do you have a multimeter tim?



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 20, 2013 10:58 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Here is it's function from control systems:

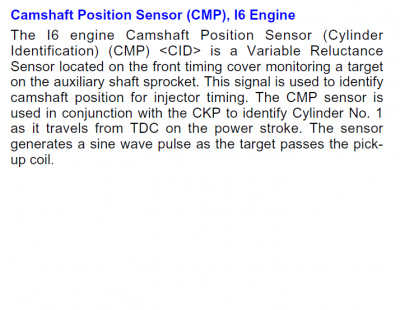

Attachment:
Untitled3.png [ 53.06 KiB | Viewed 54 times ]


Not very exciting...

Crankshaft sensor is... There is graphs and numbers and info on what the computer sees and outputs... And then Camshaft sensor basically says it's a cam shaft sensor...

Do I own a multimeter... That's a rude question to ask an electrician... :P I have myself a Fluke... :mrgreen:

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 20, 2013 11:01 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

haha sorry i asked :P

would you be able to measure it at the ECU? :D

the EF sensors is a hall effect sensor, i just checked it. i still think even if the voltages are different, as long as they're close it should be fine.
at least in this instance its only one tooth and a gap, rather than something that has alot of teeth, so the ECU is only looking for an either or value, not figuring out speed or such like some VR sensors are used for.



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 20, 2013 11:23 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Yeah no worries... So without me looking what am I measuring for? About 8VDC? And across the sensor or between one wire and earth or...? Engine Running and engine stopped values?

I'm away with work for a week but can do it next weekend...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Mon Oct 21, 2013 12:17 am
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

would be best to test it just at the pins.
pin 8 is negative
85 is positive

maybe also check against pin 91 as another earth which is signal return to see if its any different.
the value should be the same with its running or stopped, depending on where the reluctor is obviously lol.
we really have no idea how much voltage it will be but EF is approx 1v to 8v approx at either end of the scale.

thanks heaps mate :)



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sat Oct 26, 2013 3:20 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

When are you back timmy?



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sat Oct 26, 2013 5:37 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Back now... Will get onto it tomorrow...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Sun Oct 27, 2013 11:12 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

Howd ya go timmy



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Mon Oct 28, 2013 4:20 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Ah s**t... I knew I forgot something yesterday... :x geez my memory pisses me off sometimes.. I'm home Wednesday... Will attempt to do it Wednesday arvo...

Sorry man...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Wed Oct 30, 2013 3:17 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

just reminding you if you have time to check the sensor bud :P
ill check out those door sensors next time im at the wreckers.



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Wed Oct 30, 2013 10:08 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Well I checked...

Nothing really seems to happen with it...

Using DC volts between the legs of the sensor there is like 240mV and rolling the motor over with a breaker bar with the engine on doesn't change anything...

Between each leg and ground on DC Volts there was about 1.3 and again nothing changed when rolling the motor over...

Is the sensor not a switching type? Does it output a wave?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: EF vs AU cam position sensor
Posted: Wed Oct 30, 2013 10:31 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

Its variable relucrance so yes a wave beteen one value and another.

Was the engine running?
Did you test at the sensor or at the ecu pins and sure it was plugged in? Lol
