 Post subject: Re: ef xr8 low beam not working
Posted: Thu Jul 24, 2014 7:04 am
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

TimmyA wrote:

Ray you're saying Gli, Futura and XR all run H1 lows? Or all run both low and high beam relay when on high beam?

I don't have a genuine manual for the EL sorry Andrew... I have ED, AU and BF... None of them will help if Ray believes there is a difference between ED and EL XR wiring... On ED, that middle pin wire on the low beam runs through a diode link and back into the high beam wire... This way when high is on it back flows to low... But as far as EL goes maybe Ray has a diagram?

Cheers,
Tim

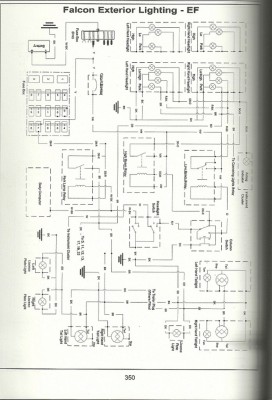

Tim, the supplied pics are from the factory EF/EL manual and only shows the Falcon/Fairlane/LTD wiring looms. check pic of headlight relays as it shows a link in falcon low beam and says its not there in the fairlane/ltd
Top
 Profile


 Post subject: Re: ef xr8 low beam not working
Posted: Thu Jul 24, 2014 5:34 pm
Oompa Loompa
Offline

Age: 43

Posts: 27

Joined: 10th Jul 2014

Ride: ef xr8

Location: callington
SA, Australia

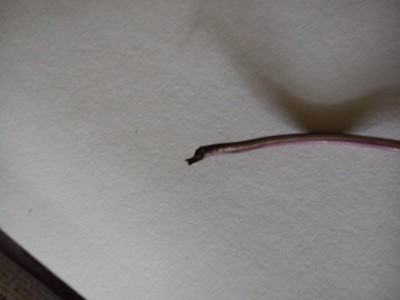

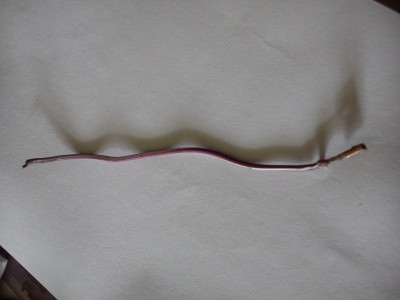

all right guys, I checked all violet and violet/white wires in both low n high beam relays, I had power to 3 but not the fourth and that was in the low beam relay, so I started to follow the wire and got about 6in from the bottom of the relay and found this. this is the violet/white wire for low beam and shows it had worn through and I didn't notice it as the plastic was holding it in place, so just joined in a new wire n feed it back into the relay and now have head lights working. all this s**t for what turns out a very simple problem. thanks everyone for all your help and suggestion. I also have the schematics drawing for the ef xr n el xr head lights if any one wants me to post them up let me know. cheers again guys





Attachments:
DSC_0064.jpg [ 262.29 KiB | Viewed 33 times ]
DSC_0063.jpg [ 279.84 KiB | Viewed 25 times ]
Top
 Profile


 Post subject: Re: ef xr8 low beam not working
Posted: Thu Jul 24, 2014 6:03 pm
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

andrewforbes03 wrote:
I also have the schematics drawing for the ef xr n el xr head lights if any one wants me to post them up let me know. cheers again guys



lol ... don't ya just hate that aye :roll:


are the drawings differant to the pics i put up??
Top
 Profile


 Post subject: Re: ef xr8 low beam not working
Posted: Thu Jul 24, 2014 10:30 pm
Oompa Loompa
Offline

Age: 43

Posts: 27

Joined: 10th Jul 2014

Ride: ef xr8

Location: callington
SA, Australia

hey mad 2, yep hate it, spent money on stuff that in the end I didn't need, but still happy its fixed.
the schematic's I have are a little different and if you hadn't posted that colour code chart id be stuck. so you have to use that colour chart with my schematic's and a big thanks to smokin em up that info about the relays was very helpful in fact everybody was helpful so thanks again guys.





Attachments:
File comment: el exterior lighting

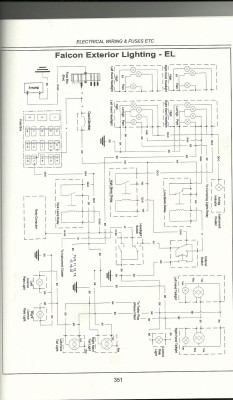

scan0002.jpg [ 475.27 KiB | Viewed 29 times ]
File comment: ef exterior lighting
scan0001.jpg [ 318.85 KiB | Viewed 27 times ]
Top
 Profile


 Post subject: Re: ef xr8 low beam not working
Posted: Fri Jul 25, 2014 7:24 am
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

not a problem :mrgreen:

saved ya pics ... only differance [quick glance] is yours doesn't show the full wiring for the low beam relay to the XR lights for low/high
Top
 Profile
