I've just checked mine, and it is definitely the right wire colours you've got.
On mine the pink/black has 12V with the ign to 'on'

The pink/black was the thickest of the pink wires.


You could check the wire continuity from the engine plug to the gearbox, and also bridge the connection on the other half to test the rest to the lights.

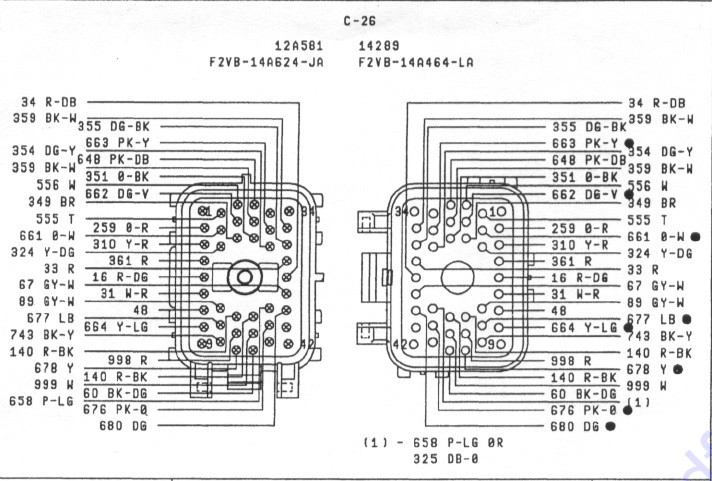

The pins you're looking for are 140 and 140 both R-BK (according to the diagram, yes both the same number)





Attachments:
C-26.jpg [ 136.24 KiB | Viewed 67 times ]



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

Ran the live wire and all is well and good, reverse lights on in reverse, and off in neutral,

Now i want to know.. can i temporarily do the dodgy and run the live wire to it for a few days till i can put it over the pit? Would it affect anything?



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 8:53 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

It should be fine, but at least put a fuse at the battery.
And don't park the car and leave it in reverse.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

MAD wrote:
It should be fine, but at least put a fuse at the battery.
And don't park the car and leave it in reverse.


Okay mate, sorry.. but what size fuse? A ordinary spade fuse will be fine yeah? I only have a spade fuse holder..



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Last edited by Falcon96XR6 on Tue Feb 25, 2014 9:53 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

10amp would be fine the same as the original reverse lamp fuse in the fuse block? Wouldnt it?



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 9:45 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Well, the fuse is there to protect the wire.
If you used the same size wire as factory, then yes, match the original.
If not, use a fuse that matches the wire.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

MAD wrote:
Well, the fuse is there to protect the wire.
If you used the same size wire as factory, then yes, match the original.
If not, use a fuse that matches the wire.


Alright thanks mate, as i said i dont know much about the electrical side of things ahah,
Ive now done it all and hidden the wire so it cant be seen, and put a 10amp use. The lights work when put in reverse, so im happy for now till i can put it over the pit at dads work, just gotta remember as you said.. the reverse lights stay on even when ign off lol..



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 9:57 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

And keep trying to find the problem....

Like you said, it only happened after the conversion, it must be something simple.


At least you know you've got the right R-BK wire on the switch.
Just need to confirm you've got the right pink one and go from there.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

MAD wrote:
And keep trying to find the problem....

Like you said, it only happened after the conversion, it must be something simple.


At least you know you've got the right R-BK wire on the switch.
Just need to confirm you've got the right pink one and go from there.


Yeah, it has to be the right pink one anyway, its the only wire left out of the 4 wire plug, im assuming the wire has just broken abit further up from when me and dad were soldering the resistors in, i just dont want to spend too much time under the XR with just a jack. You know? Safety and all. Lol :roll:



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 10:05 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Good idea. Jack stands are a must.
Or spare tyres under the wheels.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Tue Feb 25, 2014 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

MAD wrote:
Good idea. Jack stands are a must.
Or spare tyres under the wheels.


Thats a good idea.. old chaser rims would do the job yeah?

I usually put a few blocks under the chassis if i only need to lift one corner, and just rest the weight evenly on the blocks and jack.



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: el reverse lights
Posted: Sat Mar 01, 2014 12:08 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

Got it all sorted, the wire had snapped right up the top of the loom under the bulk plug, now i have reverse lights as per factory and now my ABS and airbag lights on the cluster have turned off too :o :D so bonus. Cheers everyone for the help, and information, muchly appreciated!
