 Post subject: explanation for odd ignition wire in au\ba\bf\fg
Posted: Mon Jan 05, 2015 6:32 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Hi folks,

I've been wondering what the purple wire with white trace is for in the ba/bf ignition wiring from the keybarrel. Looking inside the keybarrel, it looks like its supposed to feed a negative out when the key is in the starter position, though the few I tested appeared to have stopped doing that.
The FG column has an orange/white wire on it that does the same thing and the one I tested with my multimeter actually did feed out a negative when in the starter position.

The AU2 I tested also had this same design only the wire on the au ignition was green.

Anyone know what this design is for? Most of the au/ba/bf columns are not correctly feeding the earth out on start anymore. So I'd like to know what that is effecting.

Regards

Franki
Top
 Profile


 Post subject: Re: explanation for odd ignition wire in au\ba\bf\fg
Posted: Mon Jan 05, 2015 6:40 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 322

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

is that on pin 14 of the column plug? im looking in the haynes manuel shows that as a switched grounded/ bridged on start, dont tell me what it does but goes to terminal B2 on the cluster. manuel shows it as a orange output black from groundside want me to upload a pic of that page?

EDIT
looking at the diagram of the cluster that lists it as a v/w purple/white wire that connects to the brake fail light via brake fluid level sensor to the ign will upload a pic of both pages



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
1996 EF Falcon furura, White.
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: explanation for odd ignition wire in au\ba\bf\fg
Posted: Tue Jan 06, 2015 11:20 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Robert_au wrote:
is that on pin 14 of the column plug? im looking in the haynes manuel shows that as a switched grounded/ bridged on start, dont tell me what it does but goes to terminal B2 on the cluster. manuel shows it as a orange output black from groundside want me to upload a pic of that page?

EDIT
looking at the diagram of the cluster that lists it as a v/w purple/white wire that connects to the brake fail light via brake fluid level sensor to the ign will upload a pic of both pages


Don't know what pin on the plug it is except that its beside the big yellow wire on the bottom row. The schematic I got from AFF lists it as 976 and declares that its orange. (It probably is on the main loom side of the plug). Bridged ground sounds correct.. But why would brake fail need a separate feed from the ignition? It does make sense though.. I hooked it to permanent earth and the brake fail light came on.. Just seems an odd design. I'd love to see your scematic.. That'd be great. I just wired an FG column into my BA.
Top
 Profile


 Post subject: Re: explanation for odd ignition wire in au\ba\bf\fg
Posted: Tue Jan 06, 2015 11:35 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Robert_au wrote:
is that on pin 14 of the column plug? im looking in the haynes manuel shows that as a switched grounded/ bridged on start, dont tell me what it does but goes to terminal B2 on the cluster. manuel shows it as a orange output black from groundside want me to upload a pic of that page?

EDIT
looking at the diagram of the cluster that lists it as a v/w purple/white wire that connects to the brake fail light via brake fluid level sensor to the ign will upload a pic of both pages


Don't know what pin on the plug it is except that its beside the big yellow wire on the bottom row. The schematic I got from AFF lists it as 976 and declares that its orange. (It probably is on the main loom side of the plug). Bridged ground sounds correct.. But why would brake fail need a separate feed from the ignition? It does make sense though.. I hooked it to permanent earth and the brake fail light came on.. Just seems an odd design. I'd love to see your scematic.. That'd be great. I just wired an FG column into my BA, it's all working great.. But the voilet wire isn't currently hooked up. I think it just goes to the orange wire on the FG plug.. Negative bridged.. But verification would be great.
Top
 Profile


 Post subject: Re: explanation for odd ignition wire in au\ba\bf\fg
Posted: Tue Jan 06, 2015 11:53 am
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 322

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

No worries, my only guess for it being there is like a secondary test to show you that the light on the dash works, its sort of the only explination i can come up with, but still seems odd because all the lights light up when switched to ign to show they are working.

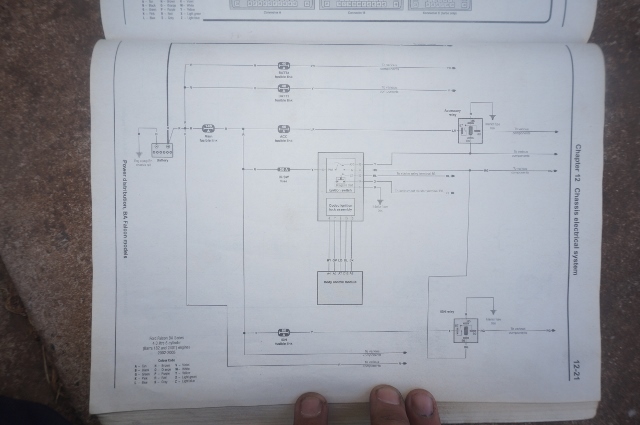

ign
Attachment:
File comment: ign
IGN(640x425).jpg [ 154.98 KiB | Viewed 136 times ]


Cluster
Attachment:
CLUSTER(640x425).jpg [ 170.71 KiB | Viewed 111 times ]


Hopefully these help and they are clear enough to read, there only taken out of the hanes manuel



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
1996 EF Falcon furura, White.
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: explanation for odd ignition wire in au\ba\bf\fg
Posted: Thu Jan 08, 2015 11:28 pm
Technical Contributor
Offline

Posts: 492

Joined: 13th Jul 2013

Location: Campbelltown
NSW, Australia

Brake fail warning light check circuit -

dash self test,lights warning light at key on -
ignition connection checks circuit to brake fail switch when cranking - dont no if it still is but was required for REGO inspection
