 Post subject: no ignition lights when key turned on
Posted: Mon Jun 23, 2014 9:57 pm
Fordmods Newbie
Offline

Age: 83

Posts: 14

Joined: 22nd Apr 2013

Ride: DL FORD LTD

Location: Mt Martha
VIC, Australia

Hi guys, my DL LTD won't start due to the ignition lights not coming on when key is turned on!! Normally a most reliable car till about a month ago when it refused to start even tho' i had just been using it 5 minutes before then i noticed the ignition lights weren't on. Had the RACV take a look, after checking all fuses etc they suggested i needed an auto electrician. Some time later i was tugging at the wiring running down the steering column and the ignition lights came on and the car started?? I've been using the car since, once or twice the car stalled but came good again by "playing" with the same wiring. Unfortunately after shopping i got into the car to head home but this time the car just won't turn on (no ignition lights) and even tho' the motor turns over there's no ignition. Got the car towed home and now looking for help in diagnosing the problem.
ANY SUGGESTIONS GRACIOUSLY APPRECIATED. :( :(
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Mon Jun 23, 2014 10:26 pm
Fordmods Junkie
Offline
User avatar

Posts: 3925

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia

sounds like 'maybe' a loose connection - what wire were ya reefing on??
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Mon Jun 23, 2014 10:36 pm
Technical Contributor
Offline

Posts: 556

Joined: 13th Jul 2013

Location: Campbelltown
NSW, Australia

remove shroud and push back of ignition switch while turned on- and see if you get warning lights - check pins in plug for ignition switch to verify not burnt -
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Mon Jun 23, 2014 10:57 pm
Fordmods Newbie
Offline

Age: 83

Posts: 14

Joined: 22nd Apr 2013

Ride: DL FORD LTD

Location: Mt Martha
VIC, Australia

Thanks for the responses guys, the wires i was tugging on were the ones connected to the ignition switch, the indicators and cruise control. I've removed the shroud and will try pushing the back of the ign sw in the morning and report back
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Tue Jun 24, 2014 8:13 am
Fordmods Newbie
Offline

Posts: 3

Joined: 24th Mar 2007

Location: adelaide
SA, Australia

this is quite common on ba and territorys and the back of the ignition switch falls out and some times it breaks a lug inside the switch then it feels like the switch wont return to the run position if you let go of the key (it will just stay in the crank position)
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Wed Jun 25, 2014 11:48 pm
Fordmods Newbie
Offline

Age: 83

Posts: 14

Joined: 22nd Apr 2013

Ride: DL FORD LTD

Location: Mt Martha
VIC, Australia

PROBLEM SOLVED THANKS
Opened up a couple of the connector plugs and had a look for anything out of the ordinary and found one of the male plugs had somehow lost a fair bit of it's length?? spread the male pins to increase their girth a little and plugged it all back again and all is back to normal for now. I'll have to replace the connector as i suspect the shorter pin will give me problems sooner or later?? Not going to be easy as the pins are a fixture on the wiring and there's very little free play length wise?? Will have to work out how to remove the pins from the block so i can replace at least one of them.
Anyway Thank You for the suggestions and encouragement it's most appreciated. I did try to include a couple of pics but had no success.
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Fri Jun 27, 2014 12:16 am
Technical Contributor
Offline

Posts: 556

Joined: 13th Jul 2013

Location: Campbelltown
NSW, Australia

possibly cut wires and solder together - use a piece of wire if necessary
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Fri Jun 27, 2014 8:11 am
Fordmods Newbie
Offline

Posts: 3

Joined: 24th Mar 2007

Location: adelaide
SA, Australia

if you can grip the terminal with a pair of fine pointy nose pliers you may be able to pull it back into place or you may be able to push the wire from the back and re locate the pin in the connector it should click into place. some of the connectors have a cover on the side to release the locksif you cannot get it back into place it may be worth trying to pry that loose first but if you take it out make sure you fit it back in firmly as you dont want this problem to reoccur , make sure you have good lighting in there to see exactly what you are doing
Top
 Profile


 Post subject: Re: no ignition lights when key turned on
Posted: Fri Jun 27, 2014 6:34 pm
Fordmods Newbie
Offline

Age: 83

Posts: 14

Joined: 22nd Apr 2013

Ride: DL FORD LTD

Location: Mt Martha
VIC, Australia

Attachment:
Connector Plug.jpg
Connector Plug.jpg [ 103 KiB | Viewed 244 times ]

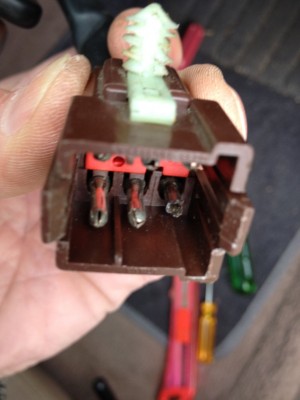

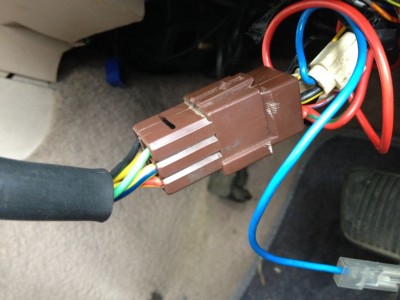

i've managed to attach 2 pics showing the offending connector and the damaged male pin inside. I've briefly tried to dislodge the shortened pin but without success, i'm planning to pick up a connector plug from the wreckers and have a "play" to better understand how to dismantle it, if any one has any suggestions or knowledge to share in this area it'll be most appreciated. The strangest thing is i have no evidence of the missing top section of the pin anywhere???
