 Post subject: Rectangular trailer plug
Posted: Fri Feb 08, 2013 11:26 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

G'day,

I have installed a rectangular trailer plug to my AU2 (Forte). I'm not sure if the wiring is correct as I was going on the colours from another vehicle.

I do not have a trailer to check to see if the wiring is correct.

Is there any way of checking / testing to see if the wiring is correct using a mulitmetre or similar?

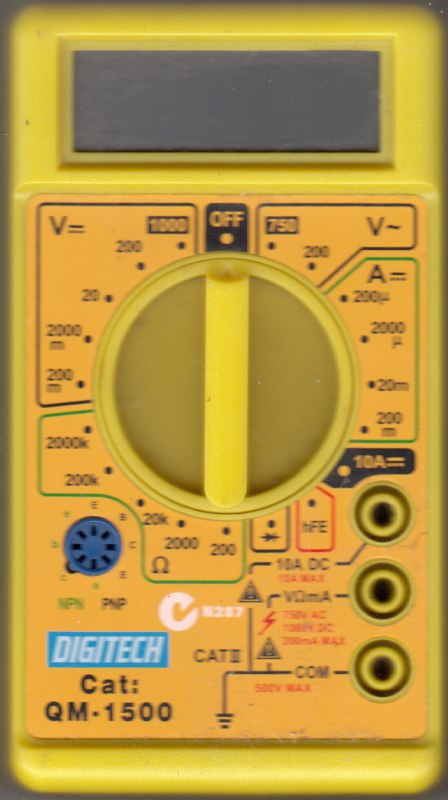

I have a Digitech Cat QM-1500 tester. Never came with operating instructions

See image of Digitech tester

Perhaps someone who is familiar with this device can let me know what setting to use.

Cheers, Peter





Attachments:
File comment: Digitech Cat: QM-1500 Tester
Digitech Cat QM 1500 [800x600].jpg
Digitech Cat QM 1500 [800x600].jpg [ 61.03 KiB | Viewed 149 times ]
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sat Feb 09, 2013 12:32 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Bump
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sat Feb 09, 2013 12:50 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

This might help. Trailer plugs are a standard. Get someone to switch the indicators, brake and tail light to make sure a voltage shows on your multimeter...stick the negative to the earth pin and just probe the positive on the pin you want to check on. Can also use a probe test light.

http://rvsupertramp.com.au/Articles/Tra ... ckets.aspx

EDIT: By the way, make sure you refer to the "SOCKET" image for your testing.

EDIT 2: Regarding the multimeter...I am pretty sure you use the 20V DC setting (point the dial to 20 on the left side of the circle). That should give you a reading when you test each light. I used a LED test light probe and when a signal is found the probe lights up...socket can only put out 12V so 20V setting is more than enough for a reading.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sat Feb 09, 2013 2:28 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Hello phongus,

Thanks mate, I appreciate your help on this topic. I'll gest someone to switch the indicators, brakes and tail lights.

I have two wires, one is black, the other red.

I assume the red wire is power + and the black as negative

I have three inserts to choose for these wires but not sure which one goes where.

Top Hole reads 10A DC
2nd Hole down reads V? mA with 750V AC 1000V AC and 200mA MAX in red writing
3rd Hole reads COM 500V MAX in red writing.

Would the black lead plug into the COM hole and Red lead plug into the 10A DC Hole?

Cheers, Peter
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sat Feb 09, 2013 8:31 am
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Black lead goes into common.
Red leads goes into V , Ohms and mA socket.
10A DC is for using it as an amp meter which will create a short circuit. You dont want that.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sat Feb 09, 2013 11:20 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

G'day EVL098,

Thanks for that, I was fiddling around with it late last night to see which one is the appropriate to use.

Thanks for confirming before I cause damage to the unit.

Cheers
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 12:02 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

I forget to ask this question.

When testing wires on the vechicle's trailer plug using a multimeter, is the earth lead from the multimeter grounded to a metal part of the car or does it go to the earth wire within the plug?

I dont have a trailer to check to see if the wires are correctly wired up or have power, hence the use of multimeter.

I have never used a multimeter previously, hence the question.

Cheers
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 12:17 am
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

I always use the earth at the plug. That way it makes sure yoi have earth there.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 1:33 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

ranga83,

Thanks mate, much appreciate your help on this.

I'll be checking it tomorrow.

I was going to tow a mates boat but could not do so until I find out if the trailer plug is working.

Cheers
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 4:23 pm
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

G'day again,

I've done a check on trailer plug wires using the multimeter, everything seems to have power. The Reversing Lights socket is a bit susc. I get a reading of 0.03 volts. Would this reading indicate a short or not a good connection somewhere?

I had checked the screws holding the wires in position, they look a bit rusty so I'm going to replace these with Stainless Steel.

Cheers
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 4:29 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

check the voltage at the wire when the plug is apart. if it is still low, i'd say you have a break in the wire



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Sun Feb 10, 2013 11:16 pm
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

ranga83,

Thanks for that advice, much appreciated.

Cheers
Top
 Profile


 Post subject: Re: Rectangular trailer plug
Posted: Mon Feb 11, 2013 9:54 am
Getting Side Ways
Offline

Age: 58

Posts: 1029

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

I pulled the plug apart today and tested the Reversing wire for power with a multimeter, reading returned 0.00 v

I'll be removing the lining covering the boot sides / floor to gain acess to the trailer wiring loom.

Obviously there is a break in the wire somewhere.

Does anyone know if Ford has a wiring harness with snap in connectors already wired as factory standard?

I purchased this car probably 3rd hand, looks like the wires have been played with.

Cheers, Peter
