Steering Wheel - Cruise Control Assembly AUII



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: Steering Wheel - Cruise Control Assembly AUII
Posted: Sun May 22, 2016 10:35 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Few days ago, the top cover case that covers the electronic switches on the cruise control had broken and can not be glued back.

I've taken another Steering Wheel with assembly of wrecked AUII.

Questions are:-

1. Can I just change over (replace) the damaged unit with the other one?

2. Do I need to replace the entire steering wheel with all of its sundries?

What precautionary steps (measures) do I need to take before attempting this job?

Thanks, Peter
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Sun May 22, 2016 11:02 pm
Getting Side Ways
Offline
User avatar

Posts: 2398

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

bondy99 wrote:
Few days ago, the top cover case that covers the electronic switches on the cruise control had broken and can not be glued back.

I've taken another Steering Wheel with assembly of wrecked AUII.

Questions are:-

1. Can I just change over (replace) the damaged unit with the other one?

A- as far as i know yes you can .... not sure if the AU1 controls are same tho

2. Do I need to replace the entire steering wheel with all of its sundries?

A- no ... no need to

What precautionary steps (measures) do I need to take before attempting this job?

A- disconnect battery & leave alone for 5/10 minutes, before removing steering wheel airbag. once airbag is removed you can change controls over. don't remember what the tool was called to remove airbag bolts - it's a specific tool.

Thanks, Peter



:mrgreen:
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Sun May 22, 2016 11:26 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Mad2,

Thanks mate.

I'll make sure I wait a bit longer in removing the airbag. Don't want the bugger to trigger hey!

Cheers
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 12:03 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Before I go ahead and make a C**k up of the steering wheel, does anyone know what the special tool is that's required to remove top part of steering hub to access cruise control assembly switch?

Don't want the airbags to explode.
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 12:20 pm
Technical Contributor
Offline

Age: 59

Posts: 6809

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Disconnect the battery for 5 mins and then remove the airbag. You will then be able to access the cruise control buttons.



_________________

SWC

South West Customs


Members of the SWC Stable, fordebgt93, TROYMAN, Benj, svo_matt, Mrs C, eb_fairmont, Total_tool, Terroristghia

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 12:24 pm
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 817

Joined: 12th Aug 2007

Gallery: 14 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

You'll need a Torx anti-tamper bit to remove the two screws holding the horn pad/air bag. These are located on either side of the steeting wheel, closest to the steering colum behind some plactic plugs. To save using the Torx bit again, a slot is cut in each screw so I can use a flat bladed screwdriver later. Carefully unplug the airbag after that (keeping your face away from it :shock: ).

Have you got a steering wheel puller? There are two holes to attach the puller to the steering wheel to. It won't come off easily otherwise.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 2:36 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

SWC,

Thanks, I waited an hour to be doubly safe.

********************************************************************************
Shortshift,

I did manage to find a 5 star Torx bit. T30. Good idea about making a slot. Might do that.

After looking at the wiring of the switches underneath the airbag on my AUII, the other wiring loom still attached to the spare steering wheel is slightly different. It came off a Ford, which model I could not say, I assumed all Ford Steering wheels were the same but apparently not so.

I then realised , yep, steering wheel has to come off prior to removing the screws attaching the casting of the wheel to the plastic so as to gain access to remove and replace wiring harness.

What brand or make of steering wheel puller would do the job?

Cheers
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 4:23 pm
Technical Contributor
Offline

Age: 59

Posts: 6809

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Is the new wheel off an AU?

You don't need a puller.

Loosen the torx bolt holding the sttering wheel on. Do Not Remove the bolt totaly but loosen off a few turns. Grap the wheel at 12 an 6 o'colock and pull/rock the wheel. It should come loose.



_________________

SWC

South West Customs


Members of the SWC Stable, fordebgt93, TROYMAN, Benj, svo_matt, Mrs C, eb_fairmont, Total_tool, Terroristghia

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 5:16 pm
Getting Side Ways
Offline
User avatar

Posts: 2398

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

bondy99 wrote:

After looking at the wiring of the switches underneath the airbag on my AUII, the other wiring loom still attached to the spare steering wheel is slightly different. It came off a Ford, which model I could not say, I assumed all Ford Steering wheels were the same but apparently not so.

I then realised , yep, steering wheel has to come off prior to removing the screws attaching the casting of the wheel to the plastic so as to gain access to remove and replace wiring harness.

Cheers



i'd hazard a guess & say it's an EF/EL if the switches are differant. steering wheels easy to take off. just do as SWC said & you will be fine. and yes the wheels are differant :lol: :mrgreen:
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 817

Joined: 12th Aug 2007

Gallery: 14 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

bondy99 wrote:
What brand or make of steering wheel puller would do the job?

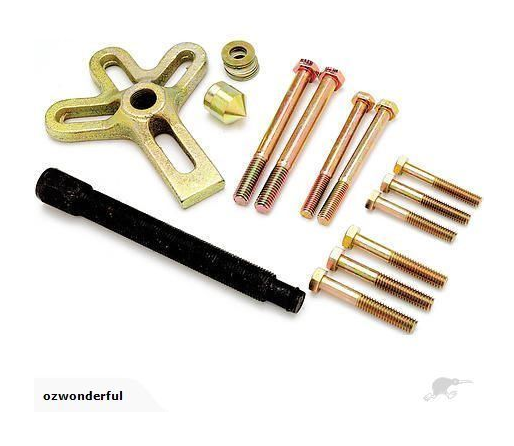

In case the steering wheel doesn't budge, here's what you'll need. All of the steering wheels, that I've removed, were a press fit and stuck tight since the day they left the factory. If you can't 'beg, borrow or steal' one, a cheap one will cost about $20 on eBay.





Attachments:
SWP.PNG [ 234.32 KiB | Viewed 40 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 9:19 pm
Technical Contributor
Offline

Age: 59

Posts: 6809

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Shortshift wrote:
bondy99 wrote:
What brand or make of steering wheel puller would do the job?

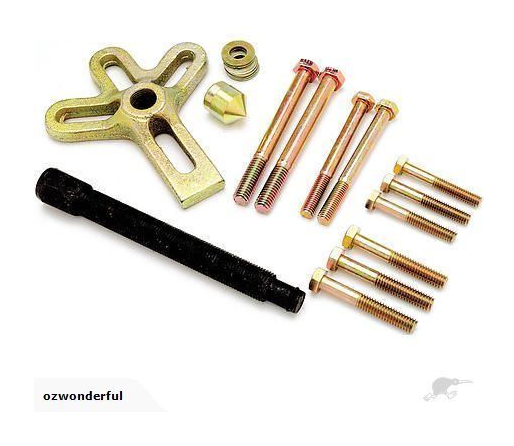

In case the steering wheel doesn't budge, here's what you'll need. All of the steering wheels, that I've removed, were a press fit and stuck tight since the day they left the factory. If you can't 'beg, borrow or steal' one, a cheap one will cost about $20 on eBay.


You must be unlucky, pulled a few of EF/EL, AU, BA and Territory and never had an issue.



_________________

SWC

South West Customs


Members of the SWC Stable, fordebgt93, TROYMAN, Benj, svo_matt, Mrs C, eb_fairmont, Total_tool, Terroristghia

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Thu Jun 02, 2016 10:36 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Shortshift and SWC,
Thanks for the further info and type of steering wheel pulley required.

There is a subtle difference with the wiring harness in the two steering wheels.

In the AUII, I have cruise control buttons on the right side and radio buttons on the left ( Seek, + and -). No horn buttons , yet the horn works if you press the central hub.


The other steering wheel has horn buttons on left and right side, cruise control buttons normal but is wired into the radio button on left side that only has two switches as opposed to three switches on the AUII.

Another question. Does the airbag really need to be replaced? Why I ask...writing on the back of the airbag enclosure said words to the effect "Replace after 10 years".

Vehicle built 2000, now its 2016. Any truth to this or still good as gold?

Cheers.
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Fri Jun 03, 2016 7:24 am
Technical Contributor
Offline

Age: 59

Posts: 6809

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

By your description, the steering wheel is off an EF/EL and are cruise control switches only. Left side is On/Off and right side is Set + - etc.

Air bag should be fine.



_________________

SWC

South West Customs


Members of the SWC Stable, fordebgt93, TROYMAN, Benj, svo_matt, Mrs C, eb_fairmont, Total_tool, Terroristghia

Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Fri Jun 03, 2016 7:24 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

SWC,

You are correct about the switches, so yes, it must have been off an EF/EL, did not take notice of the model at the time. I've already thrown it away.

I'll be doing so next week when I obtain the proper one from an AUII.

Thanks for letting me know about the Airbag.

Cheers
Top
 Profile


 Post subject: Re: Steering Wheel - Cruise Control Assembly AUII
Posted: Mon Jun 06, 2016 11:30 pm
Getting Side Ways
Offline

Age: 57

Posts: 909

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Update,

Went to wreckers to find if there were any intact steering wheels without wires cut...wishful thinking on my part.

Managed to locate couple of AUII vehicles, one was same year as mine, the other a year later.

Wires have been cut from the switches. Without causing hiccups, can wires be joined and soldered for those switches?

Unfortunately the steering wheel does need to come off to get access to the wires that run between the plastic backing and the metal part of the steering wheel

Cheers
