 Post subject: Subwoofer wiring
Posted: Wed Oct 29, 2014 7:25 pm
Fordmods Newbie
Offline

Age: 20

Posts: 6

Joined: 29th Sep 2014

Ride: Ford EF Fairmont

Location: Melbourne
VIC, Australia

Hi guys, im having trouble with sub wiring, i have never wired them before. I have power to the amp (i have checked there is power) have the sub to the amp and have the red and blue wires from the head unit too the amp... is there anything im missing?! I see slots that say REM and GND do i need something to those?

Thanks for any help
Top
 Profile


 Post subject: Re: Subwoofer wiring
Posted: Wed Oct 29, 2014 11:05 pm
Oompa Loompa
Offline

Posts: 34

Joined: 29th Oct 2014

Location: Launceston
TAS, Australia

Rem is remote. You should have a wire on the back of your head unit that is by itself and only gets power when the unit is turned on. If not find a wire that only gets power when the unit is turned and make sure it isn't a speak wire.
Gnd is ground. Use a wire the same gauge as your power wire and ground it to the body or run it back to your battery.
What are the red and blue wires for?
Top
 Profile


 Post subject: Re: Subwoofer wiring
Posted: Thu Oct 30, 2014 12:24 am
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

is it a kenwood deck? if so blue is signal (remote turn on) don't worry about running your ground back to the battery just earth it into the car (bolt it to something)

forgot!

your deck will have red and yellow. (may have this backwards) red is constant power and yellow is ignition on .... but yer its late and i may be the opposite way, its basically to keep the "the memory" on the deck.



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Subwoofer wiring
Posted: Thu Oct 30, 2014 1:18 am
Oompa Loompa
Offline

Posts: 34

Joined: 29th Oct 2014

Location: Launceston
TAS, Australia

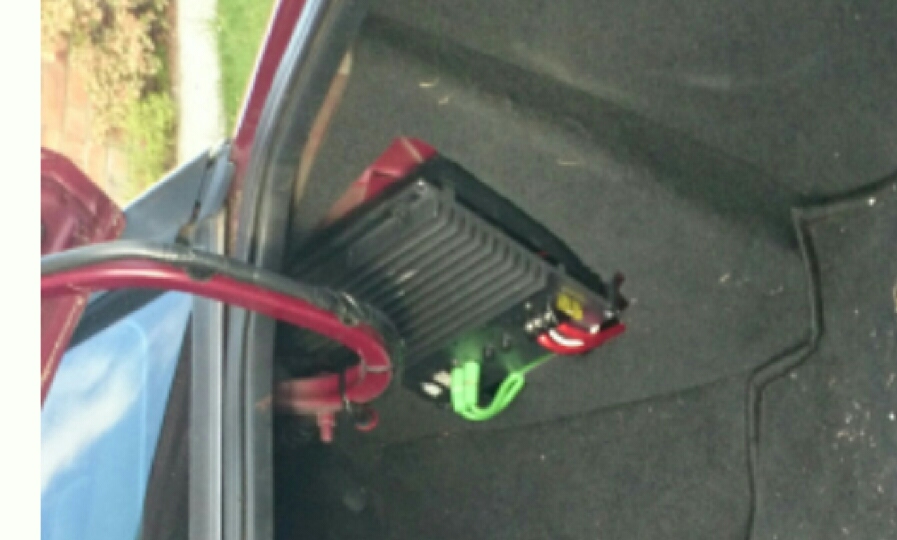

This is how my amp is wired up the red wire on the left is power, the white one is my remote wire that is connected to a blue wire on the back of my kenwood head unit (fullyforded the remote wire on the back is blue for kenwoods), the red one on the right is my ground that uses the bumper mount bolt, green ones are the left and right input that go to the back of my unit and my speaker wires are on the back of the amp. Hope I've helped you out.
