 Post subject: BA Falcon PCM/ECU Pin B30 Reverse Gear Sensor 140C Where???
Posted: Mon Feb 02, 2015 5:51 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys, just trying to sort out my reverse lights, but have no power coming off the white and red wire from the inhibitor switch-I checked my pinouts and there is a B30 pin reverse gear sensor 140C-but I'll be buggered if I can find it, any body know if this pin has any control of the reverse lights working,any help would be extremely helpful-will post up results once I've worked it out either way, cheers guys, Johnny.

p.s, forgot to mention this is in a XG Ute :shock:
p.p.s I probably should have put this in the auto trans section (honestly didnt know where to put it)
Edit:have adjusted the cable a few times to see if that was the problem but still no power-can someone verify if the reverse wires from the inhibitor switch are white and red/red and black, cheers, Johnny.

ok so the answer was the question, power comes from 30 on the ignition relay to the RB wire on switch and WR to the reverse lights





Attachments:

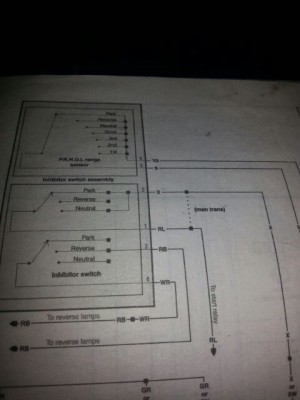

File comment: The two to reverse lamps WR & RB-No power from these two?
